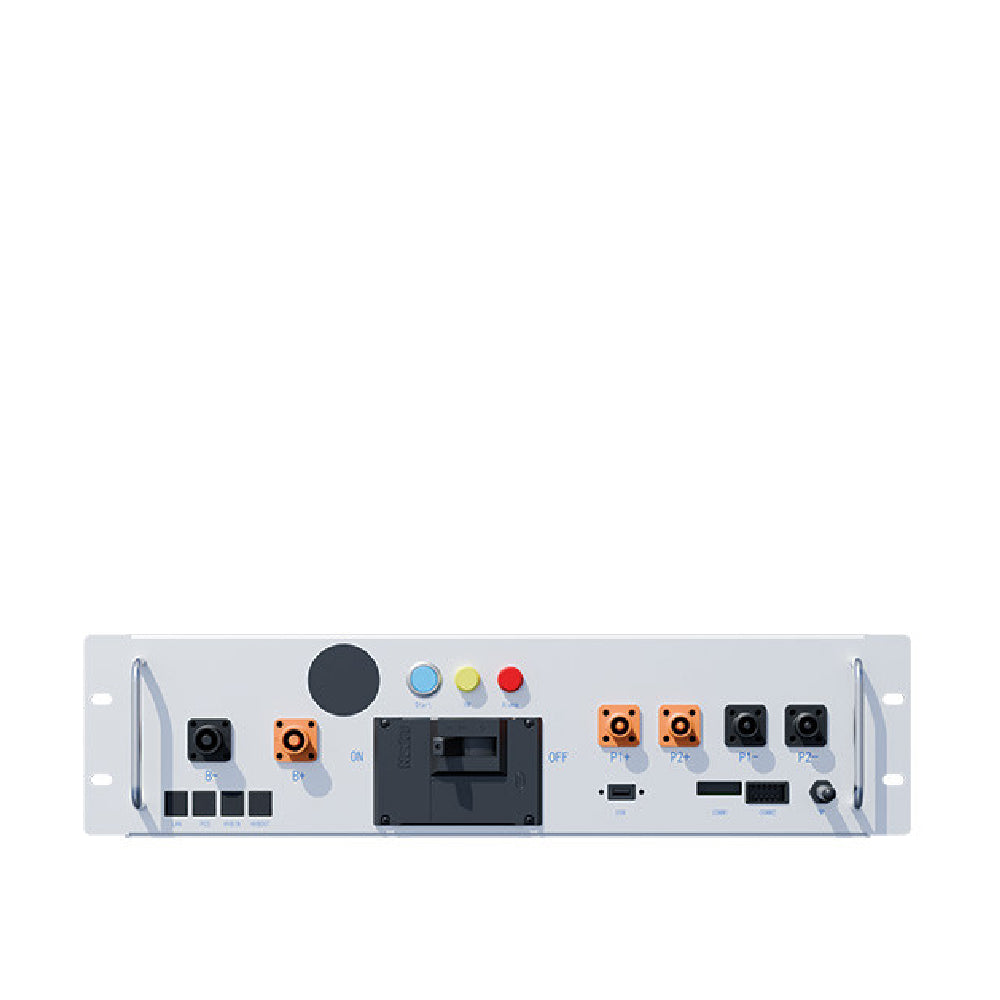

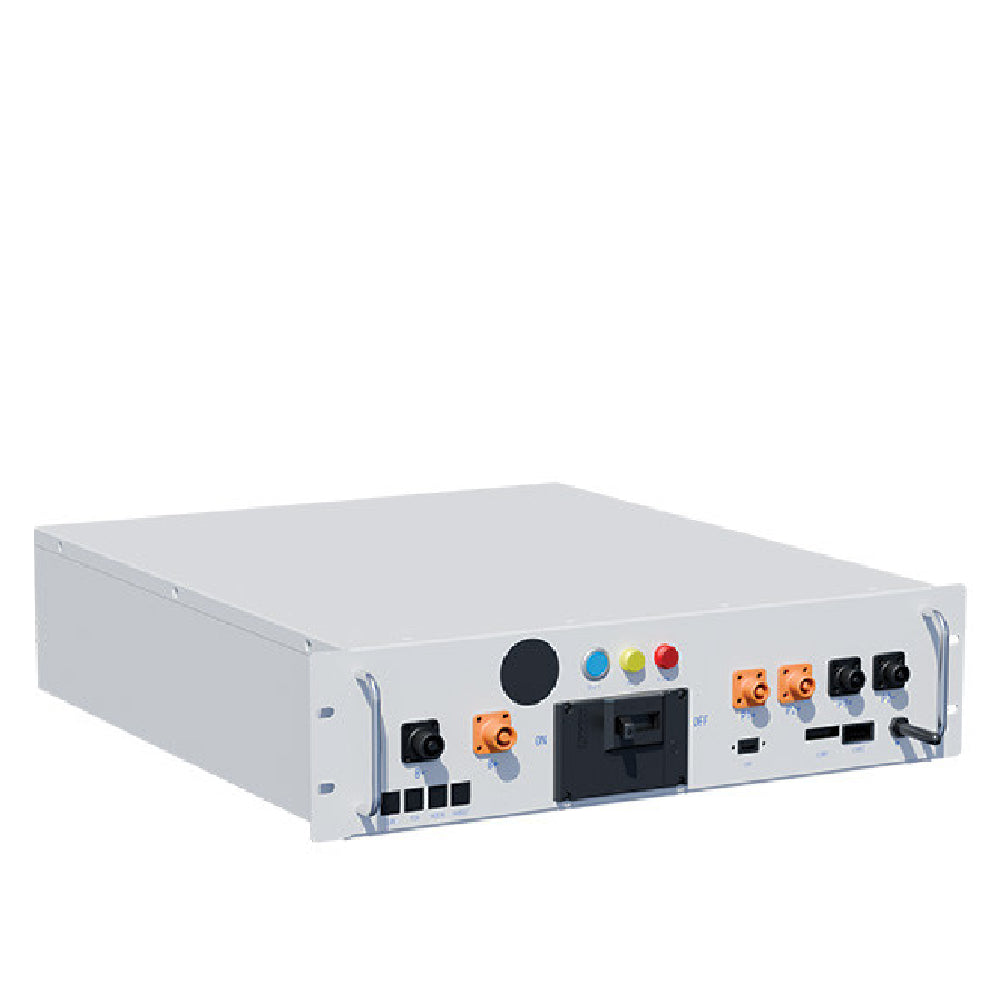

DEYE | BOS-A-PDU-2 | ESS HV | Battery Control Unit | BMS

Technical details
Producer - Deye
Model - BOS-A-PDU-2
MPN - BOS-A-PDU-2
EAN - 2000001411827
Product Line - BOS-A Series (High Voltage)
Product Type - Battery Control Unit (PDU/BMS)

Performance
Operating Voltage - 120–750 VDC
Nominal Charge/Discharge Current - 100 A
Max. Charge/Discharge Current - 125 A
Compatible Battery Modules - Deye BOS-G (5.12kWh modules)
System Configuration - Supports 3 to 12 battery modules per cluster

Features
Main Functions - Battery management, DC circuit breaker, pre-charge circuit
Protection - Overcurrent, overvoltage, under-temperature and short-circuit protection
Communication - CAN / RS485 / RS232
IP Rating - IP20 (Indoor installation)
Installation - Standard 19-inch rack mount design

Dimensions & Weight
Product dimensions - 57.0 x 44.0 x 15.0 cm
Weight (device) - 21.0 kg

Shipping Box
Dimensions - 73 x 65 x 26 cm
Weight (kit) - 30.0 kg
