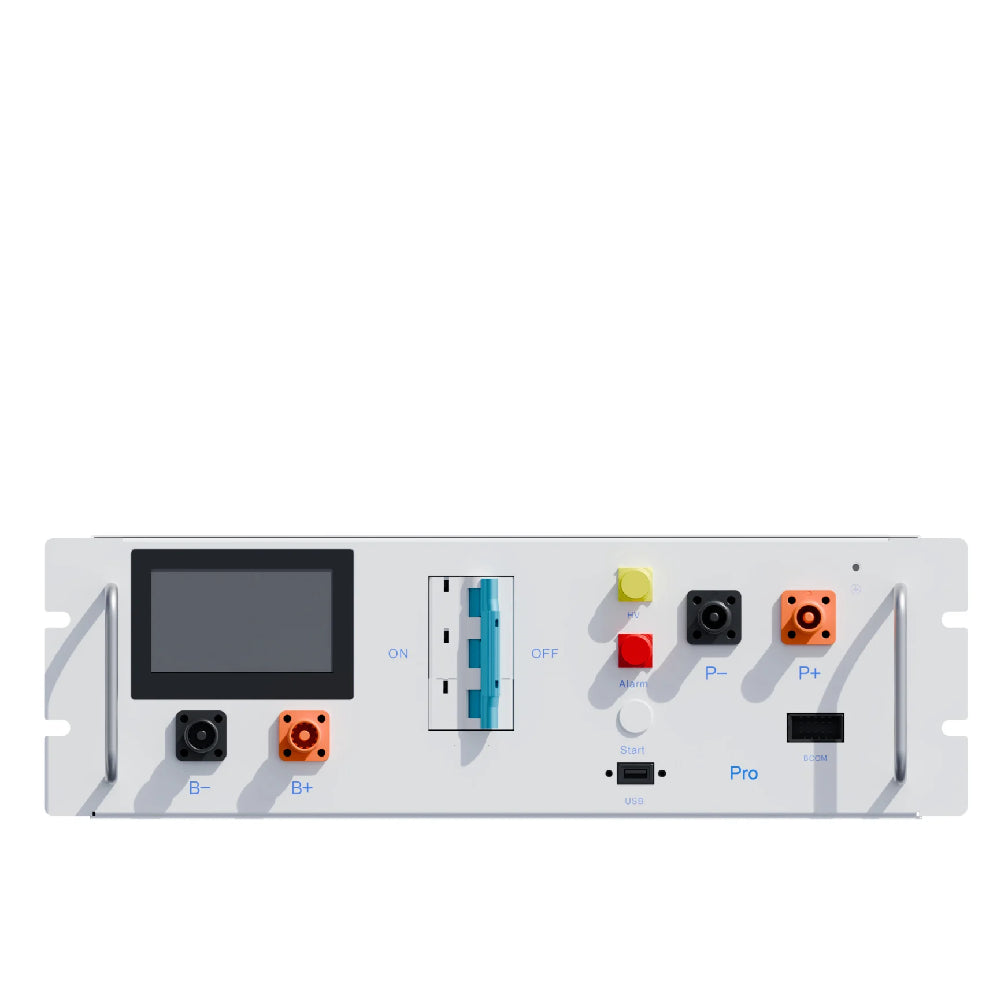

DEYE | BOS-G-PDU-2 | ESS HV | Battery Control Unit | PRO Series

Technical details
Producer - Deye
Model - BOS-G-PDU-2
MPN - BOS-G-PDU-2
EAN - 2000001396964
Product Line - BOS-G Series (High Voltage)
Product Type - Battery Control Unit (PDU/BMS)

Performance
Operating Voltage - 120–750 VDC
Nominal Charge/Discharge Current - 100 A
Max. Charge/Discharge Current - 125 A
Compatible Battery Modules - Deye BOS-G PRO (5.12kWh)
System Configuration - Supports cluster management for HV batteries

Features
Core Functions - Integrated DC circuit breaker, pre-charge circuit, BMS control
Safety - Monitoring of voltage, current, and temperature at the system level
Communication - CAN / RS485 / RS232 for inverter and system integration
IP Rating - IP20
Design - Standard rack-mount form factor for ESS cabinets

Dimensions & Weight
Product dimensions - 57.0 x 44.0 x 15.0 cm
Weight (device) - 19.0 kg

Shipping Box
Dimensions - 75 x 53 x 24 cm
Weight (kit) - 24.0 kg
