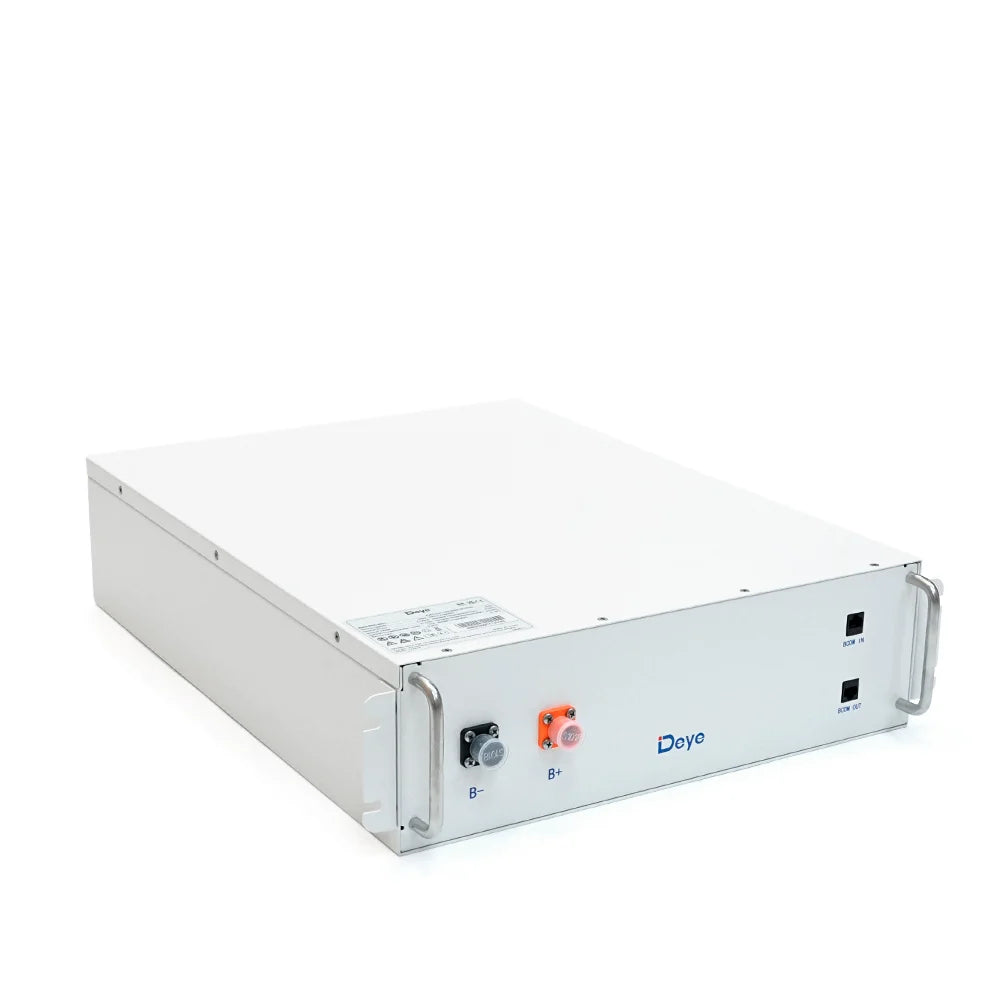

DEYE | BOS-G PRO | 5.12kWh | ESS HV Battery Module | LiFePO4

Technical details
Producer - Deye
Model - BOS-G PRO
MPN - BOS-G PRO
EAN - 2000001396940
Product Line - BOS-G Series (High Voltage)
Product Type - Lithium Iron Phosphate (LiFePO4) Battery Module

Performance
Battery Capacity - 5.12 kWh
Nominal Voltage - 51.2 V
Operating Voltage Range - 43.2–57.6 V
Nominal Charge/Discharge Current - 100 A
Max. Charge/Discharge Current - 125 A
Cycle Life - ≥6000 cycles (25°C, 0.5C/0.5C, 90% DOD, 70% EOL)

Features
Scalability - 3 to 12 modules per cluster (15.36–61.44 kWh)
Safety - Cobalt-free LiFePO4, built-in temperature and voltage monitoring
Mounting - Standard 19-inch rack installation
Application - High-voltage energy storage systems (ESS)
Certification - CE, IEC62619, UN38.3

Dimensions & Weight
Product dimensions - 57.0 x 44.0 x 15.5 cm
Weight (device) - 46.0 kg

Shipping Box
Dimensions - 74 x 53 x 22 cm
Weight (kit) - 49.0 kg
