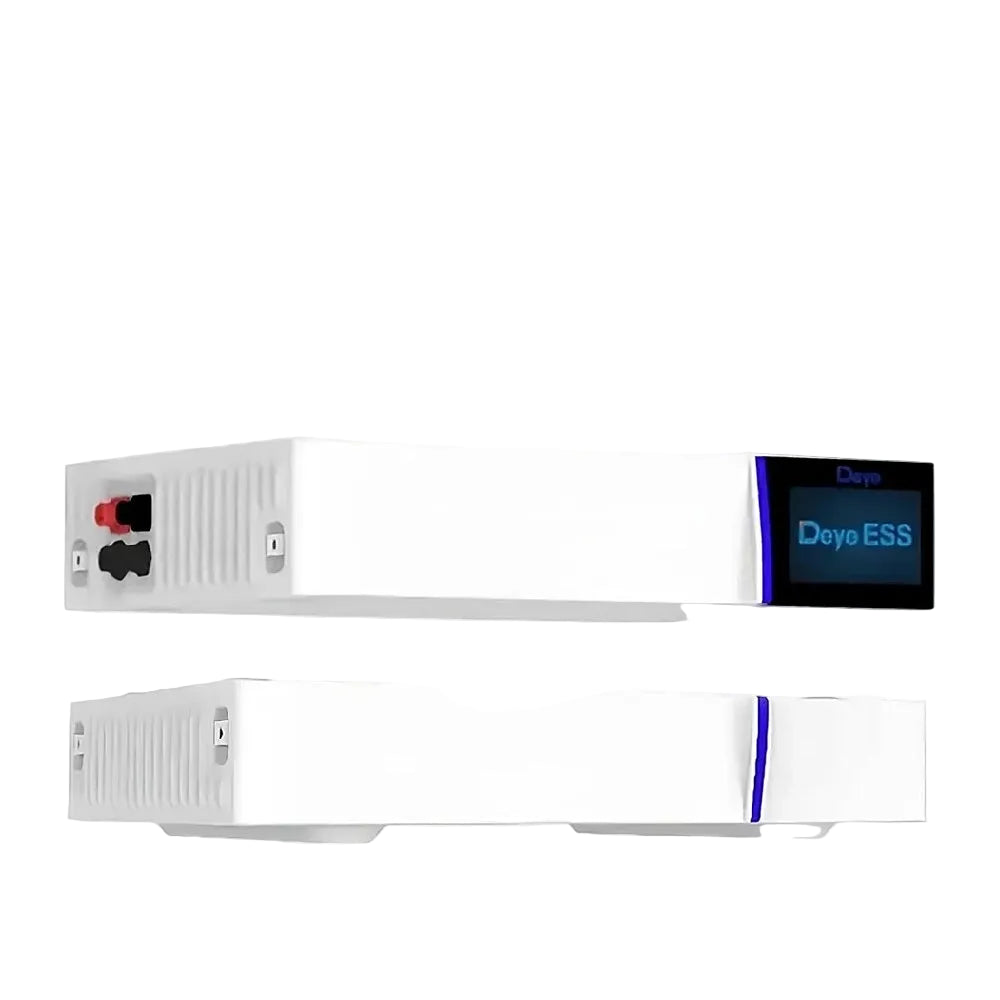

DEYE | GB-LBS+BASE | ESS HV | PDU + Base Support | Stackable Series

Technical details
Producer - Deye
Model - GB-LBS+BASE
MPN - GB-LBS+BASE
EAN - 2000001396933
Product Line - GB-L Series (High Voltage Stackable)
Product Type - Battery Control Unit (PDU) with Floor Base

Performance
Operating Voltage - 120–750 VDC
Nominal Charge/Discharge Current - 40 A
Max. Charge/Discharge Current - 60 A
Compatible Battery Modules - Deye GB-LB (High Voltage)
System Configuration - Supports 2 to 10 battery modules per stack

Features
Design - Stackable (tower) design, no internal wiring between modules needed
Components - Includes Top Control Unit (PDU) and Bottom Support Base
Main Functions - Integrated DC switch, BMS control, pre-charge circuit
Protection - Over-temperature, over-voltage, and short-circuit protection
IP Rating - IP65 (Suitable for outdoor or indoor installation)

Dimensions & Weight
Product dimensions - 54.0 x 38.5 x 21.0 cm
Weight (device) - 19.0 kg

Shipping Box
Dimensions - 64 x 45 x 32 cm
Weight (kit) - 24.0 kg
