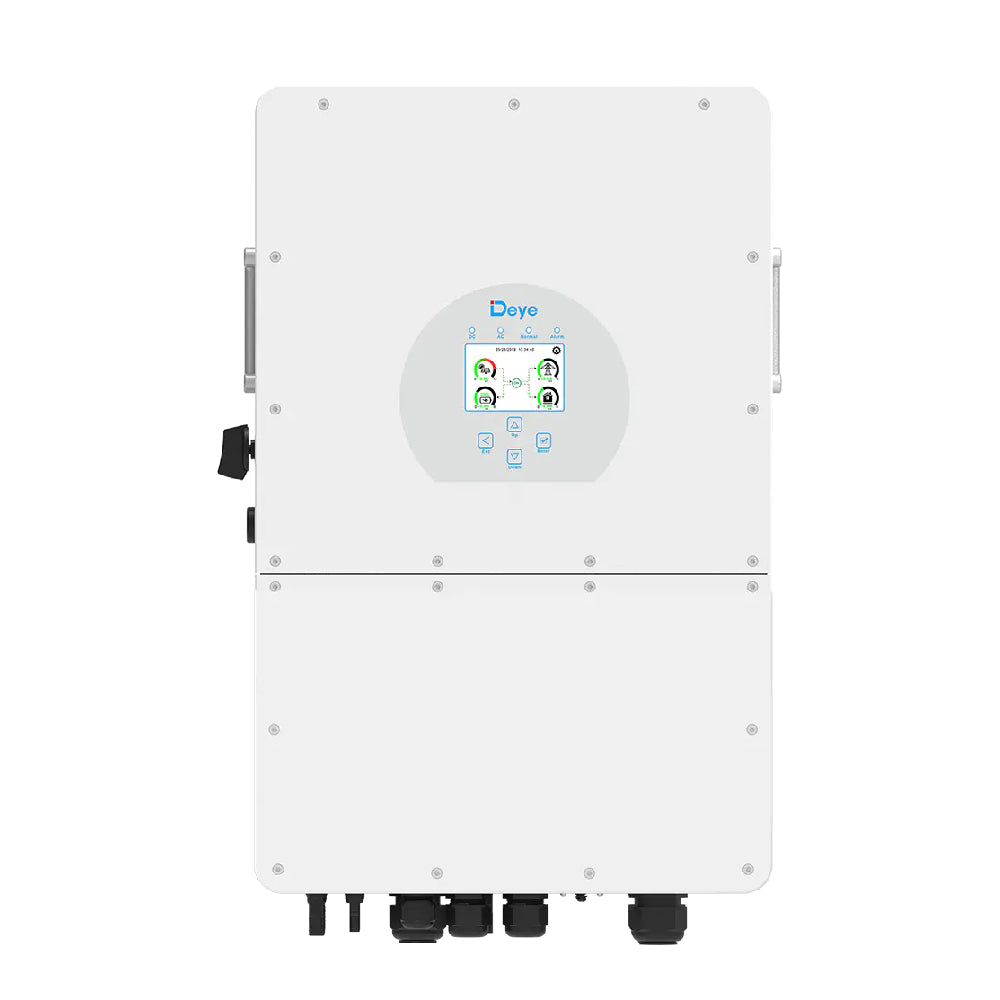

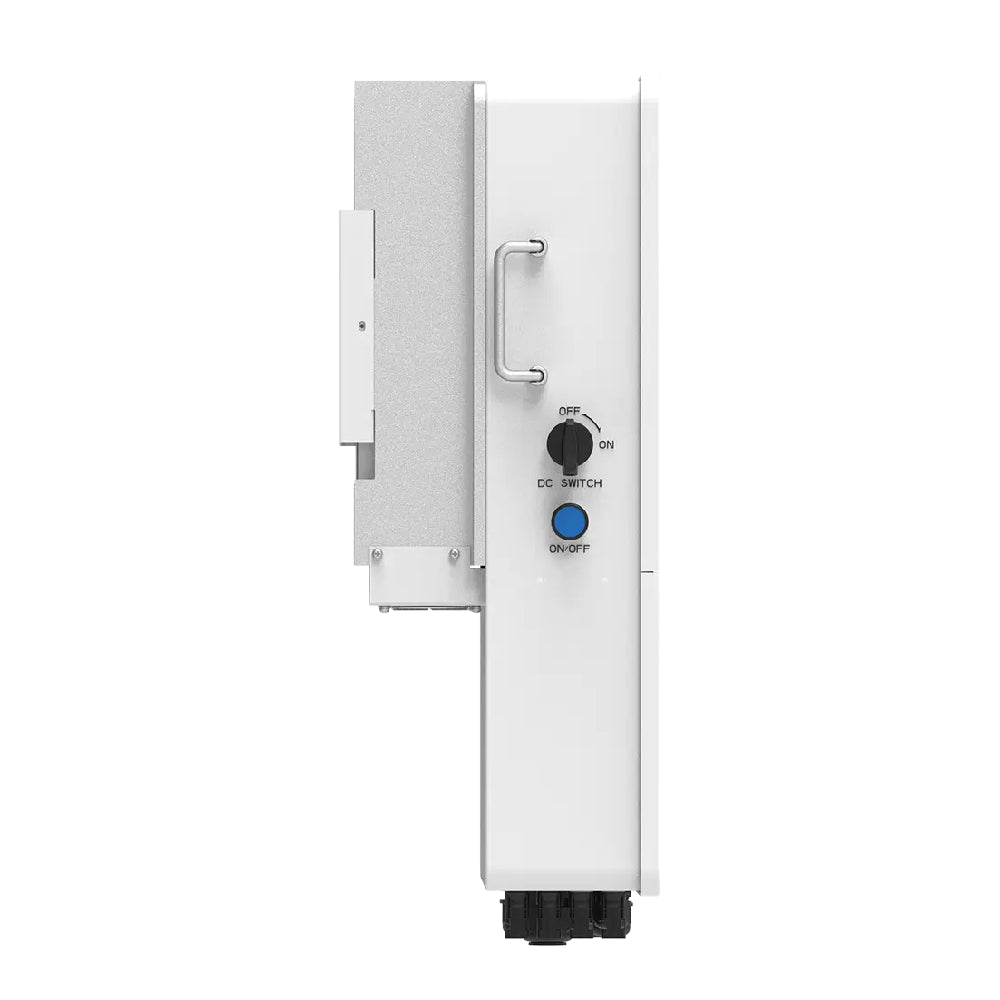

DEYE | SUN-12K-SG01HP3-EU-AM2 | 12kW | Hybrid HV Inverter | 3-Phase | 2 MPPT

Technical details
Producer - Deye
Model - SUN-12K-SG01HP3-EU-AM2
MPN - SUN-12K-SG01HP3-EU-AM2
EAN - 2000001398159
Product Line - Hybrid Series (High Voltage)
Product Type - Three-Phase Hybrid Inverter

Performance
Nominal output Power (AC) - 12000 W (12 kW)
Max. PV input Power (DC) - 15600 Wp
Max. PV input voltage - 1000 V
Number of MPPTs - 2 (2+2 strings)
Max. Efficiency - 97.6%
Euro Efficiency - 97.0%
Battery Voltage Range - 160–800 V (High Voltage)
Max. Charge/Discharge Current - 50 A + 50 A

Features
Battery Compatibility - High-voltage Lithium-ion batteries
Smart Management - Color touch LCD with user-friendly interface
Load Management - 100% unbalanced output, each phase
Parallel Capability - Support for up to 10 units in parallel
Smart Load - Programmable port for generator or smart loads
Durability - IP65 rated for outdoor installation

Dimensions & Weight
Product dimensions - 63.8 x 40.8 x 23.7 cm
Weight (device) - 30.5 kg

Shipping Box
Dimensions - 85 x 55 x 40 cm
Weight (kit) - 32.5 kg
