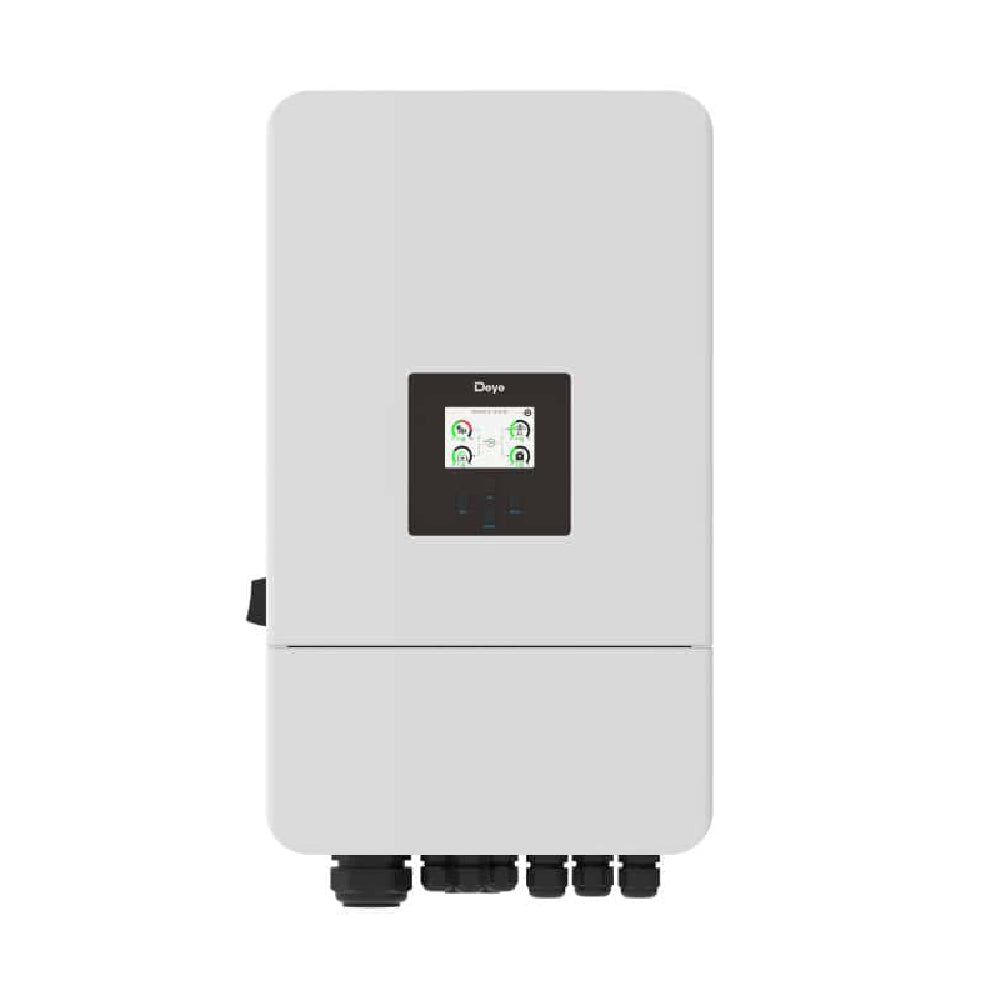

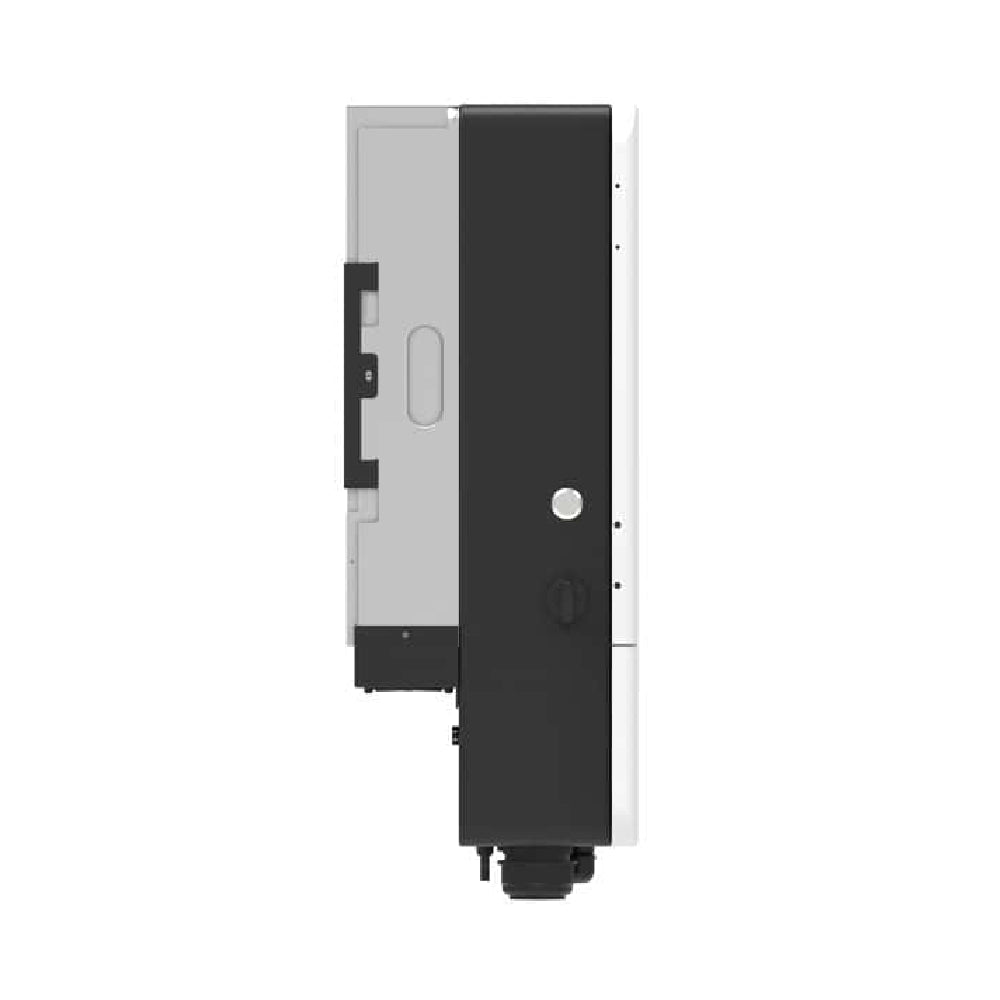

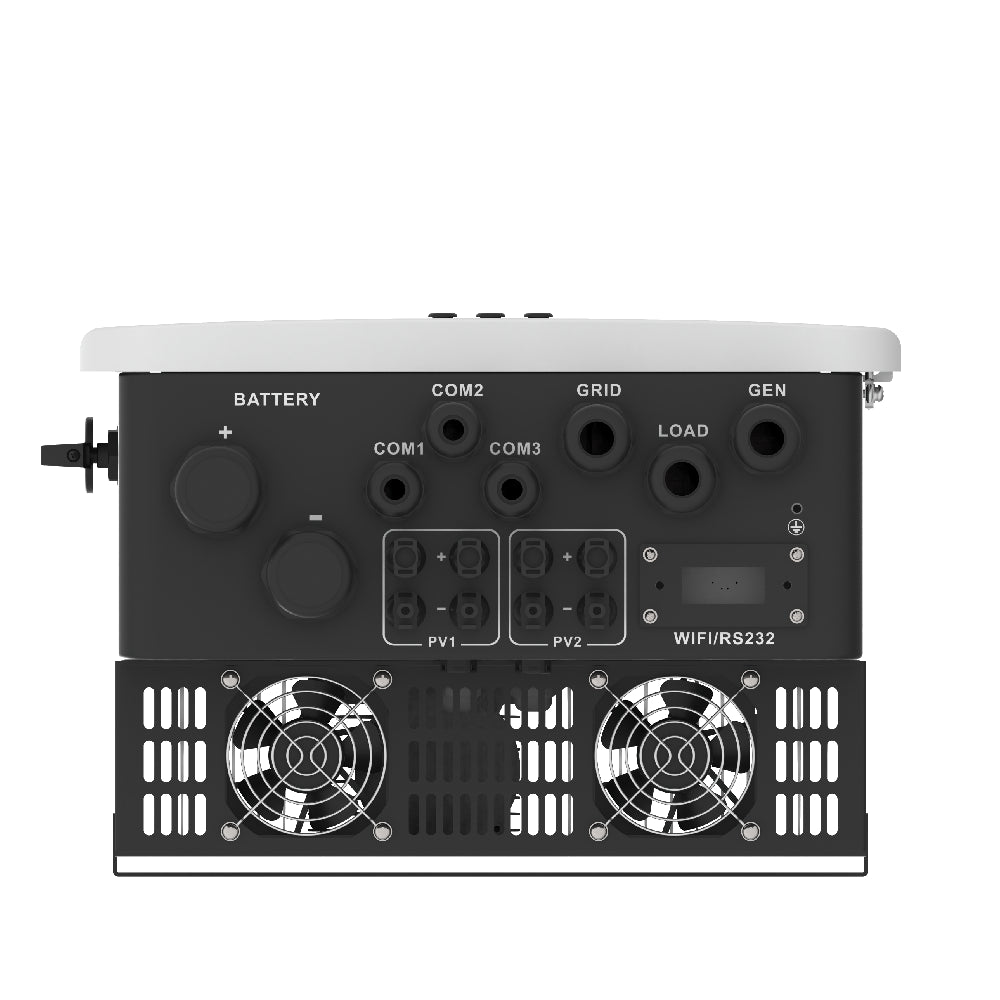

DEYE | SUN-12K-SG05LP3-EU-SM2 | 12kW | Hybrid LV Inverter | 3-Phase | 2 MPPT

Technical details
Producer - Deye
Model - SUN-12K-SG05LP3-EU-SM2
MPN - SUN-12K-SG05LP3-EU-SM2
EAN - 2000001396872
Product Line - Hybrid Series (Low Voltage)
Product Type - Three-Phase Hybrid Inverter

Performance
Nominal output Power (AC) - 12000 W (12 kW)
Max. PV input Power (DC) - 15600 Wp
Max. PV input voltage - 800 V
Number of MPPTs - 2 (2+1 strings)
Max. Efficiency - 97.6%
Euro Efficiency - 97.0%
Battery Voltage Range - 40–60 V (Low Voltage)
Max. Charge/Discharge Current - 240 A

Features
Battery Compatibility - Lead-acid or Lithium-ion (48V system)
Smart Load - Dedicated port for diesel generator or smart load management
Parallel Capability - Support for up to 10 units in parallel (on-grid/off-grid)
Protection - IP65, DC/AC Type II SPD, AFCI protection
Display - Colorful touch LCD for easy configuration

Dimensions & Weight
Product dimensions - 65.8 x 42.2 x 28.1 cm
Weight (device) - 35.2 kg

Shipping Box
Dimensions - 88 x 54 x 37 cm
Weight - 37.2 kg
