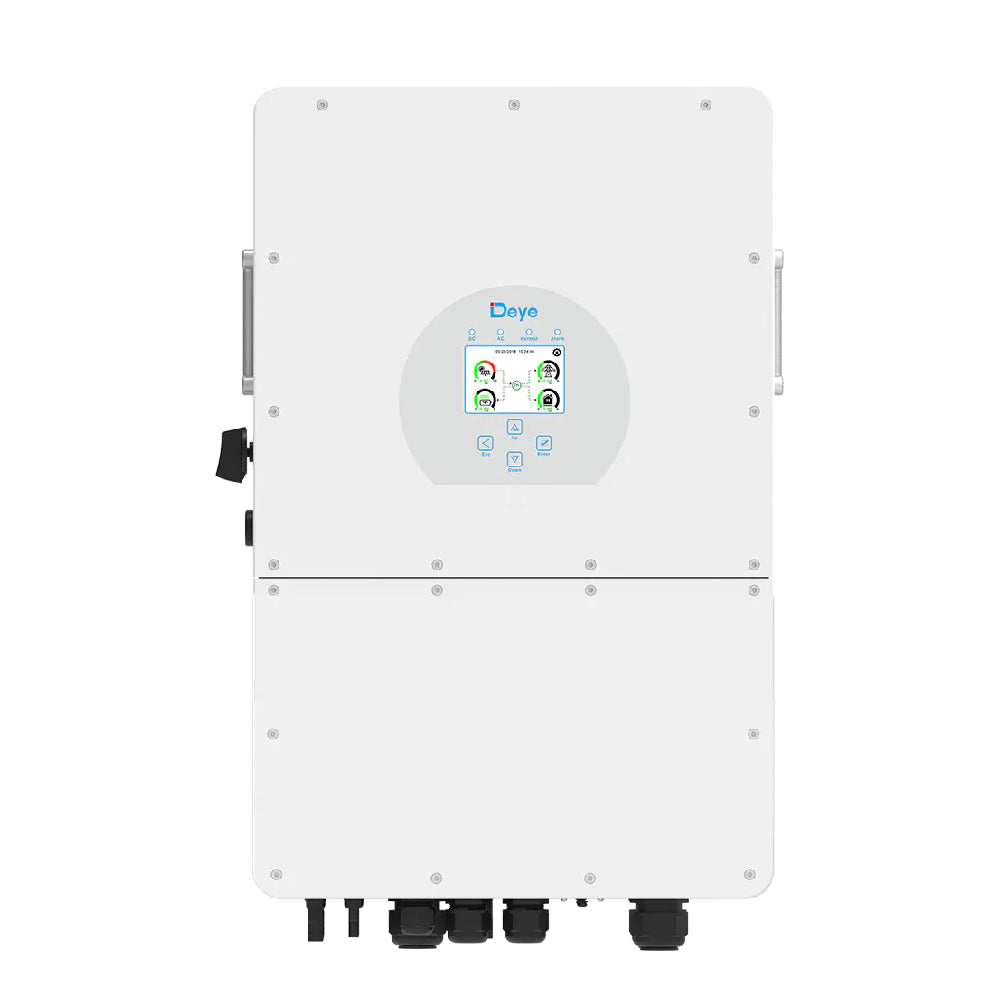

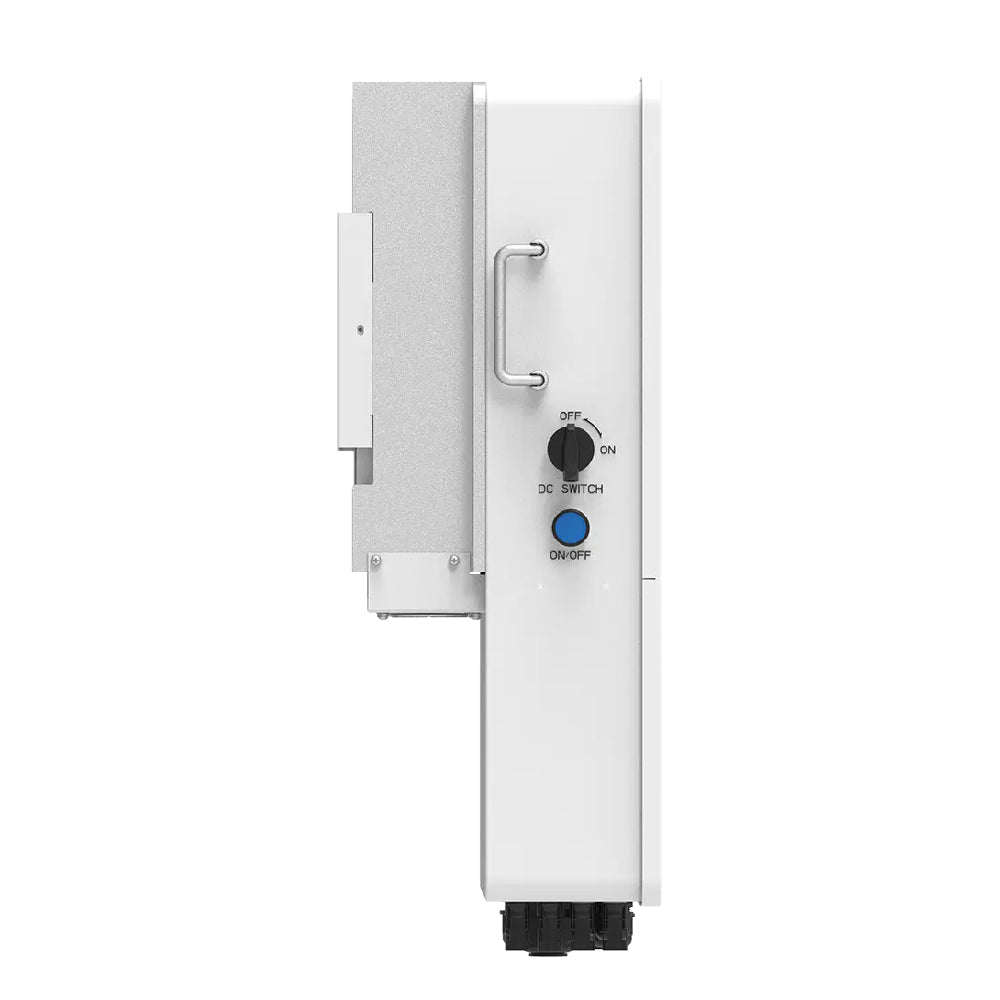

DEYE | SUN-15K-SG01HP3-EU-AM2 | 15kW | Hybrid HV Inverter | 3-Phase | 2 MPPT

Technical details
Producer - Deye
Model - SUN-15K-SG01HP3-EU-AM2
MPN - SUN-15K-SG01HP3-EU-AM2
EAN - 2000001396902
Product Line - Hybrid Series (High Voltage)
Product Type - Three-Phase Hybrid Inverter

Performance
Nominal output Power (AC) - 15000 W (15 kW)
Max. PV input Power (DC) - 19500 Wp
Max. PV input voltage - 1000 V
Number of MPPTs - 2 (2+2 strings)
Max. Efficiency - 97.6%
Euro Efficiency - 97.0%
Battery Voltage Range - 160–800 V (High Voltage)
Max. Charge/Discharge Current - 50 A + 50 A

Features
Battery Compatibility - High-voltage Lithium-ion batteries
Smart Management - Color touch LCD, RS485/CAN/Wi-Fi/GPRS
Load Management - Supports unbalanced load on each phase
Parallel Capability - Supports up to 10 units in parallel
Efficiency - High-voltage system reduces cable losses and improves cycle efficiency

Dimensions & Weight
Product dimensions - 63.8 x 40.8 x 23.7 cm
Weight (device) - 30.5 kg

Shipping Box
Dimensions - 85 x 55 x 39 cm
Weight - 32.5 kg
