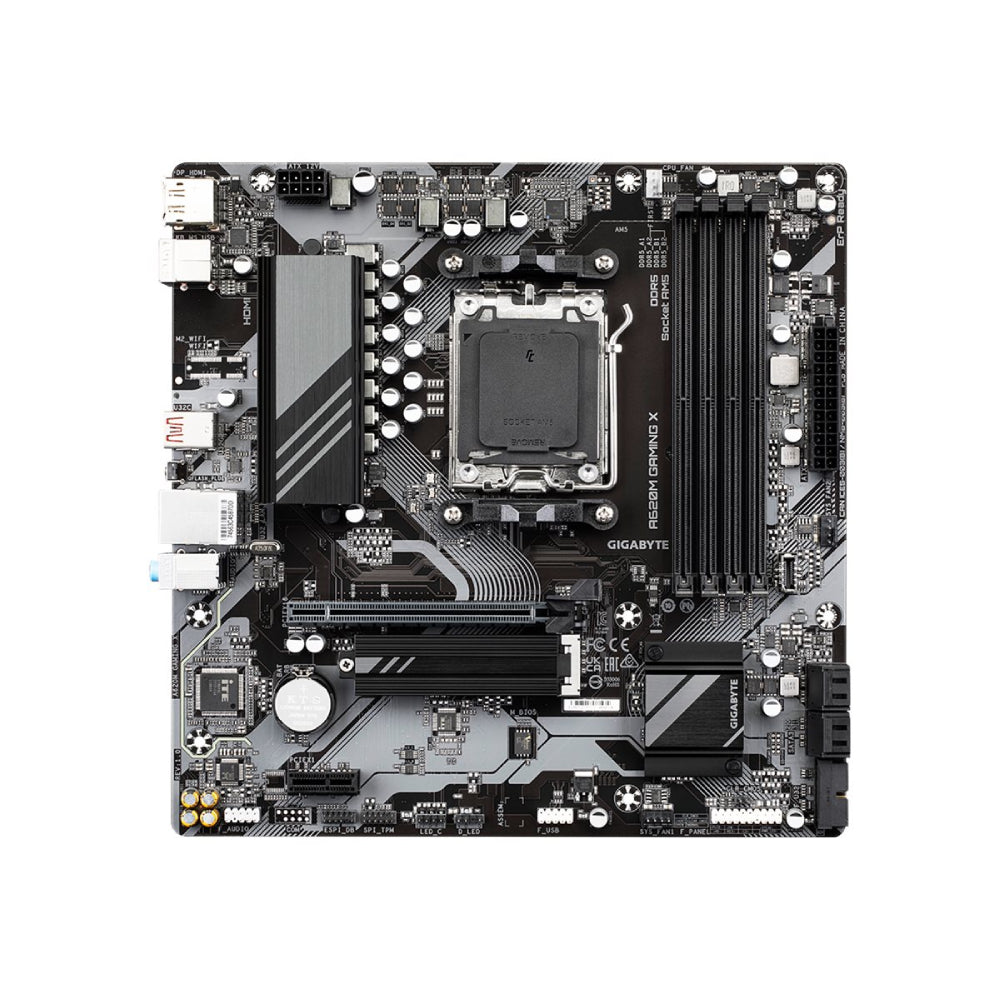

GIGABYTE | A620M GAMING X | AMD A620 | AM5 | Micro ATX | DDR5

Technical Details
Motherboard Chipset - AMD A620
Processor Socket - AMD Socket AM5
Supported Processors - AMD Ryzen 7000, 8000 and 9000 Series
Form Factor - Micro ATX
Memory Type - DDR5
Memory Slots - 4 x DIMM
Maximum Memory Capacity - 192 GB
Memory Architecture - Dual Channel
Supported Memory - DDR5 4800 MHz, 5200 MHz and higher overclocked speeds
Memory Overclocking - AMD EXPO
ECC Memory - Non-ECC
Unbuffered Memory - Yes
Expansion Slots - PCIe slots
Integrated Graphics - Requires a processor with integrated graphics
Audio - High Definition Audio
Networking - Gigabit Ethernet

Connectivity
Storage Interface - SATA 6Gb/s
M.2 Slots - Yes
USB 3.2 Gen 1 - Yes
USB Type-C - Yes
USB-C 3.2 Gen 2x2 - Yes, according to supplier data
Ethernet - RJ-45

Memory
Memory Slots - 4 x DDR5 DIMM
Maximum Memory Capacity - 256 GB
Memory Architecture - Dual Channel
Memory Speed - Up to 8000 MT/s (OC)
Supported Memory Speeds - 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Memory Profiles - AMD EXPO, Intel XMP
ECC Support - Non-ECC
Memory Type - Unbuffered

Expansion Slots
PCIe x16 - 1 x PCIe 4.0 x16 (depending on CPU)
PCIe x1 - 1 x PCIe 3.0 x1
M.2 Slots - 1 x M.2 PCIe 4.0 x4
SATA - 4 x SATA 6Gb/s
RAID Support - RAID 0, 1, 10 (SATA and NVMe)

Connectivity
HDMI - 1 x HDMI 2.1
DisplayPort - 1 x DisplayPort 1.4
USB Type-A - 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0 (rear)
USB Type-C - 1 x USB 3.2 Gen 1 (rear), 1 x USB 3.2 Gen 1 (front header)
Ethernet - 1 x Gigabit LAN (RJ-45)
Audio Jacks - 3 x Audio Jacks
PS/2 - 1 x PS/2 Keyboard/Mouse Port

Audio
Audio Chipset - Realtek Audio Codec
Audio Channels - 2/4/5.1/7.1-channel HD Audio
Audio Features - Audio Noise Guard, High-End Audio Capacitors

Features
VRM Design - 8+2+1 Digital VRM
PCB - 6-Layer PCB with 2X Copper
Cooling - Advanced Thermal Heatsinks
M.2 Cooling - M.2 Thermal Guard
Fan Control - Smart Fan 6
Fan Headers - 3 x PWM/DC Fan Headers
RGB Lighting - RGB Fusion
BIOS Update - Q-Flash Plus
Software - GIGABYTE Control Center
Operating System Support - Windows 10 64-bit, Windows 11 64-bit

Dimensions & Weight
Width - 24.4 cm
Depth - 24.4 cm

Warranty - 24 months
