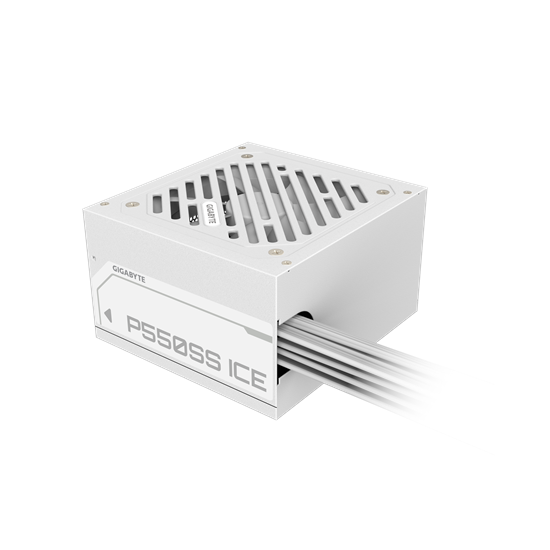

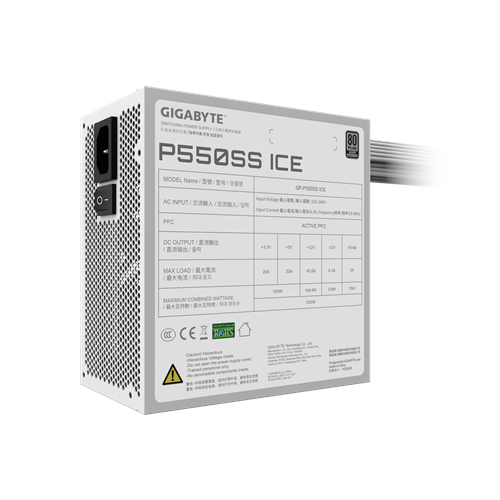

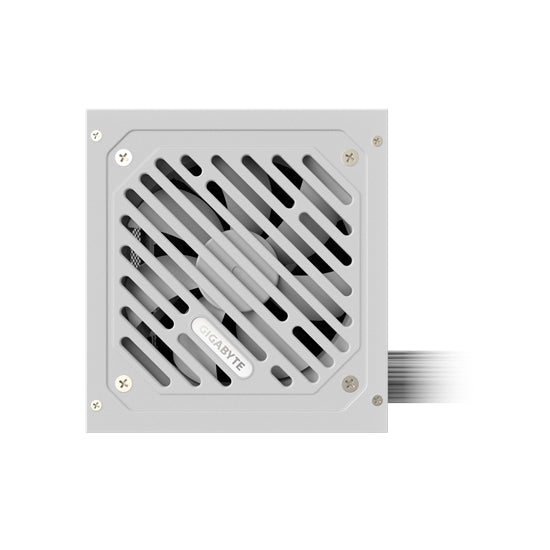

Gigabyte | GP-P550SS ICE GEU1 | P550SS ICE | PSU | 550 W | 80 PLUS Silver | White

Technical Details
Producer - Gigabyte
Brand - GIGABYTE
Product Line - PSU
Model - GP-P550SS ICE GEU1
MPN - GP-P550SS ICE GEU1
Type - Power Supply Unit
Manufacturer - GIGABYTE
Form Factor - ATX 12V v3.0 (compatible with ATX 3.1)
Cable Type - Flat, All white
Colour - White

Power
Nominal Power - 550 W
PFC - Active PFC (>0.9 typical)
Input Voltage - 155-240 Vac
Input Current - 6.3 A
Input Frequency - 50-60 Hz
80 PLUS - Silver
Efficiency - 90% at typical load (230V EU)
+12V Rail - Single +12V rail

Cooling
Fan Type - 120 mm Fluid Dynamic Bearing (FDB) fan

Protection
Protections - OVP, OPP, SCP, UVP, OCP, OTP
Power Good Signal - 100-150 ms
Hold Up Time - >16 ms

Connectors
ATX/MB - 20+4 Pin x 1
CPU/EPS - 4+4 Pin x 1
PCI-e - 6+2 Pin x 2
SATA - 5 connectors
4 Pin Peripheral - 3 connectors

Reliability
MTBF - >100,000 hours

Dimensions & Weight
Width - 14 cm
Depth - 15 cm
Height - 8.6 cm
Net Weight - 2.00 kg

Warranty - 36 month(s)
