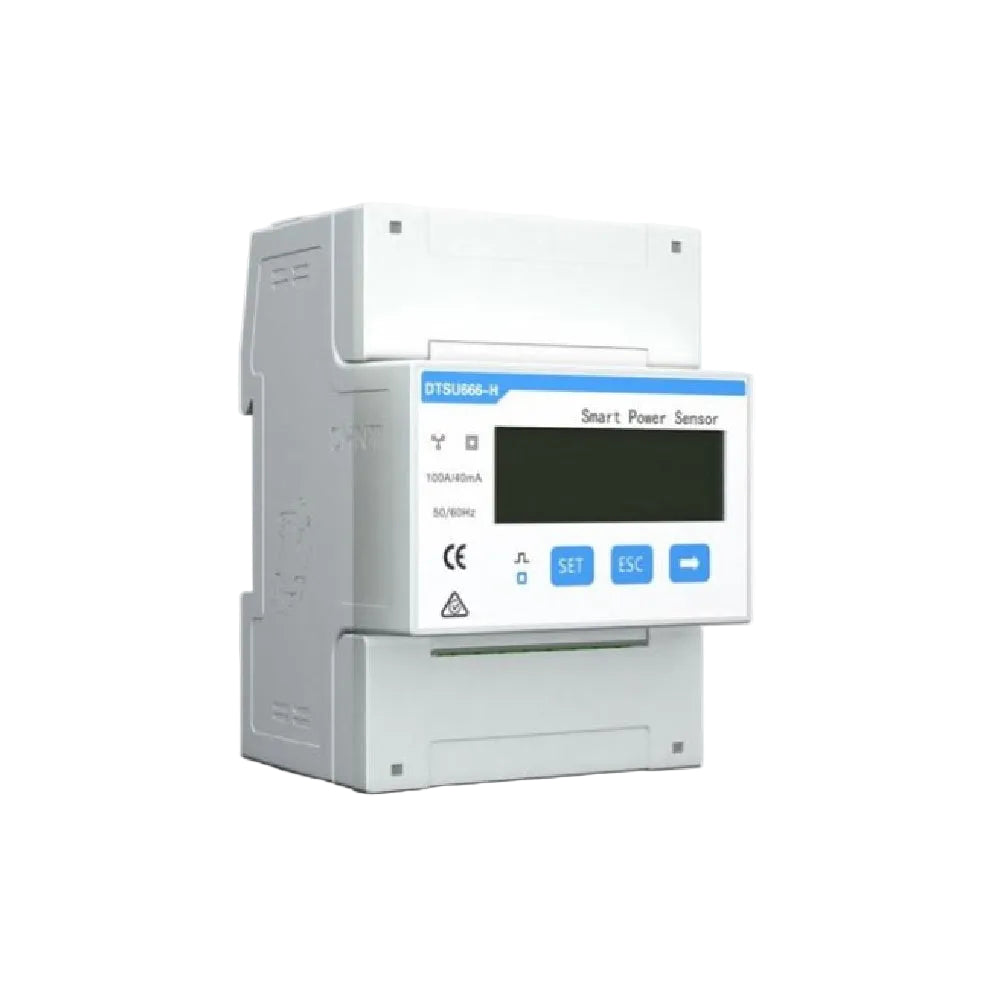

HUAWEI | DTSU666-H | 250A | Smart Power Sensor | 3-Phase | with CT

Technical details
Producer - HUAWEI
Model - DTSU666-H (250A)
MPN - DTSU666-H 250A
EAN - 2000001253496
Product Line - Smart Power Sensor Series
Product Type - Three-Phase Smart Power Sensor (CT Connection)

Performance
Voltage Range - 176–288 V (Line to Neutral)
Current Measurement - 0–250 A (via External CTs)
Measurement Accuracy - Class 1 (Power), Class 0.5 (Frequency)
Grid Connection - Three-phase
Communication - RS485 (Modbus-RTU)

Features
Components - Includes 3 external Current Transformers (CT) 250A/40mA
Installation - Sensor for 35mm DIN rail / CTs for cable clamping
Application - Power management and export control for high-power systems
Monitoring - Energy consumption, grid feed-in, and voltage/current parameters
Compatibility - Works with HUAWEI SUN2000 inverters and FusionSolar

Dimensions & Weight
Product dimensions - 10.0 x 7.2 x 6.6 cm
Weight (device) - 1.48 kg

Shipping Box
Dimensions - 20 x 15 x 12 cm
Weight (kit) - 1.6 kg
