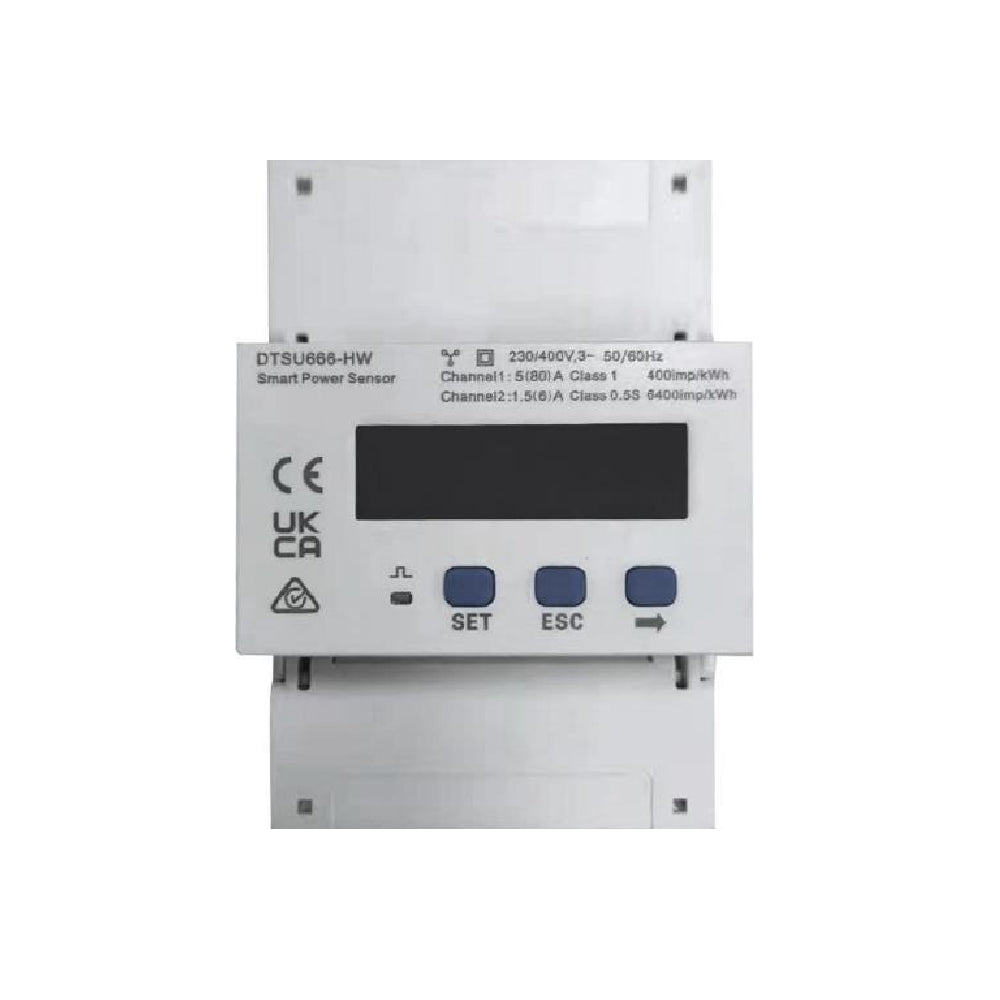

HUAWEI | DTSU666-HW | Smart Power Sensor | 3-Phase | 80A (Direct)

Technical details
Producer - HUAWEI
Model - DTSU666-HW
MPN - DTSU-HW
EAN - 2000001286869
Product Line - Smart Power Sensor Series
Product Type - Three-Phase Smart Power Sensor

Performance
Voltage Range - 176–288 V (Line to Neutral) / 304–499 V (Phase to Phase)
Current Range - 0–80 A (Direct connection)
Measurement Accuracy - Class 1 (Voltage/Current/Power), Class 0.5 (Frequency)
Grid Connection - Three-phase
Communication - RS485 (Modbus-RTU)

Features
Application - Energy monitoring for residential and commercial systems
Installation - Standard 35mm DIN rail mount
Real-time Data - Tracks active/reactive power, voltage, current, and frequency
Integration - Direct integration with HUAWEI FusionSolar and SUN2000 inverters
Design - Compact form factor for easy installation in distribution boards

Dimensions & Weight
Product dimensions - 10.0 x 7.2 x 8.0 cm
Weight (device) - 0.5 kg

Shipping Box
Dimensions - 15 x 12 x 10 cm
Weight (kit) - 1.7 kg
