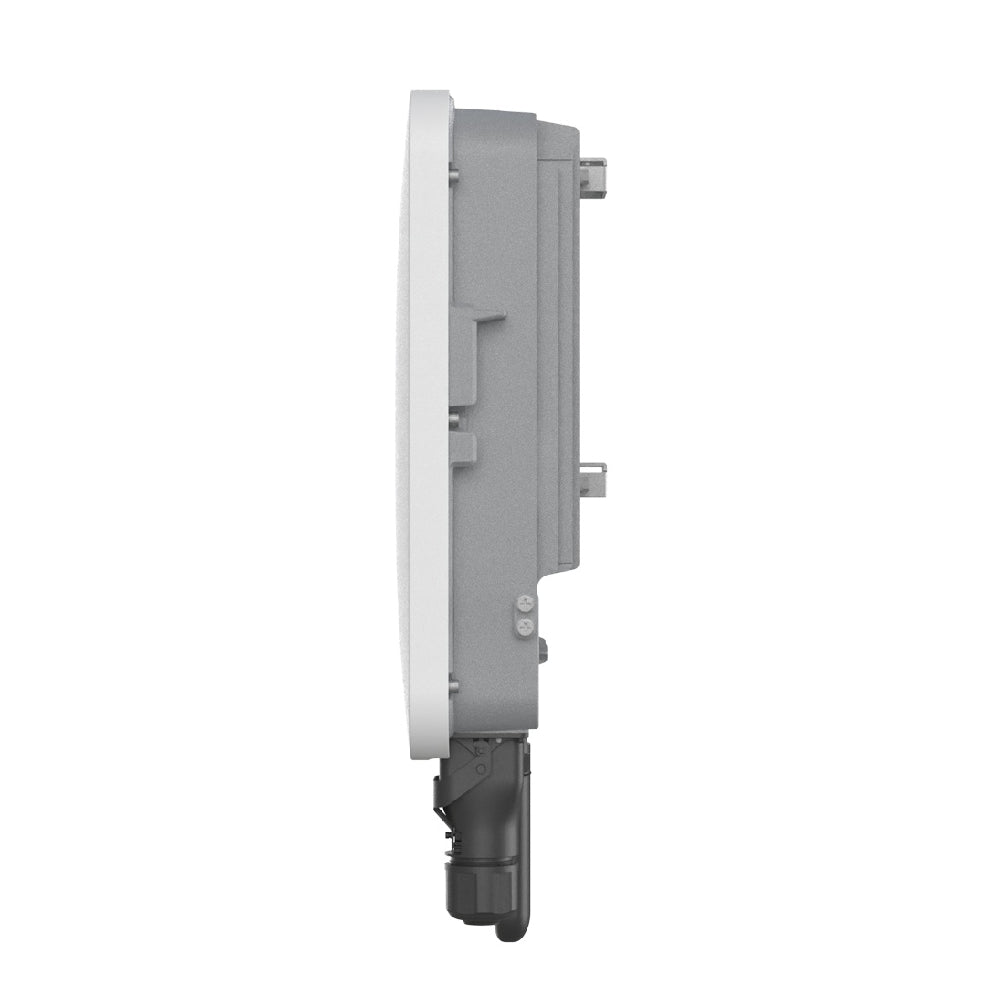

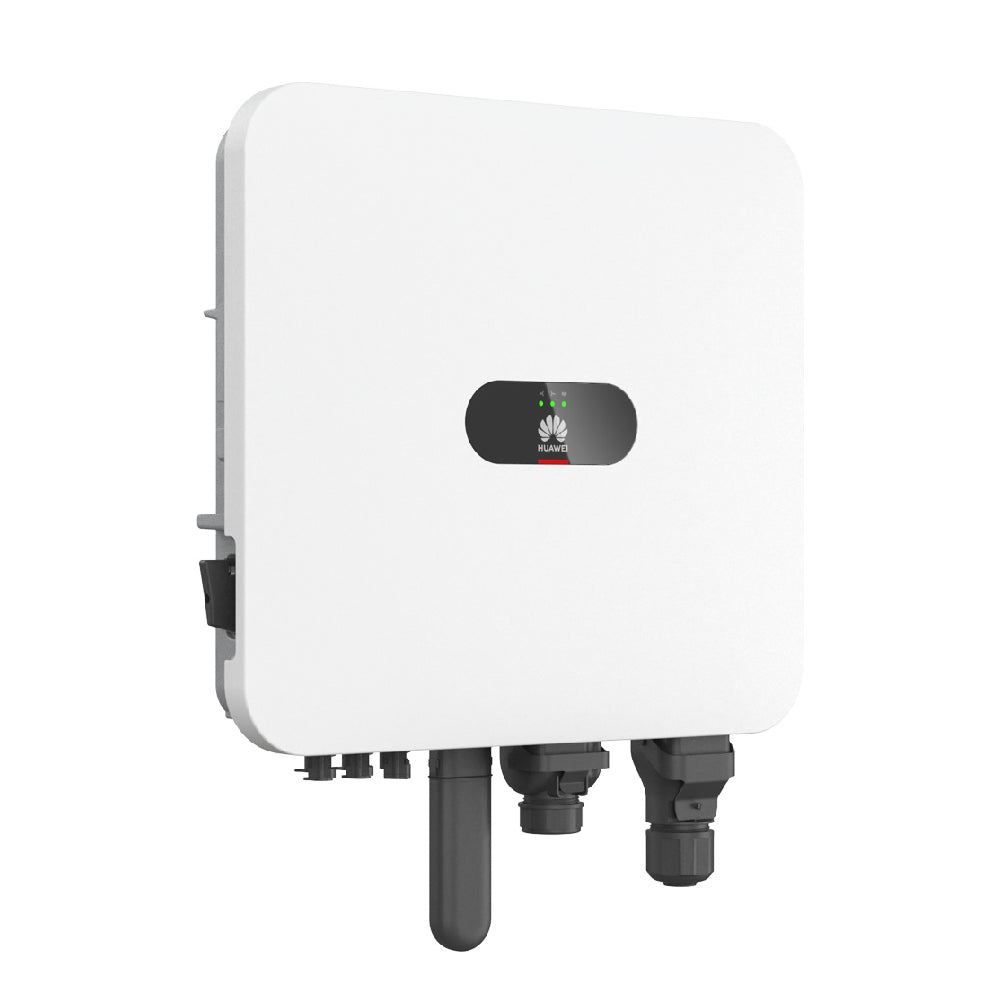

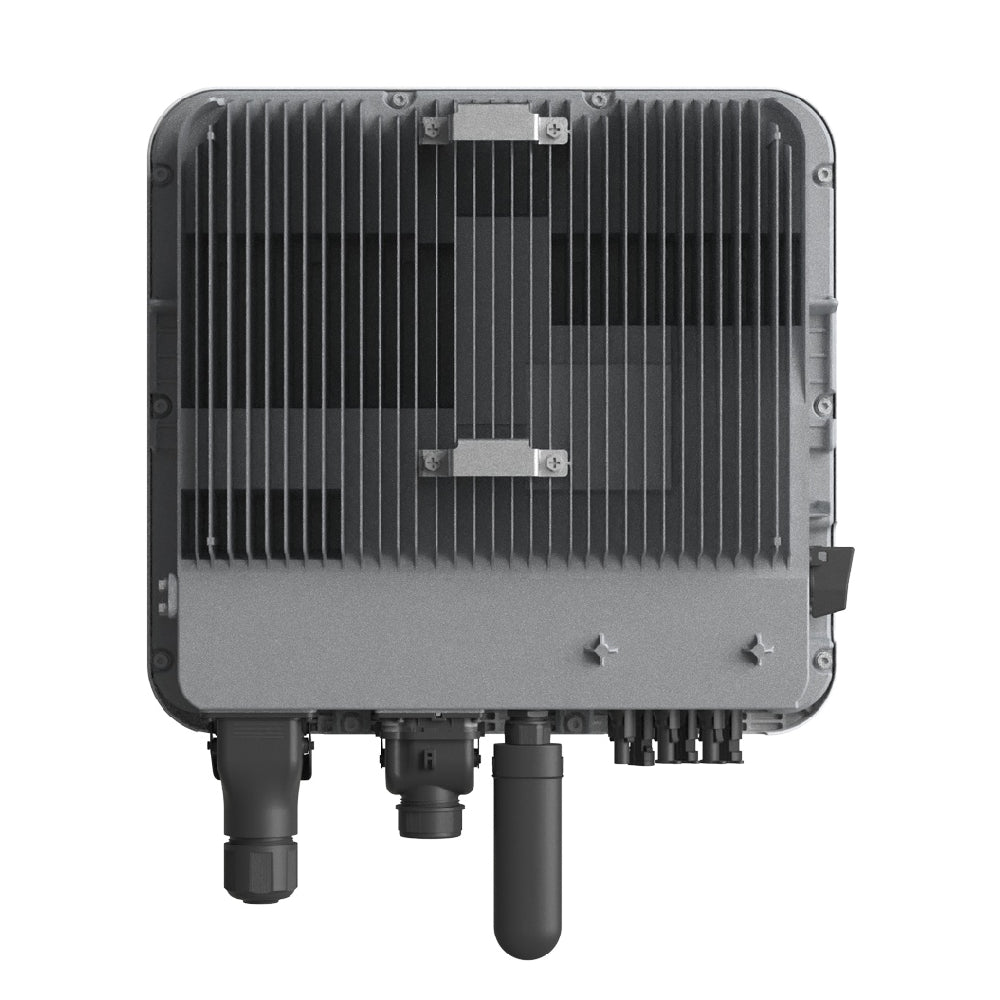

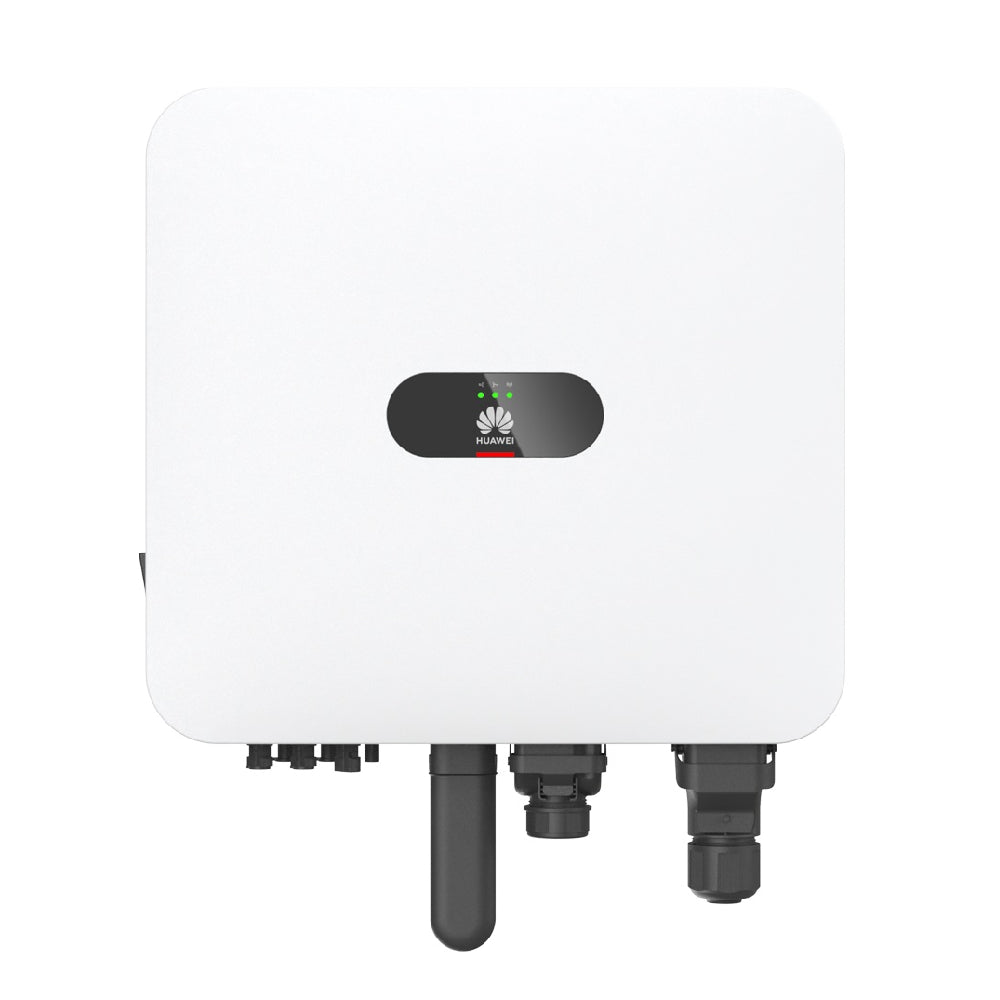

HUAWEI | SUN2000-6K-MAP0 | 6kW | Hybrid Inverter | Unbalanced Load | 3-Phase | 2 MPPT

Technical details
Producer - HUAWEI
Model - SUN2000-6K-MAP0
MPN - SUN2000-6K-MAP0
EAN - 2000001350669
Product Line - SUN2000 Series (MAP0)
Product Type - Three-Phase Hybrid Unbalanced Load Inverter

Performance
Nominal output Power (AC) - 6000 W (6 kW)
Max. PV input Power (DC) - 11000 Wp
Max. PV input voltage - 1100 V
Number of MPPTs - 2 (2 inputs per MPPT)
Max. Efficiency - 98.6%
Euro Efficiency - 97.7%
Grid connection - Three-phase

Features
Load Management - Supports 100% three-phase asymmetrical (unbalanced) output
Battery Compatibility - HUAWEI LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Protection - IP66, AI-powered AFCI, Integrated DC Switch, Type II SPD (AC/DC)
Smart Management - Integrated WLAN, FusionSolar app support, EMMA compatible
Backup Capability - Supports off-grid backup (requires SmartGuard)
Cooling - Natural convection (fanless design) for silent operation

Dimensions & Weight
Product dimensions - 49.0 x 46.0 x 13.0 cm
Weight (device) - 21.0 kg

Shipping Box
Dimensions - 60 x 55 x 25 cm
Weight (kit) - 23.0 kg
