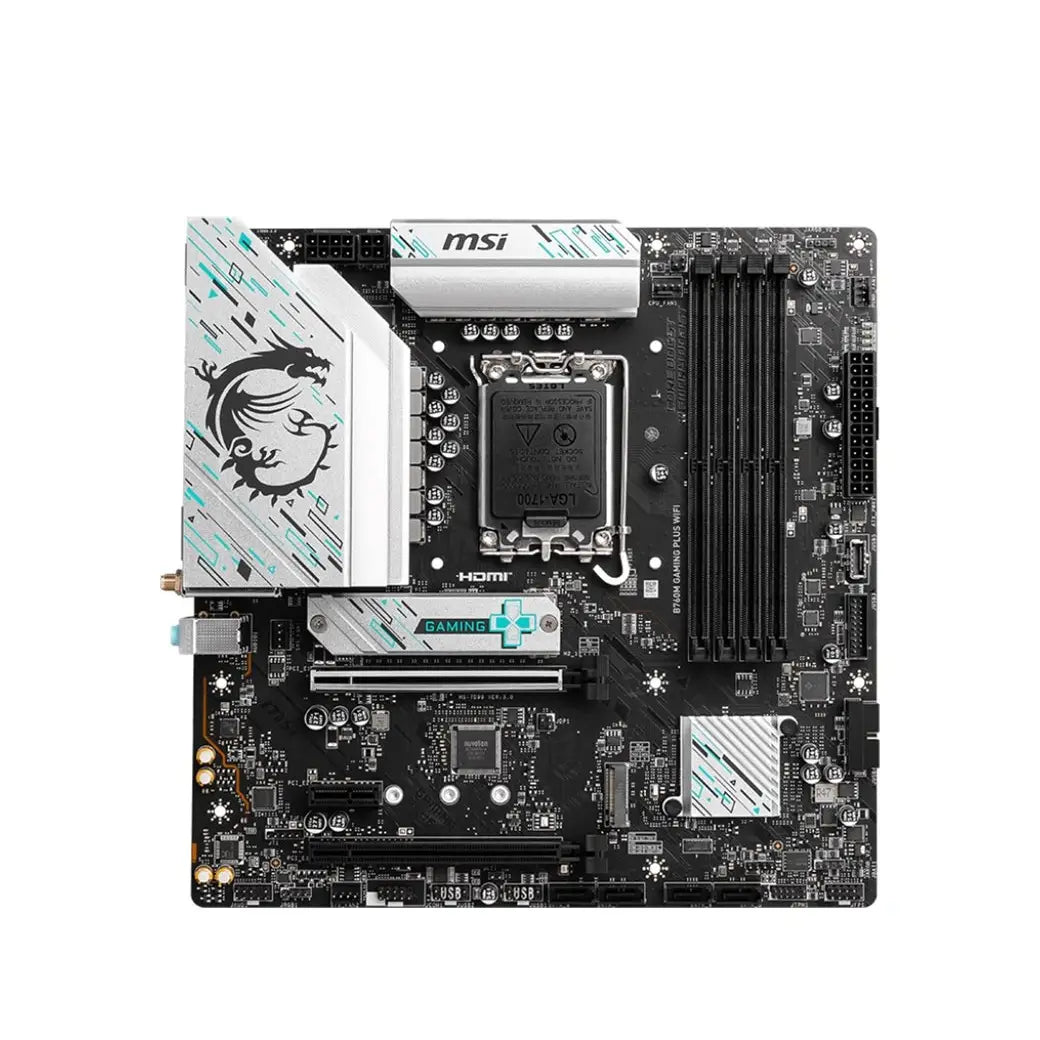

MSI | B760M GAMING PLUS WIFI | Processor Socket LGA1700 Socket | Chipset Type Intel B760

Technical details
Producer - MSI
Manufacturer - MSI
Brand - MSI
Product Line - MSI
Model - B760M GAMING PLUS WIFI

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - Intel B760
Supported RAM Technology - DDR5 SDRAM
Processor Socket - LGA1700 Socket
Form Factor - Micro-ATX
Supported RAM Integrity Check - Non-ECC
Supported RAM Speed - 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (JEDEC), 5400 MHz (JEDEC), 5200 MHz (JEDEC), 5000 MHz (JEDEC), 4800 MHz (JEDEC)
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card

Networking
Data Link Protocol - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.3

Dimensions
Width - 24.4 cm
Depth - 24.4 cm

Miscellaneous
Product Type - Motherboard

Interfaces
Storage - Serial ATA-600 (RAID), M.2 socket
USB / FireWire - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 (front)

RAM
Max Supported Size - 192 GB

Package features
Type of battery - Accumulator
Embeeded battery – Yes

Warranty - 36 month(s)
