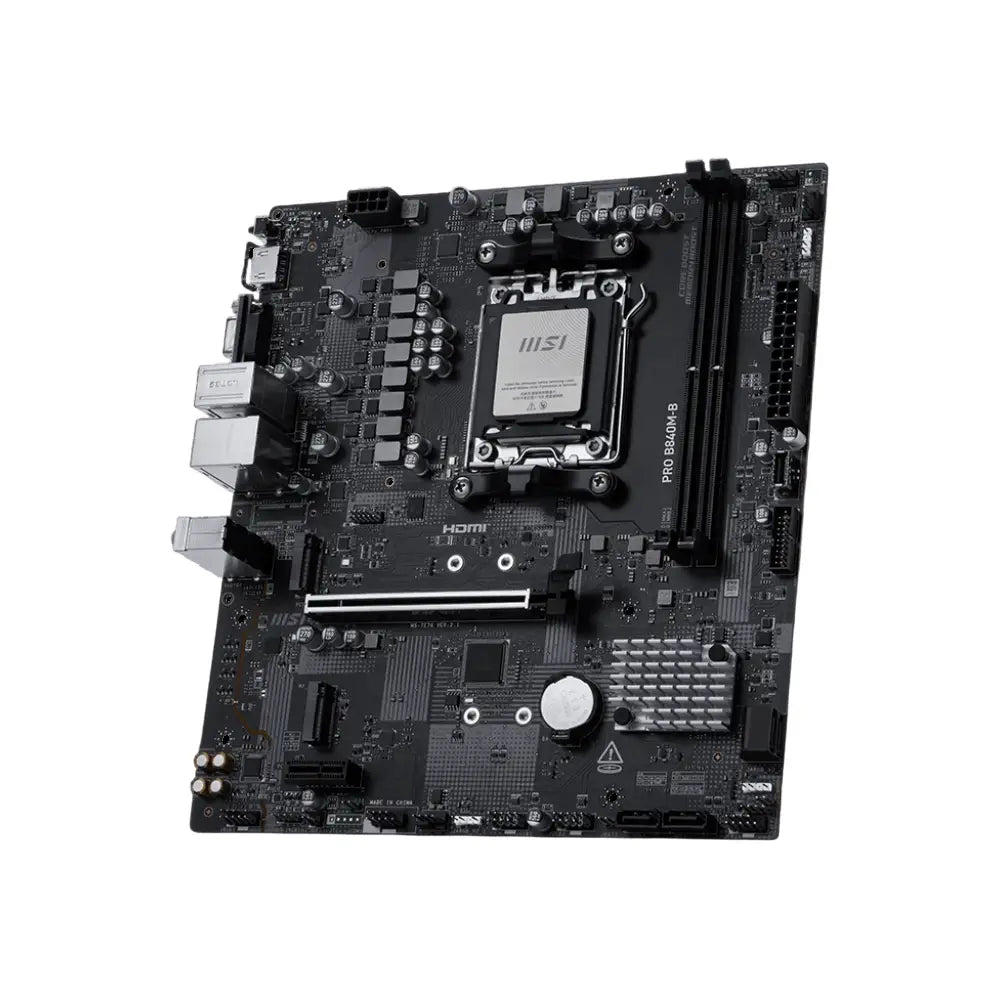

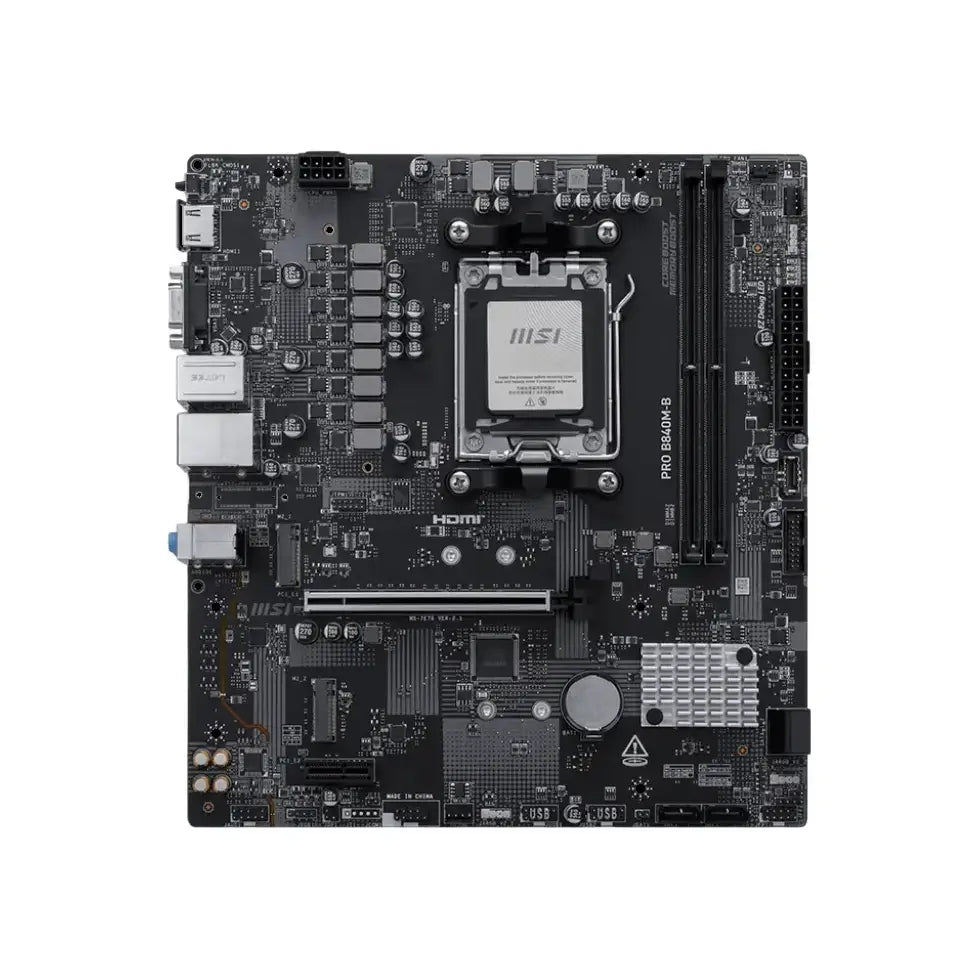

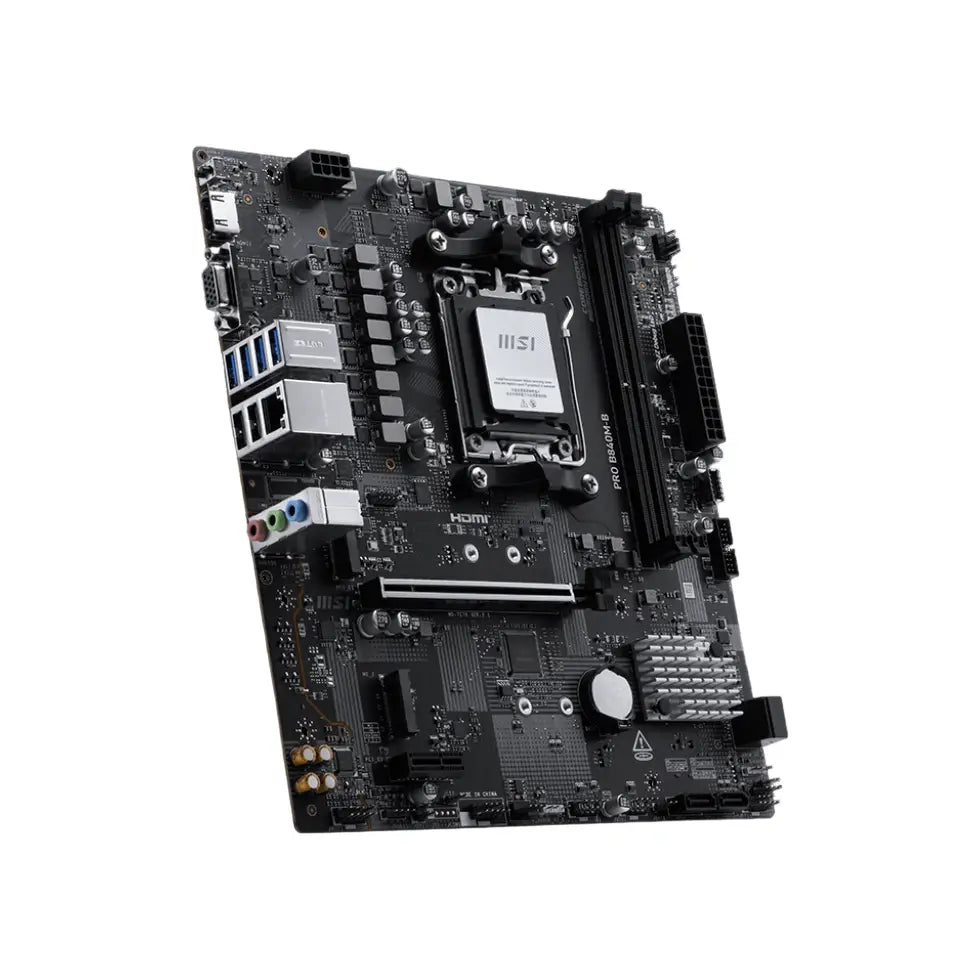

MSI | PRO B840M-B | Processor Socket Socket AM5 | Chipset Type AMD B840

Technical details
Producer - MSI
Brand - MSI
Product Line - MSI
Model - PRO B840M-B
Product Type - Motherboard
Manufacturer - MSI

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - AMD B840
Supported RAM Technology - DDR5 SDRAM
Processor Socket - Socket AM5
Form Factor - Micro-ATX
Supported RAM Integrity Check - Non-ECC
Supported RAM Speed - 8000+ MHz (O.C.), 7800 (O.C.), 7600 (O.C.), 7400 (O.C.), 7200 (O.C.), 7000 (O.C.), 6800 (O.C.), 6400 (O.C.), 6000 (O.C.), 5600 (JEDEC), 5200 (JEDEC), 4800 (JEDEC)
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required via HDMI / VGA)

Audio Output
Type - Sound card (Realtek Audio Boost)

Networking
Data Link Protocol - 2.5 Gigabit Ethernet

Dimensions
Width - 24.4 cm
Depth - 21.0 cm

Interfaces
Storage - 4 x Serial ATA-600, 2 x M.2 slot (Key M)
USB / FireWire - USB Type-C (5Gbps), USB 5Gbps Type-A, USB 2.0

RAM
Max Supported Size - 128 GB

Package features
Type of battery - Accumulator (CR2032 Lithium cell)
Embedded battery – Yes

Warranty - 36 month(s)
