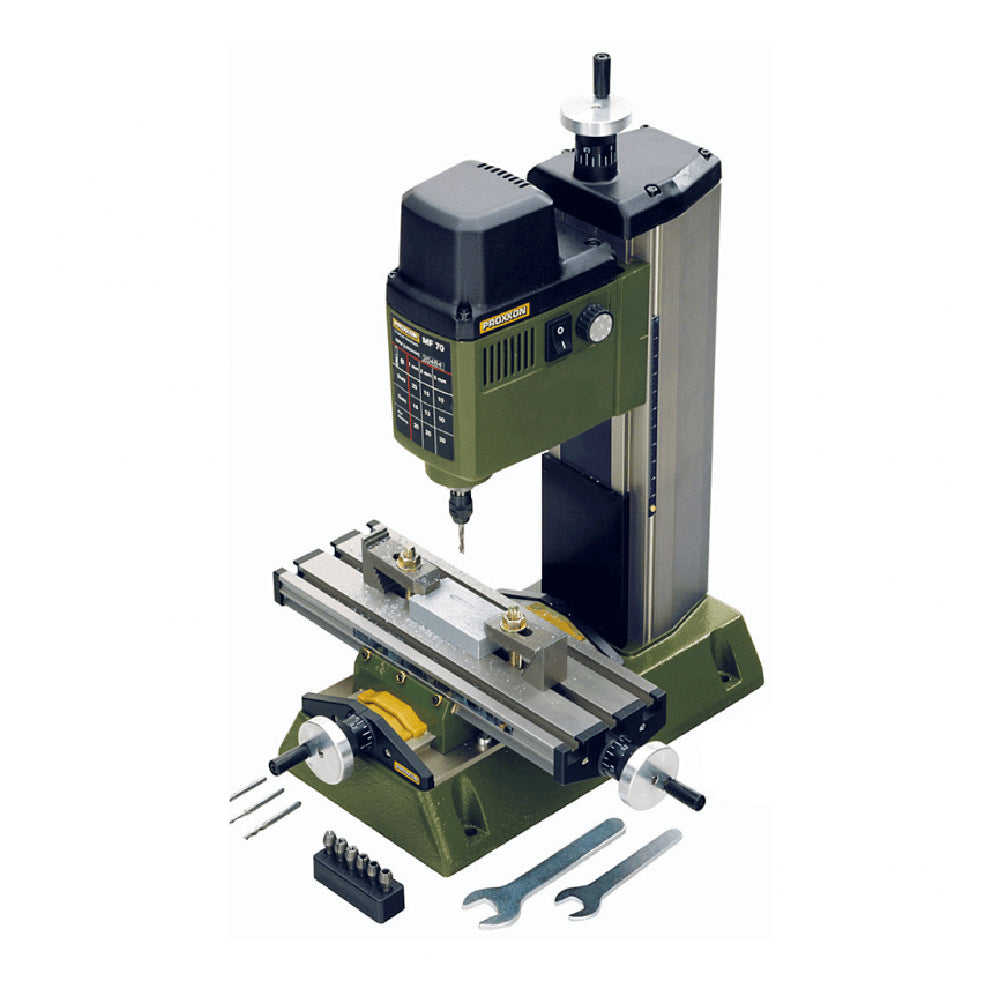

PROXXON | MF 70 | Micro Milling Machine | 100W | 20000 RPM

Technical details
Producer - PROXXON
Model - MF 70
MPN - 27110_PRO
EAN - 4006274271104
Product Line - Micromot System
Product Type - Micro Vertical Milling Machine

Performance
Power Input - 100 W
Voltage - 220–240 V (50/60Hz)
Spindle Speed - 5000–20000 RPM (Variable)
Spindle - Slim, high-speed motor for vibration-free operation

Features
Precision - Handwheels with zero-adjustable scales (1 revolution = 1 mm, 1 division = 0.05 mm)
Construction - Stable base made of cast iron; vertical column and compound table of treated, high-quality aluminum
Adjustability - Continuously variable speed for various cutter diameters and materials
Clamping - Includes set of 6 MICROMOT steel collets (1.0 to 3.2 mm)

Table & Travel
Table size - 200 x 70 mm
X-axis travel - 134 mm
Y-axis travel - 46 mm
Z-axis travel - 80 mm

Dimensions & Weight
Product dimensions - 42.5 x 27.5 x 23.5 cm
Weight (device) - 7.0 kg

Shipping Box
Dimensions - 43 x 28 x 24 cm
Weight (kit) - 8.4 kg
