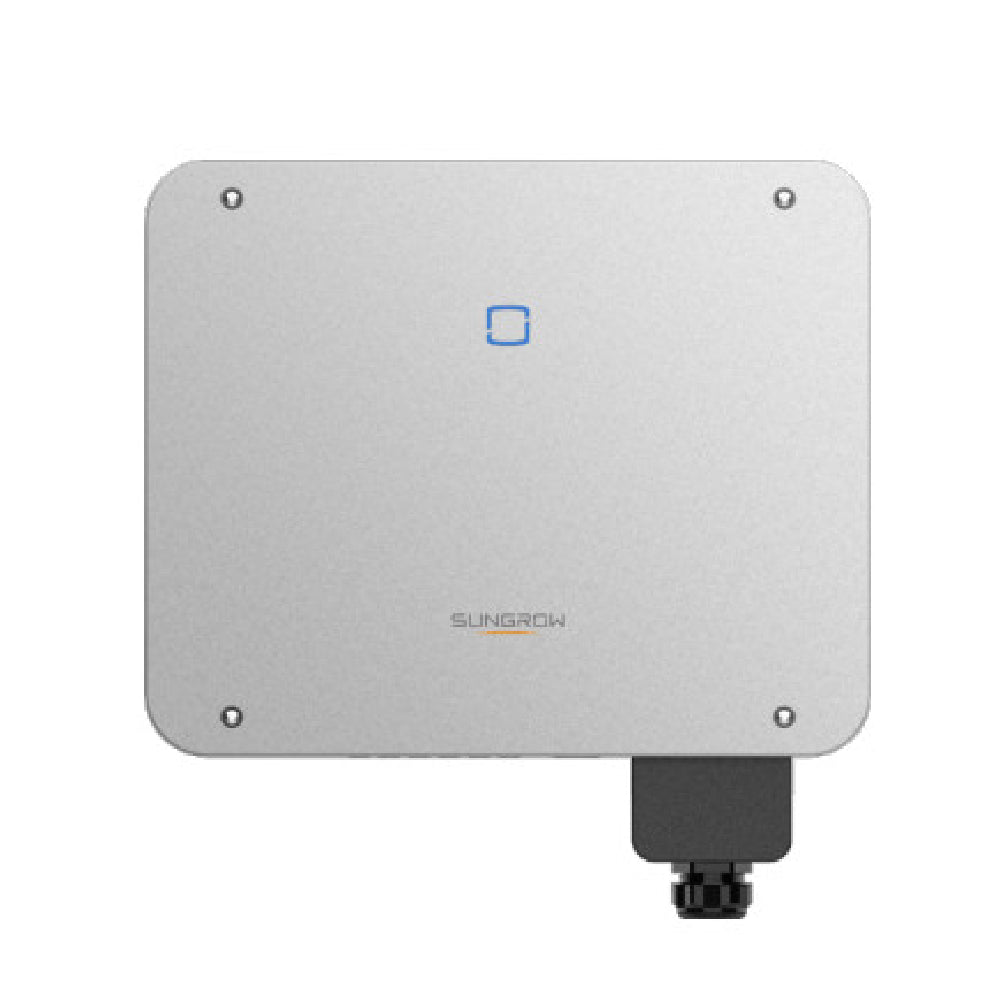

SUNGROW | ASG01767 | SG50CX-P2 | 50kW | 4 MPPT | 3-Phase Inverter | Max. Eff. 98.5%

Technical details
Producer - SUNGROW
Model - SG50CX-P2
MPN - ASG01767
EAN - 2000001290149
Product Line - Commercial & Industrial (C&I)
Product Type - On-Grid String Inverter

Performance
Nominal output Power (AC) - 50000 W (50 kW)
Max. PV input Power (DC) - 75000 Wp
Max. PV input voltage - 1100 V
Number of MPPTs - 4
Max. Efficiency - 98.5%
Euro Efficiency - 98.3%
Grid connection - Three-phase

Features
Communication - RS485, WLAN, Ethernet (optional)
Protection - IP66 / C5 Corrosion Protection, DC/AC Type II SPD, AFCI 2.0
Display - LED Indicators, Integrated WLAN + App
Smart Functions - PID Recovery, IV Curve Scan

Dimensions & Weight
Product dimensions - 64.5 x 57.5 x 24.5 cm
Weight (device) - 41.0 kg

Shipping Box
Dimensions - 75 x 68 x 35 cm
Weight - 43.0 kg
