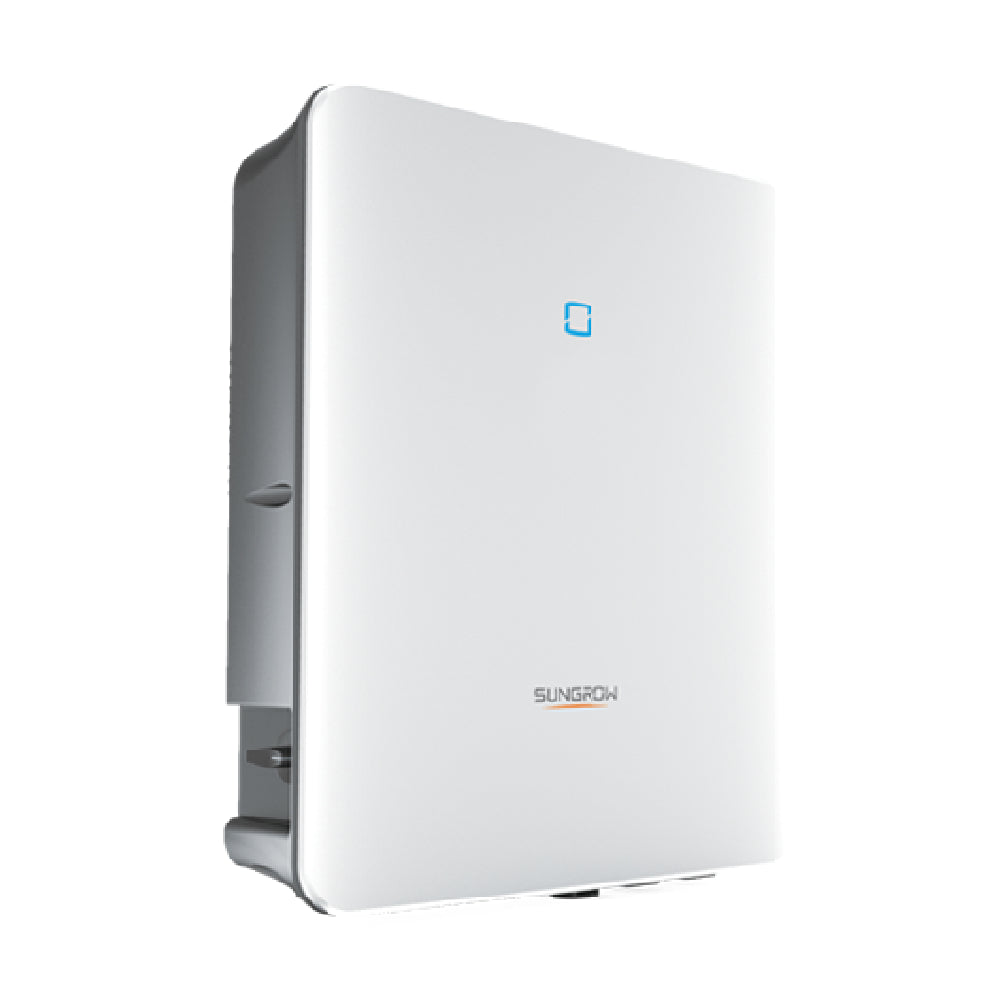

SUNGROW | ASH00131 | SH8.0RT-20 | 8kW | Hybrid Inverter | 3-Phase | 2 MPPT

Technical details
Producer - SUNGROW
Model - SH8.0RT-20 (V11)
MPN - ASH00131
EAN - 2000001393123
Product Line - Residential Hybrid
Product Type - Three-Phase Hybrid Inverter

Performance
Nominal output Power (AC) - 8000 W (8 kW)
Max. PV input Power (DC) - 12000 Wp
Max. PV input voltage - 1000 V
Number of MPPTs - 2
Max. Efficiency - 98.4%
Euro Efficiency - 97.9%
Grid connection - Three-phase

Features
Included - Smart Meter (DTSU666-20) included in the kit
Battery Support - High Voltage (HV) Lithium-ion batteries
Backup Power - Seamless transition to backup mode (less than 10ms)
Protection - IP65, DC/AC Type II SPD, Arc Fault Circuit Interrupter (AFCI)
Communication - RS485, WLAN, Ethernet (via WiNet-S dongle)

Dimensions & Weight
Product dimensions - 54.0 x 46.0 x 17.0 cm
Weight (device) - 27.0 kg

Shipping Box
Dimensions - 65 x 56 x 28 cm
Weight - 29.0 kg
