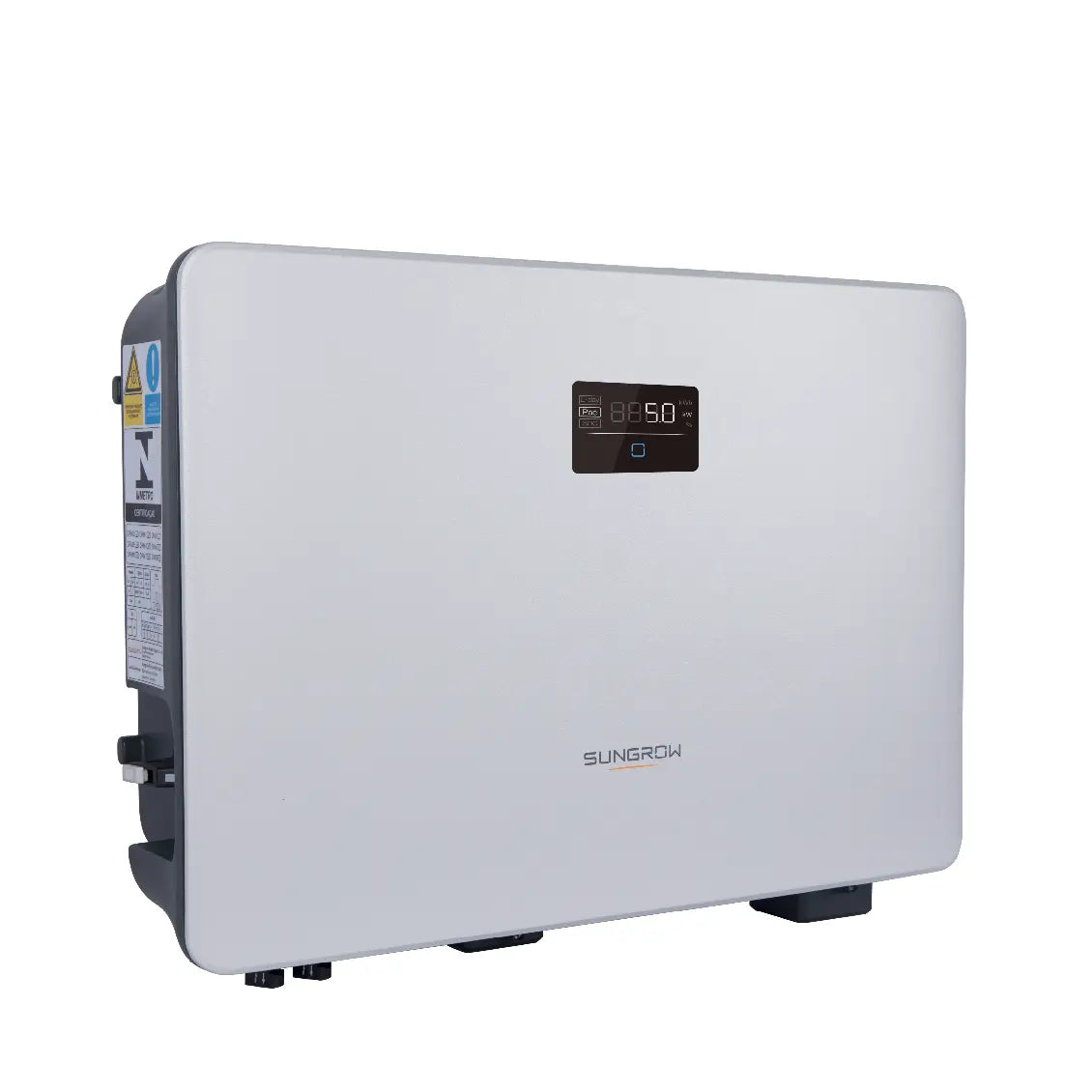

SUNGROW Inverter Hybrid SH6.0RS 6kW 2MPPT + DTSU666 Smart Meter | ASH00119

Technical details
Producer - SUNGROW
Model - SH6.0RS
MPN - ASH00119
EAN - 2000001361863
Product Line - Residential Hybrid (Single-Phase)
Product Type - Hybrid Inverter

Performance
Nominal output Power (AC) - 6000 W (6 kW)
Max. PV input Power (DC) - 12000 Wp
Max. PV input voltage - 600 V
Number of MPPTs - 2
Max. Efficiency - 97.7%
Euro Efficiency - 97.3%
Grid connection - Single-phase

Features
Included - Smart Meter DTSU666 included
Battery Support - Compatible with SUNGROW SBR and other HV batteries
Safety - Built-in PID recovery, Type II SPD (DC/AC), AFCI protection
Smart Management - WiNet-S dongle for 24/7 monitoring via iSolarCloud
Design - Compact and lightweight for single-person installation

Dimensions & Weight
Product dimensions - 49.0 x 34.0 x 17.0 cm
Weight (device) - 18.5 kg

Shipping Box
Dimensions - 59 x 49 x 34 cm
Weight (kit) - 24.0 kg
