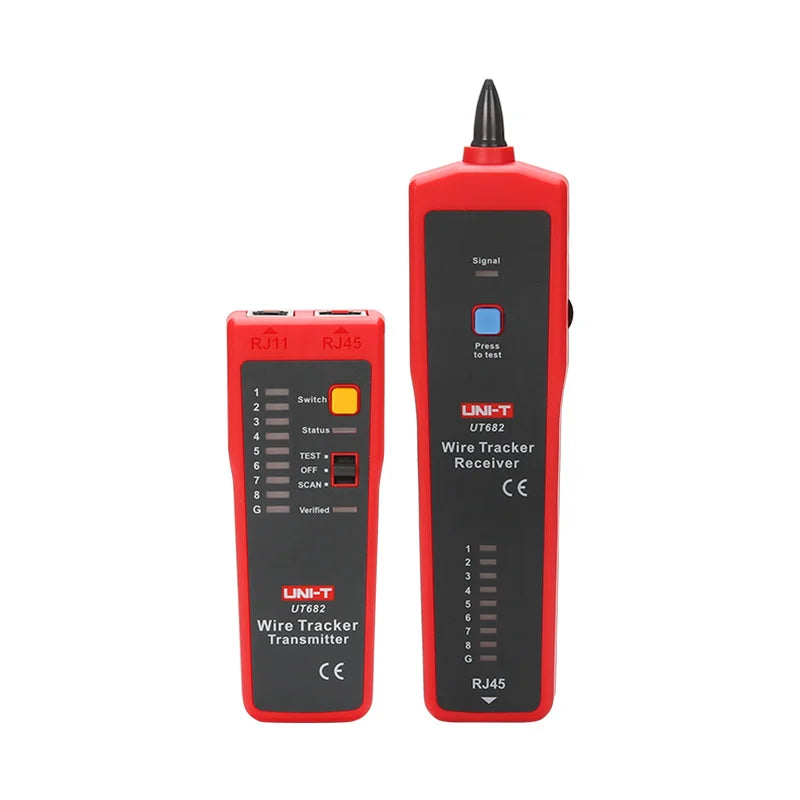

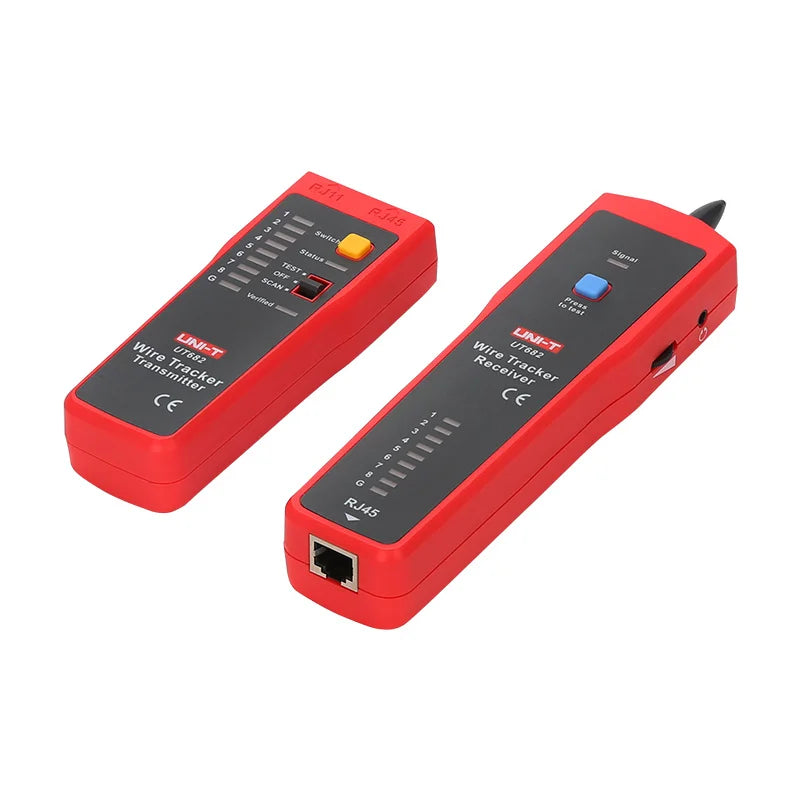

UNI-T | Network and Telephone Cable Tester | UT682 | Red / Grey

Technical Details
Producer – UNI-TREND
Brand – UNI-T
Product Line – UNI-T Wire Trackers
Model – UT682
Product type – Network and Telephone Cable Tester
EAN – 6935750568255
Manufacturer – UNI-TREND

Input Device & Performance
Measurement Type – Wire Tracking (LAN cable / telephone line / coaxial cable / electric wire), Alignment, Short/Open circuit test, Polarity Indication
Telephone Line Tracking Distance – ≥ 3000 m
LAN Cable Tracking Distance – ≥ 320 m (Shielded & Unshielded)
Switchboard Wire Tracing Distance – ≥ 100 m
Polarity Indication Range – DCV function, Range: ±(5V ~ 52V)
Transmitter Output Voltage – ≥ 12V peak-to-peak
Transmitter Input Voltage Protection – 52V DC

System Requirements & Protection
Power Supply – 2x 9V Battery (6F22, one for transmitter, one for receiver)
Operating Temperature – 0°C ~ 40°C (32°F ~ 104°F)
Certifications – CE, UKCA

Design
Display Type – 9 Independent LED Wire Sequence Indicators + Signal Strength Indicator Light
Colour – Red / Grey
Special Features – Volume Adjustment, Headphone Jack for noisy environments, Broken Wire Detection, Low Battery Indication

Dimensions
Transmitter Dimensions – 12.5 x 4.8 x 2.8 cm
Receiver Dimensions – 19.5 x 4.8 x 3.0 cm
Net weight – 0.28 kg (Transmitter: 125 g, Receiver: 153 g)
Gross weight – 0.43 kg

Warranty – 24 month(s)
