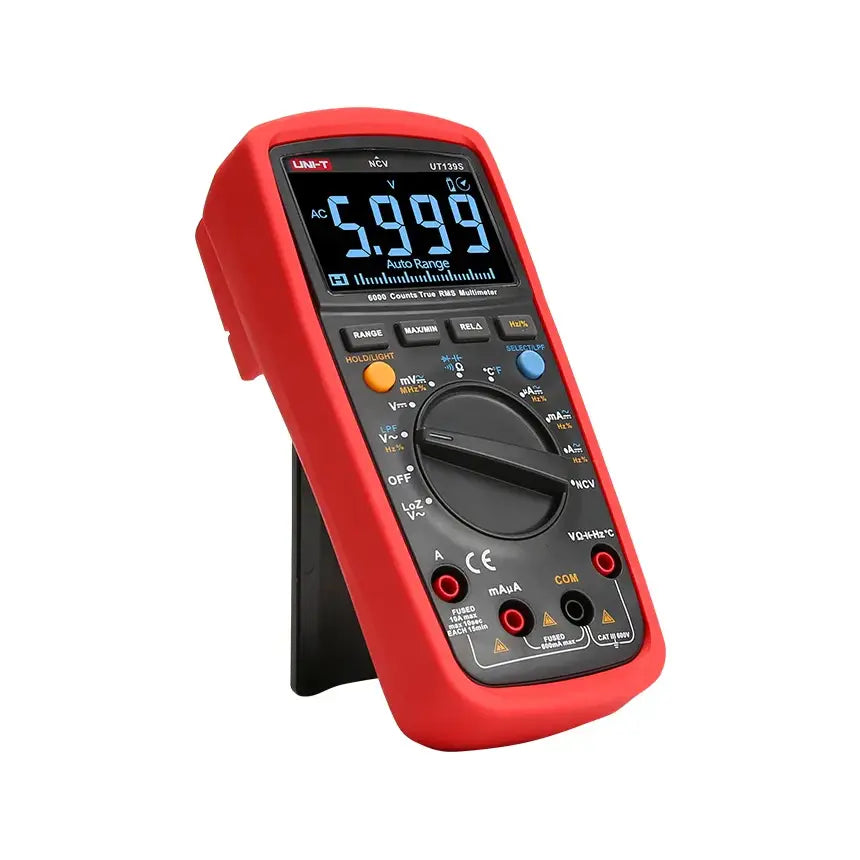

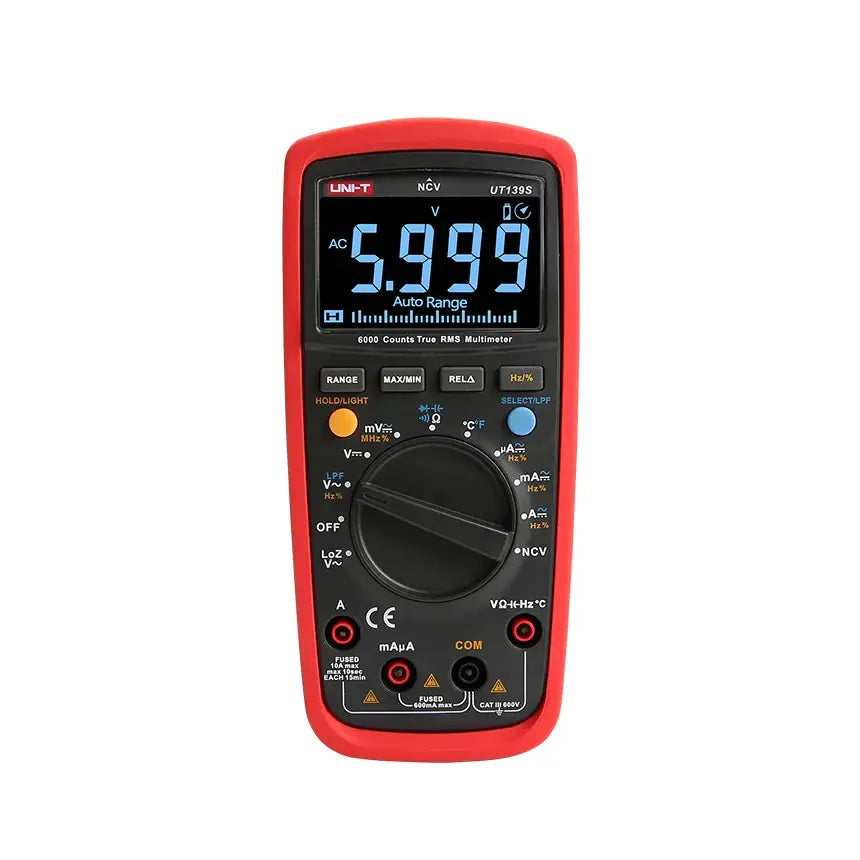

UNI-T | True RMS Digital Multimeter with Analog Bar Graph | UT139S | Red / Grey

Technical Details
Producer – UNI-TREND
Brand – UNI-T
Product Line – UNI-T Digital Multimeters
Model – UT139S
EAN - 6935750513965
Product type – Digital Multimeter
Manufacturer – UNI-TREND

Input Device & Performance
Measurement Type – AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Diode Test, Continuity, NCV, LPF (Low Pass Filter), LoZ (Low Impedance Input)
DC Voltage Range – 60mV, 600mV, 6V, 60V, 600V
AC Voltage Range – 60mV, 600mV, 6V, 60V, 600V (True RMS)
DC Current Range – 600µA, 6000µA, 60mA, 600mA, 6A, 10A
AC Current Range – 600µA, 6000µA, 60mA, 600mA, 6A, 10A (True RMS)
Resistance Range – 600 Ohm, 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm, 60 MOhm
Capacitance Range – 9.999nF ~ 99.99mF
Frequency Range – 10Hz ~ 10MHz
Temperature Range – -40°C ~ 1000°C (-40°F ~ 1832°F)

System Requirements & Protection
Safety Rating – CAT III 600V
Overload Protection – 600V (max)

Design
Display Type – EBDT LCD Display (6000 count, high-contrast black screen with 31-segment analog bar graph)
Colour – Red / Grey
Special Features – Data Hold, MAX/MIN, Relative Mode, Low Battery Indication, Auto/Manual Range

Dimensions
Width – 8.0 cm
Depth – 4.8 cm
Height – 17.5 cm
Net weight – 0.35 kg
Gross weight – 0.58 kg

Warranty – 24 month(s)
