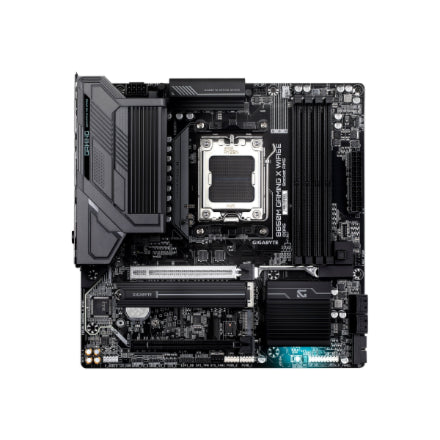

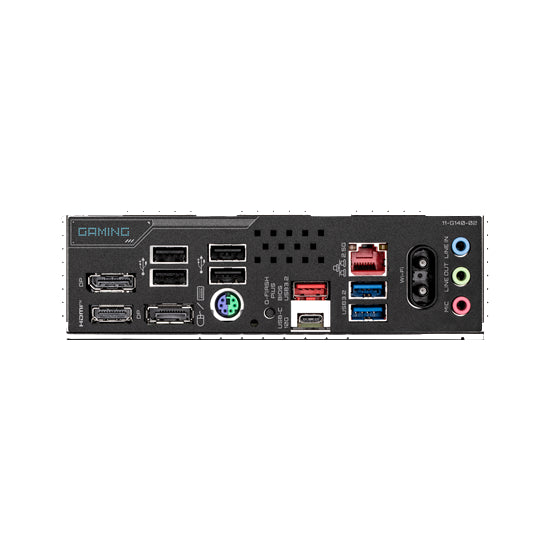

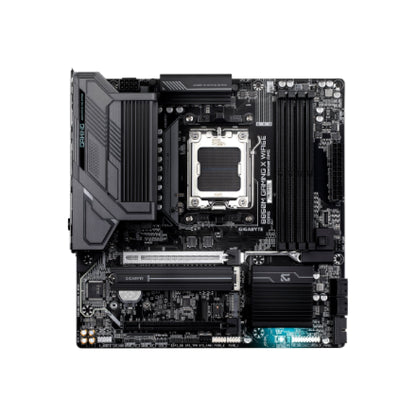

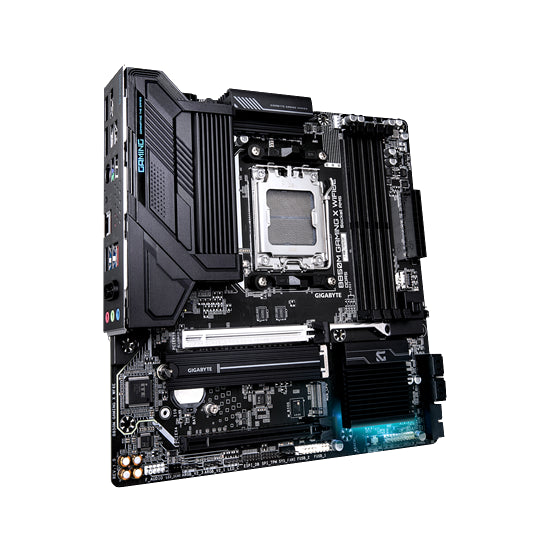

GIGABYTE | B850M GAMING X WF6E | AMD B850 | Socket AM5 | DDR5 | Micro ATX | Wi-Fi 6E

Technical Details
Producer - Gigabyte
Brand - GIGABYTE
Product Line - Gigabyte GAMING
Model - B850M GAMING X WIFI6E
MPN - B850M GAMING X WF6E
Type - Motherboard
Manufacturer - GIGABYTE

Mainboard
Chipset - AMD B850
Processor Socket - Socket AM5
Compatible Processors - AMD Ryzen 9000 / 8000 / 7000 Series
Form Factor - Micro ATX
Memory Technology - DDR5 SDRAM
Memory Type - Non-ECC Unbuffered DIMM
Memory Slots - 4 x DDR5 DIMM
Maximum Supported Memory - 256 GB
Memory Architecture - Dual Channel
Memory Profiles - AMD EXPO
Supported Memory Speed - Up to 8200 MT/s (O.C.)
VRM - Digital Twin 10+2+2 Phase VRM

Video Output
Graphics - Integrated graphics via compatible CPU
Video Outputs - HDMI, DisplayPort
HDMI - 1 x HDMI
DisplayPort - 2 x DisplayPort

Audio Output
Audio - 8-Channel HD Audio
Audio Features - High-End Audio Capacitors, Audio Noise Guard

Networking
LAN - 2.5 Gigabit Ethernet
Wireless - Wi-Fi 6E
Wireless Standard - IEEE 802.11ax
Bluetooth - Bluetooth 5

Interfaces
Storage - 4 x SATA 6 Gb/s
Storage - 2 x M.2
M.2 - 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4
USB - USB 3.2 Gen 2 Type-C
USB - USB 3.2 Gen 2
USB - USB 3.2 Gen 1
USB - USB 2.0

Expansion Slots
PCIe - 1 x PCIe 5.0 x16
PCIe - 1 x PCIe 3.0 x4

Features
X3D Turbo Mode
D5 Bionic Corsa
Q-Flash Plus
Q-Flash Auto Scan
Smart Fan 6
M.2 Thermal Guard
VRM Thermal Armor Advanced
PCIe EZ-Latch Plus
M.2 EZ-Latch Plus
RGB Fusion
WIFI EZ-Plug
Front USB-C 10 Gb/s

Dimensions & Weight
Dimensions - 24.4 x 24.4 cm

Warranty - 24 month(s)
