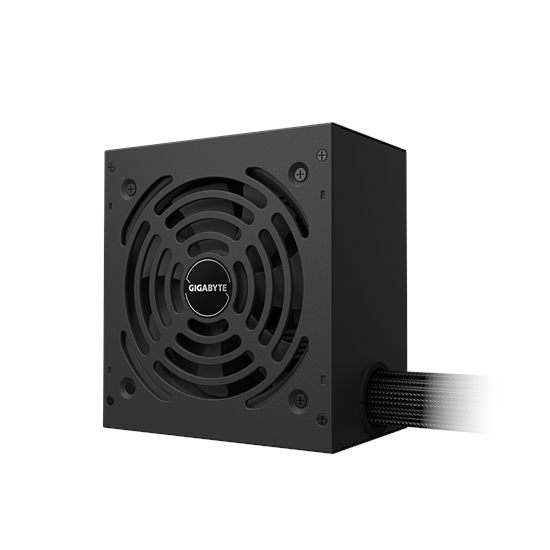

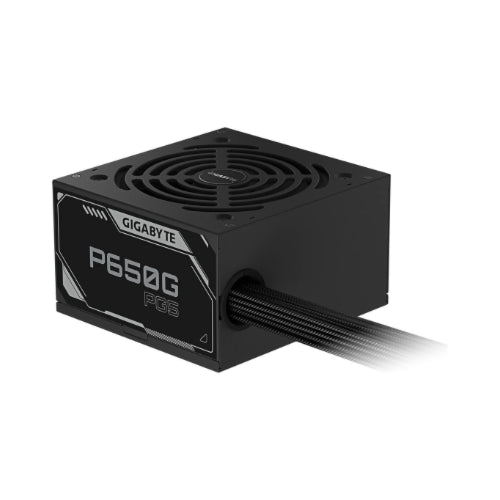

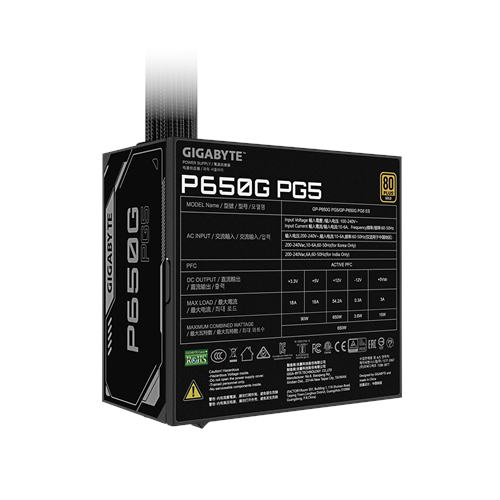

GIGABYTE | GP-P650G PG5 | P650G PCIE 5.1 | 650 W | 80 PLUS Gold | ATX 3.1

Technical Details
Producer - Gigabyte
Brand - GIGABYTE
Product Line - Power Supply
Model - P650G PCIE 5.1
MPN - GP-P650G PG5
Type - Power Supply Unit
Manufacturer - GIGABYTE
Form Factor - ATX

Power
Nominal Power - 650 W
Efficiency Certification - 80 PLUS Gold
Input Voltage - 100-240 V
Power Factor Correction - Active PFC
Power Rails - Single +12V Rail
ATX Standard - ATX 3.1
PCIe Standard - PCIe 5.1
PCIe Power Connector - Native 16-pin
Maximum Power for PCIe 5 Graphics Cards - Up to 300 W

Cooling

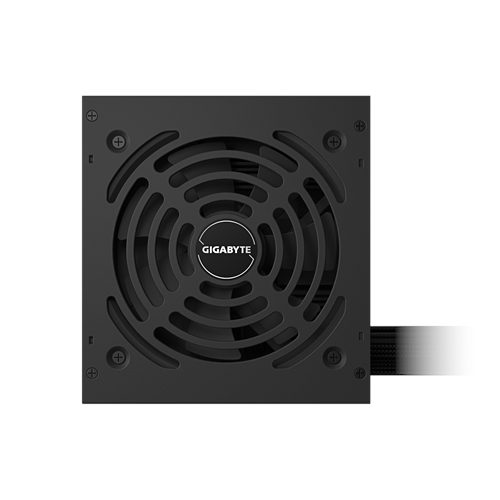

Fan - 120 mm Silent Hydraulic Bearing (HYB) Fan
Fan Control - Automatic fan speed adjustment

Protection
Over Voltage Protection (OVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Under Voltage Protection (UVP)
Over Current Protection (OCP)
Over Temperature Protection (OTP)

Features
80 PLUS Gold Certified
Japanese Main Capacitors
Single +12V Rail
Soft-Textured Embossed Cables
Compact Design

Dimensions & Weight
Dimensions - 15 x 14 x 8.6 cm
Net Weight - 2.00 kg
Gross Weight - 2.19 kg

Warranty - 36 month(s)
