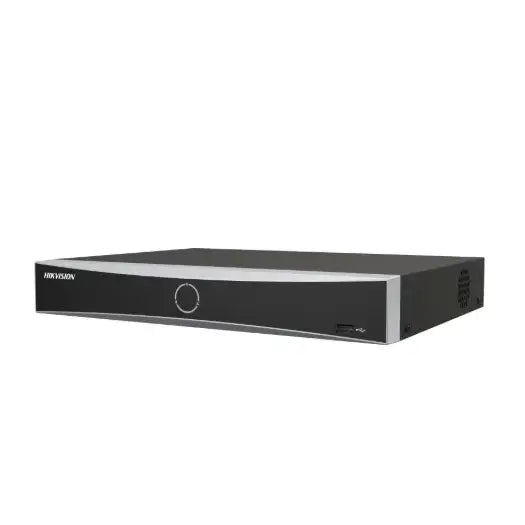

Hikvision | 4-Channel 1U K Series AcuSense 4K NVR | DS-7604NXI-K1(D)

Technical details
Producer – Hikvision
Brand – Hikvision
Product Line – Hikvision Pro Series NVR
Model – DS-7604NXI-K1(D)
EAN – 6942160489902
Product Type – Network Video Recorder (NVR)

Main specification
IP Video Input – 4-channels
Incoming Bandwidth – 40 Mbps
Outgoing Bandwidth – 80 Mbps
Video Compression – H.265+ / H.265 / H.264+ / H.264
Decoding Capacity – 2-ch @ 12 MP, 4-ch @ 8 MP, 8-ch @ 4 MP, 16-ch @ 1080p (with AI off)
Video Outputs – 1x HDMI (up to 4K / 3840 × 2160), 1x VGA (up to 1080p), simultaneous output
Audio Ports – 1-ch Input / 1-ch Output (RCA, Two-way audio support)
Synchronous Playback – 4-channels

Performance & AI features
AcuSense Intelligence – Deep learning human and vehicle classification filtering
Smart Analytics – Facial recognition, perimeter protection, Motion Detection 2.0
Face Recognition Libraries – Up to 16 face libraries with up to 20,000 face pictures in total
Alarm I/O Interface – 4 Inputs / 1 Output (Integrated hardware alarm block)
Network Protocol – TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Design & Interfaces
Colour – Black
Form Factor – 1U Rack-mountable / Desktop
Network Port – 1x RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet interface
SATA Interface – 1x SATA port supporting up to 16 TB capacity
USB Ports – 2x USB 2.0 (1x Front panel, 1x Rear panel)

Power
Power Source – 12 VDC, 1.5 A
Power Consumption – ≤ 10 W (Without hard disk drive)

Dimensions & Weight
Product dimensions (W x D x H) – 32.0 × 24.0 × 4.8 cm
Gross Weight – 1.25 kg
Net Weight – 1.00 kg

Warranty – 24 month(s)
