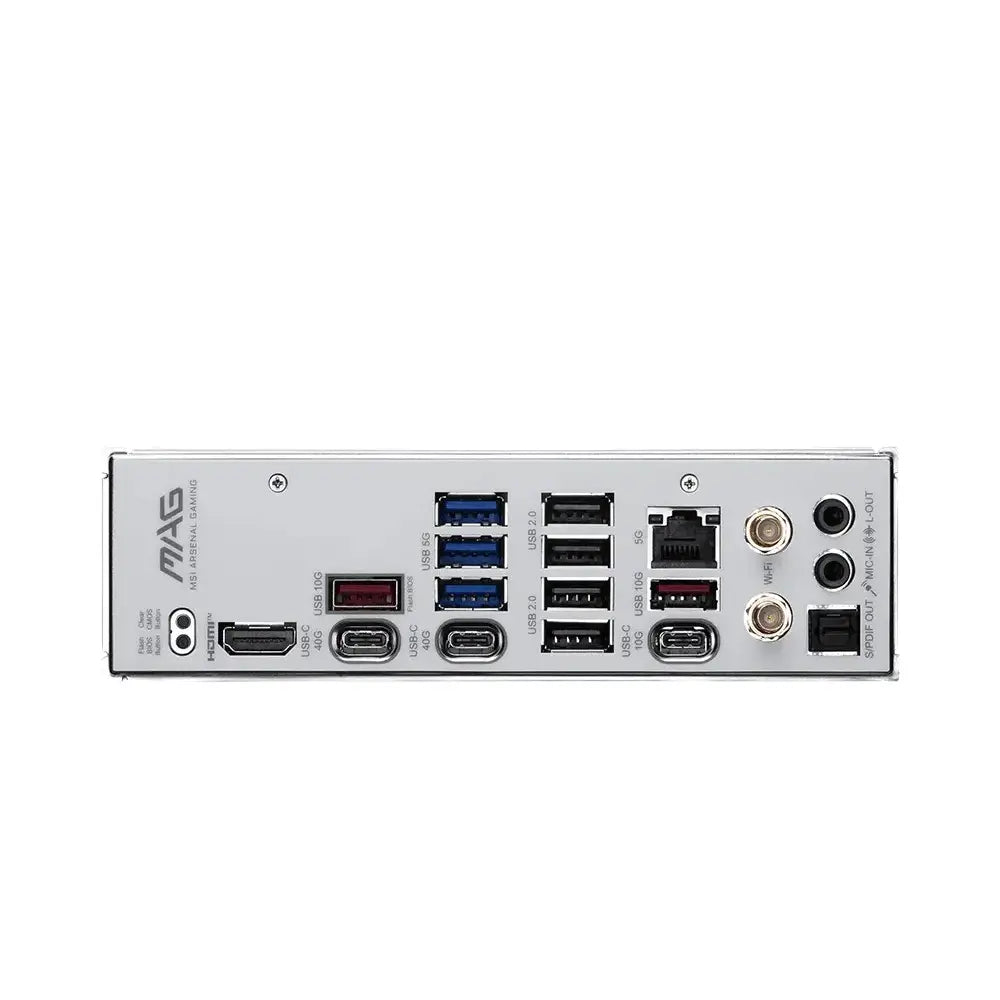

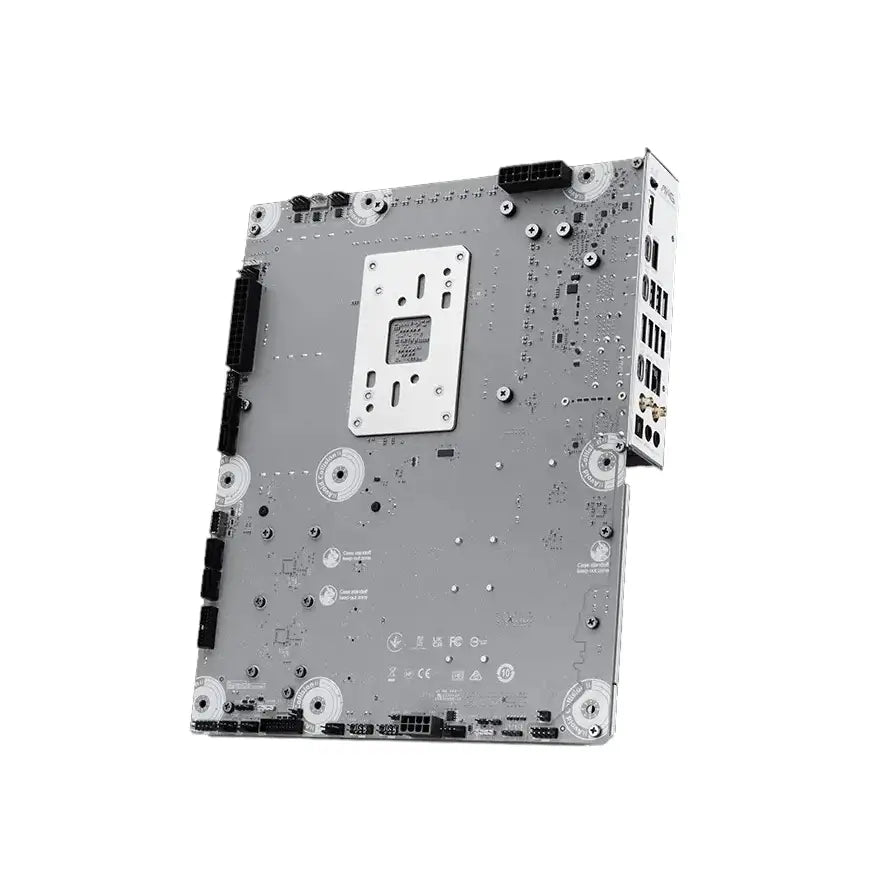

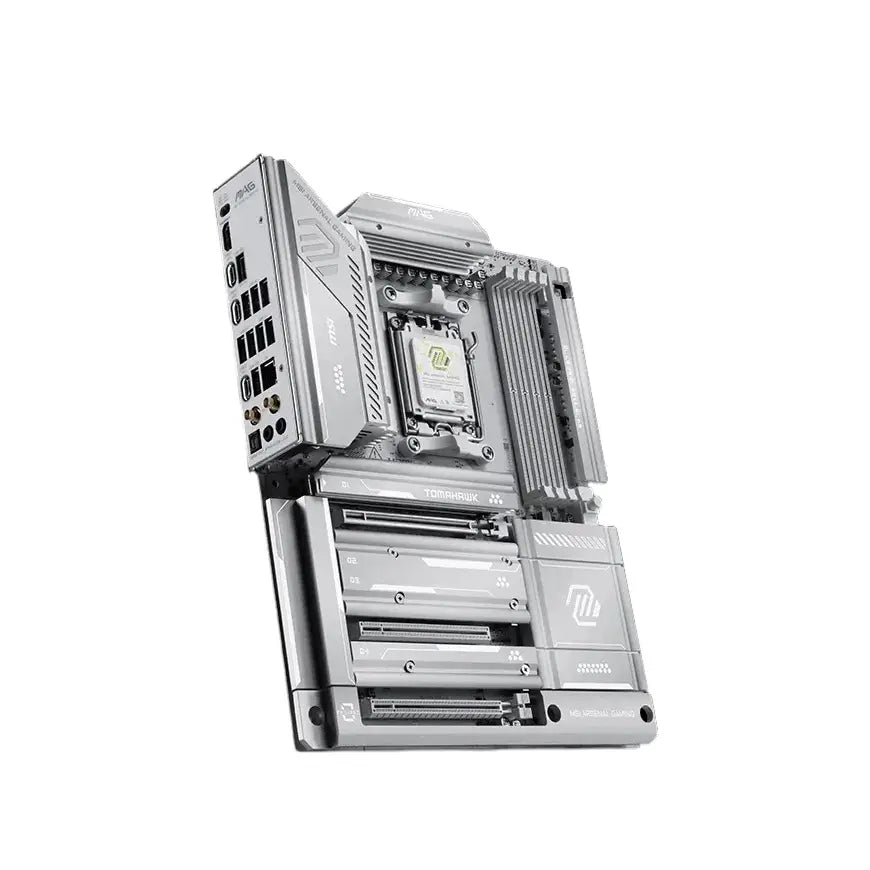

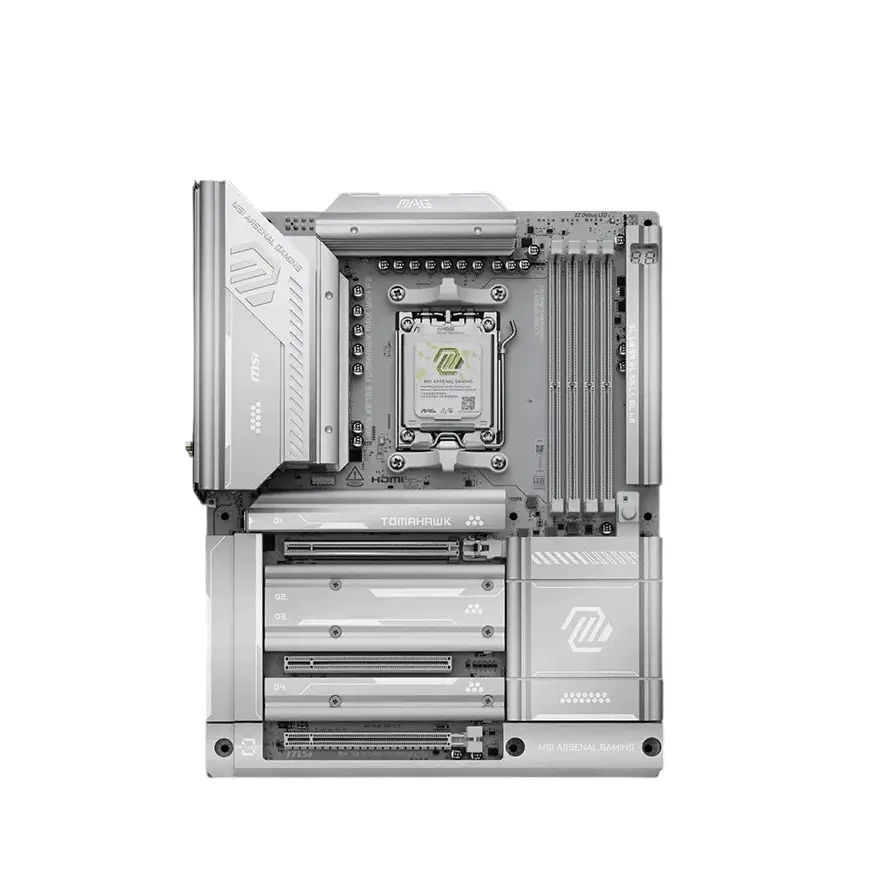

MSI | MAG X870E TOMAHAWK MAX WIFI PZ | Processor Socket Socket AM5 | Chipset Type AMD X870E

Technical details
Producer – MSI
Manufacturer - MSI
Brand - MSI
Product Line - MSI
Model - MAG X870E TOMAHAWK MAX WIFI PZ
Product Type - Motherboard

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - AMD X870E
Supported RAM Technology - DDR5 SDRAM
Processor Socket - Socket AM5
Form Factor - ATX (Back-connect design)
Supported RAM Integrity Check - Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed - 8400+(O.C.), 8266(O.C.), 8000(O.C.), 7800(O.C.), 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600(O.C.), 5400(O.C.), 5200(O.C.), 4800 MHz
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card (Realtek ALC4080)

Networking
Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4

Dimensions
Width - 30.5 cm
Depth - 24.4 cm

Interfaces
Storage - Serial ATA-600 (RAID), M.2 socket (PCIe 5.0 / 4.0)
USB / FireWire - USB4 (40Gbps), USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 2.0

RAM
Max Supported Size - 256 GB

Package features
Type of battery - Accumulator
Embeeded battery - Yes

Warranty - 36 month(s)
