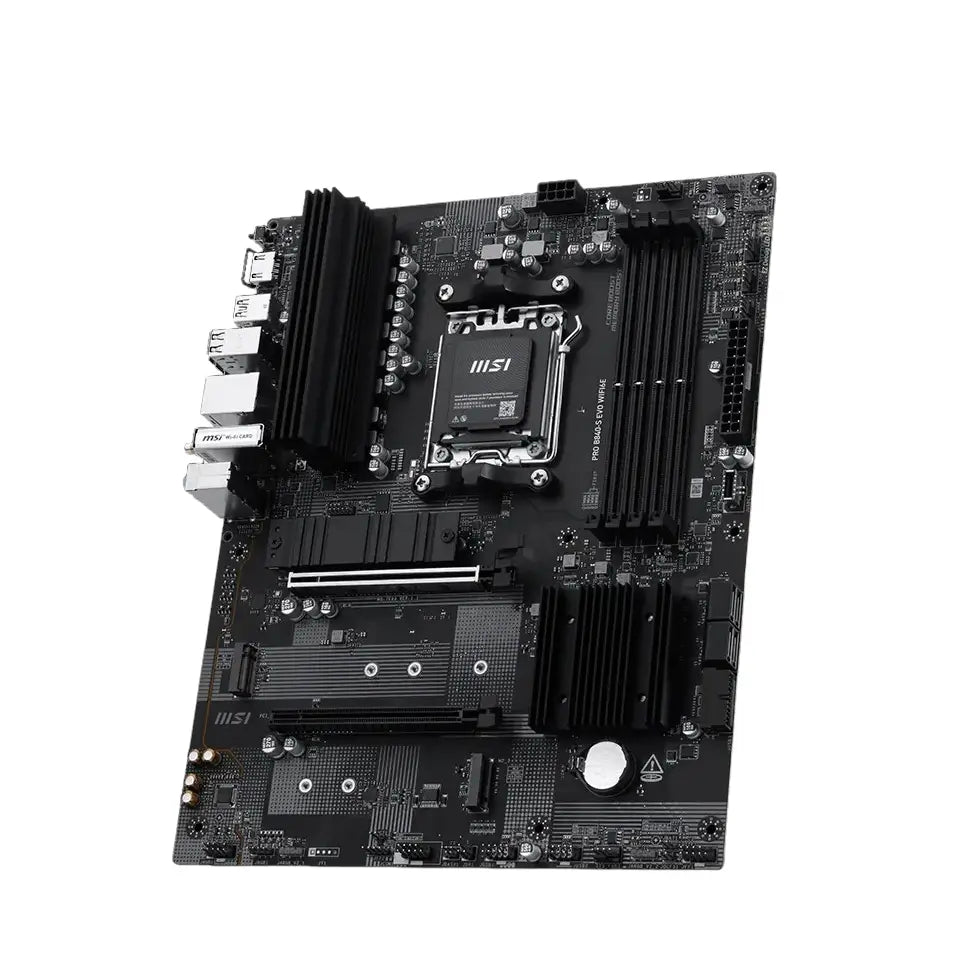

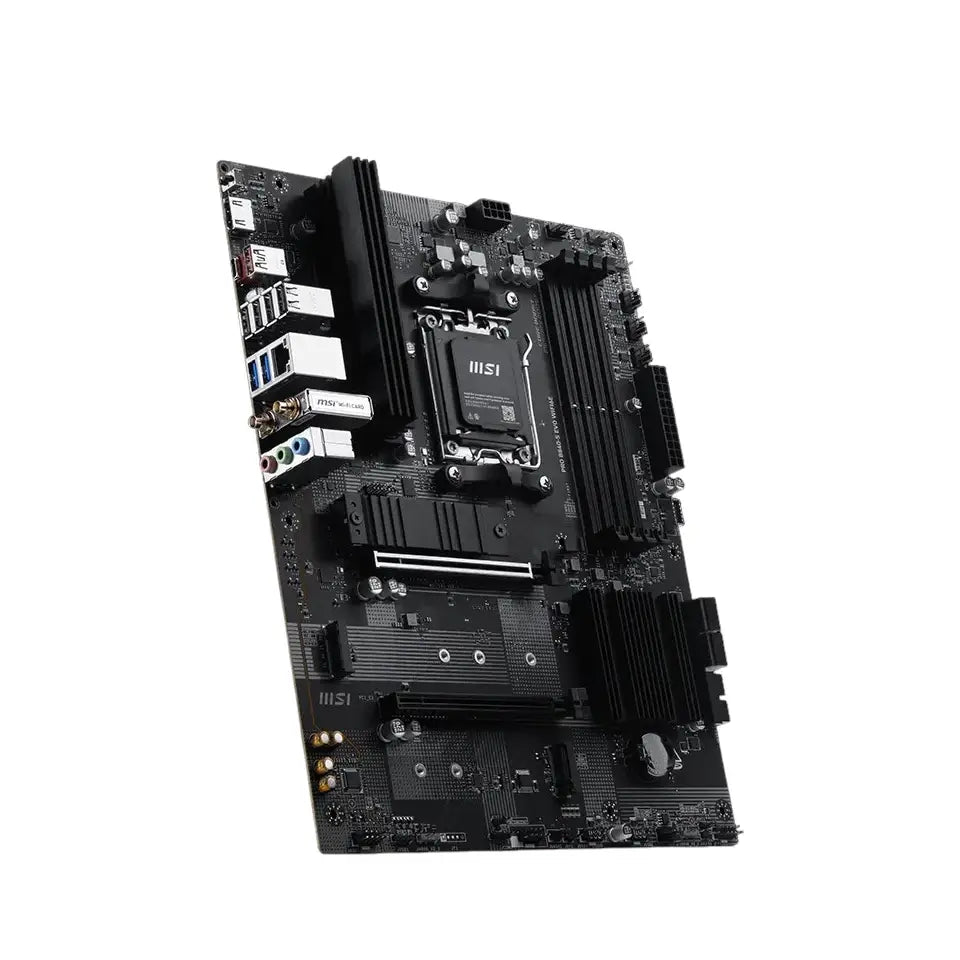

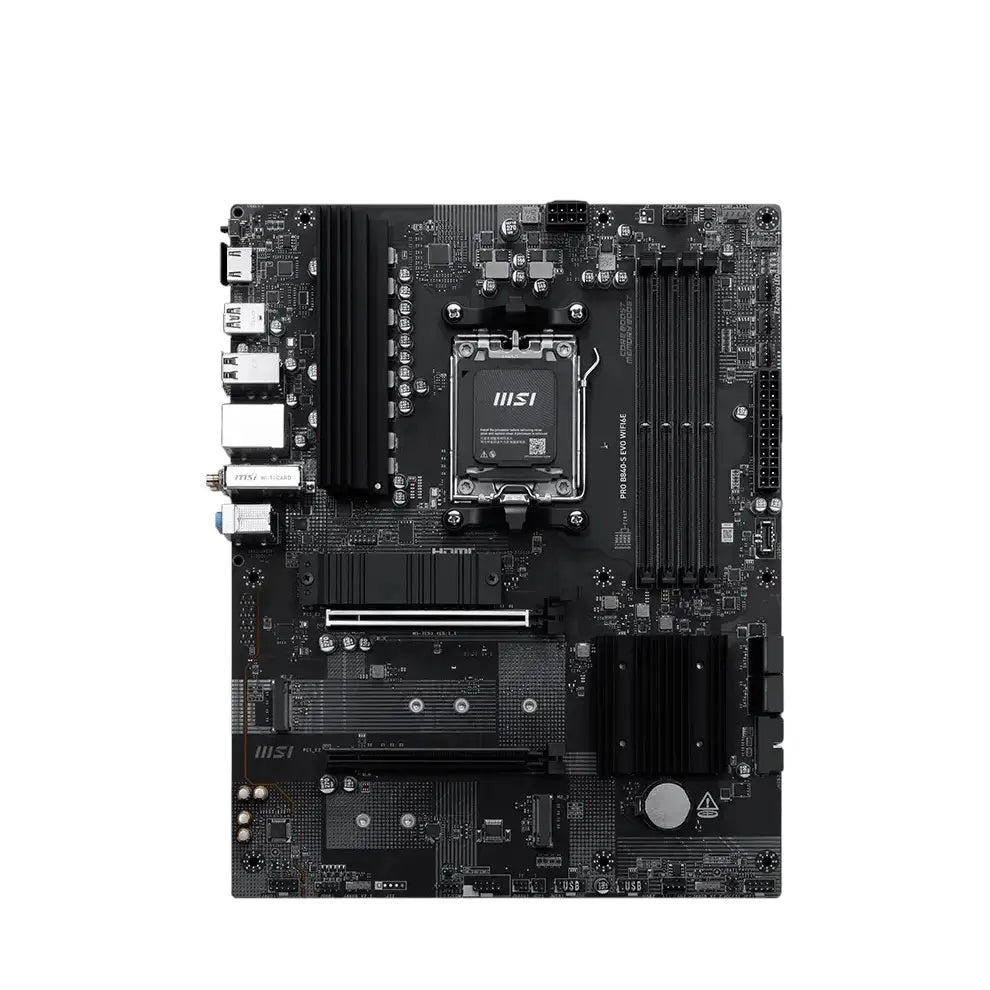

MSI | PRO B840-S EVO WIFI6E | Processor Socket Socket AM5 | Chipset Type AMD B840

Technical details
Producer – MSI
Manufacturer - MSI
Brand - MSI
Product Line - MSI
Model - PRO B840-S EVO WIFI6E
Product Type - Motherboard

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - AMD B840
Supported RAM Technology - DDR5 SDRAM
Processor Socket - Socket AM5
Form Factor - ATX
Supported RAM Integrity Check - Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed - 7200+(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600(O.C.), 5400(O.C.), 5200(O.C.), 4800 MHz
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card

Networking
Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3

Dimensions
Width - 30.5 cm
Depth - 24.4 cm

Interfaces
Storage - Serial ATA-600 (RAID), M.2 socket (PCIe 4.0)
USB / FireWire - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, USB 2.0

RAM
Max Supported Size - 256 GB

Package features
Type of battery - Accumulator
Embeeded battery - Yes

Warranty - 36 month(s)
