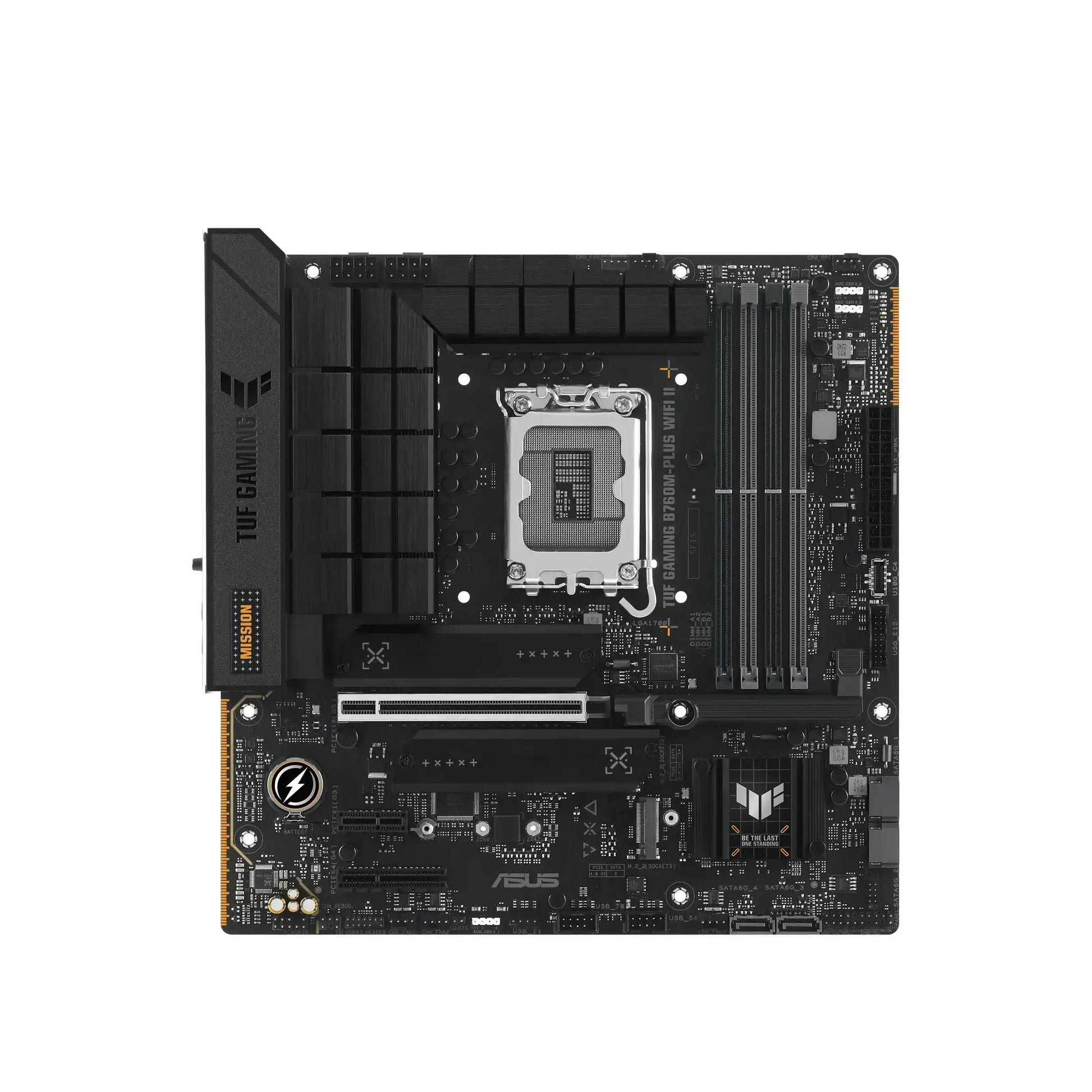

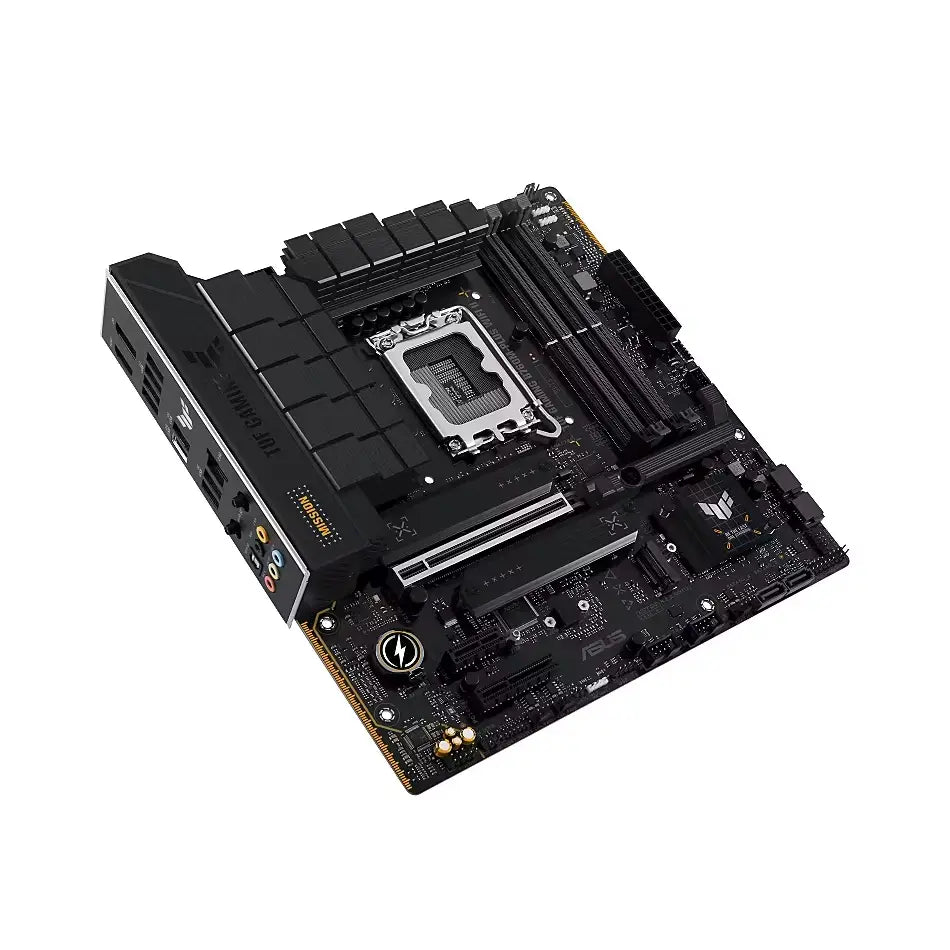

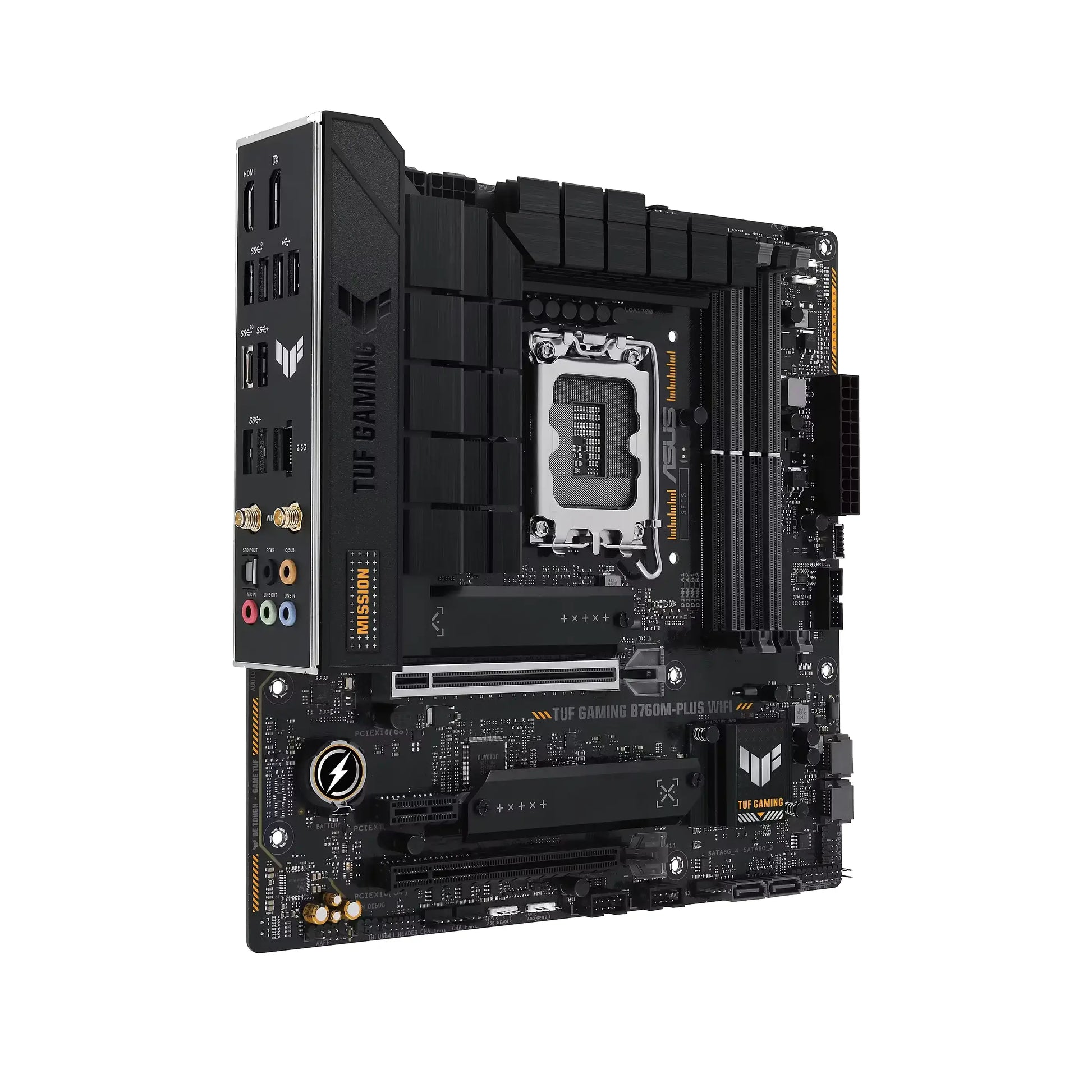

Asus | TUF GAMING B760M-PLUS WIFI II | Processor Socket LGA1700 Socket | Chipset Type Intel B760 | Supported RAM Technology DDR5 SDRAM

Technical details
Producer - Asus
Manufacturer - ASUS
Brand - ASUS
Product Line - ASUS
Model - TUF GAMING B760M-PLUS WIFI II

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - Intel B760
Supported RAM Technology - DDR5 SDRAM
Processor Socket - LGA1700 Socket
Form Factor - Micro ATX
Supported RAM Integrity Check - Non-ECC, On-die ECC
Supported RAM Speed - 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7800 MHz (O.C.)
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card

Networking
Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3

Dimensions
Width - 24.4 cm
Depth - 24.4 cm

Miscellaneous
Product Type - Motherboard

Interfaces
Storage - Serial ATA-600 (RAID), M.2 socket
USB / FireWire - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2

RAM
Max Supported Size - 192 GB

Warranty - 36 month(s)
