AXAGON | Docking station | HMC-8HLSA Multiport 9in1 USB-C Hub | 100 W | Grey

Technical details
Producer - Axagon
Brand - AXAGON
Model - HMC-8HLSA
EAN - 8595247907523
Product Type - External USB-C 9in1 docking station / hub

Performance features
Power Capacity - 100 W (USB Power Delivery 3.0 pass-through)
Technology - SuperSpeed USB 3.2 Gen 1 (5Gbps)
Input Voltage - 5 V / 9 V / 12 V / 15 V / 20 V
Output Voltage - N/A (Data/Network/Audio/Video signal routing layout)
Max Output Current - Shared downstream current limit (up to 1.5A on USB-A)

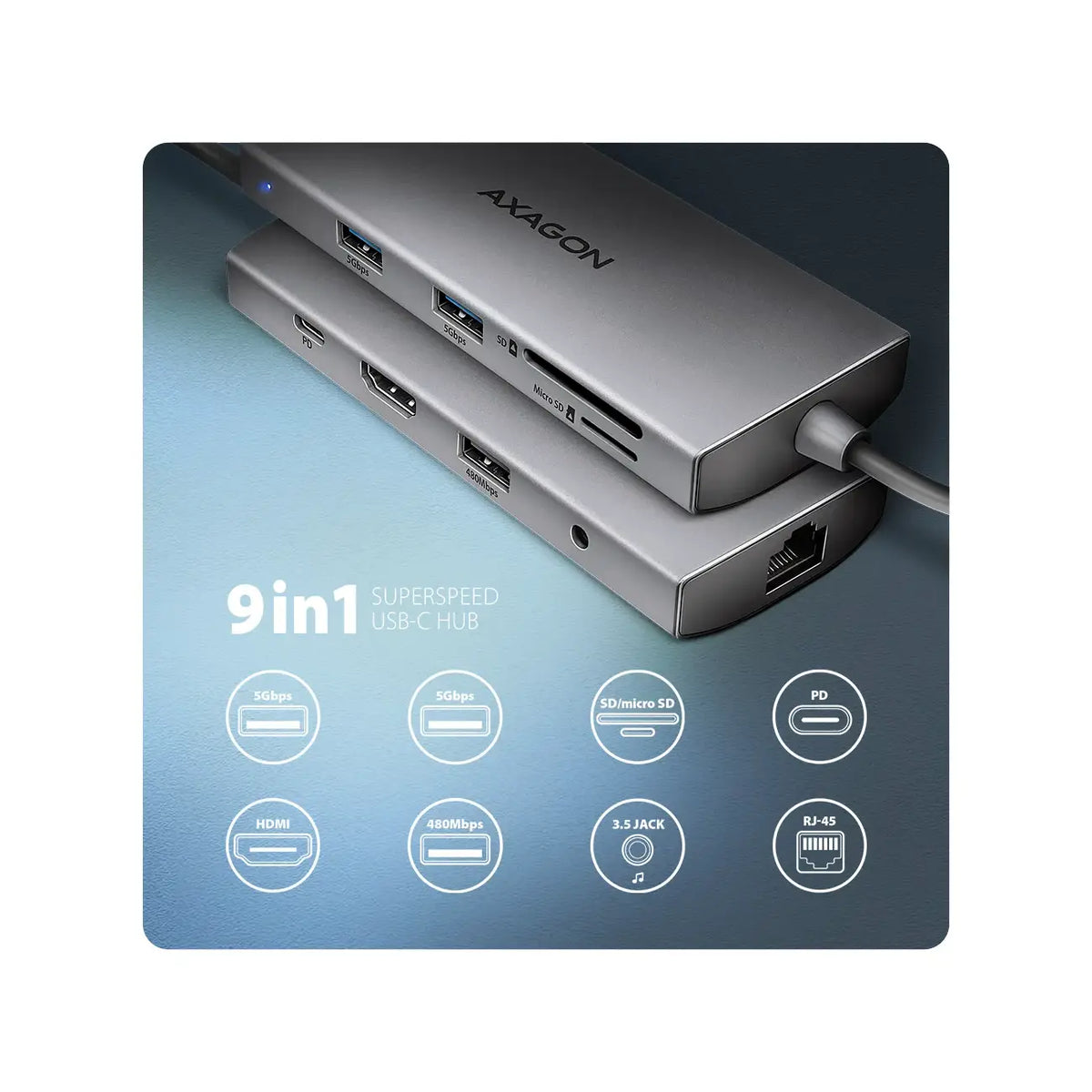

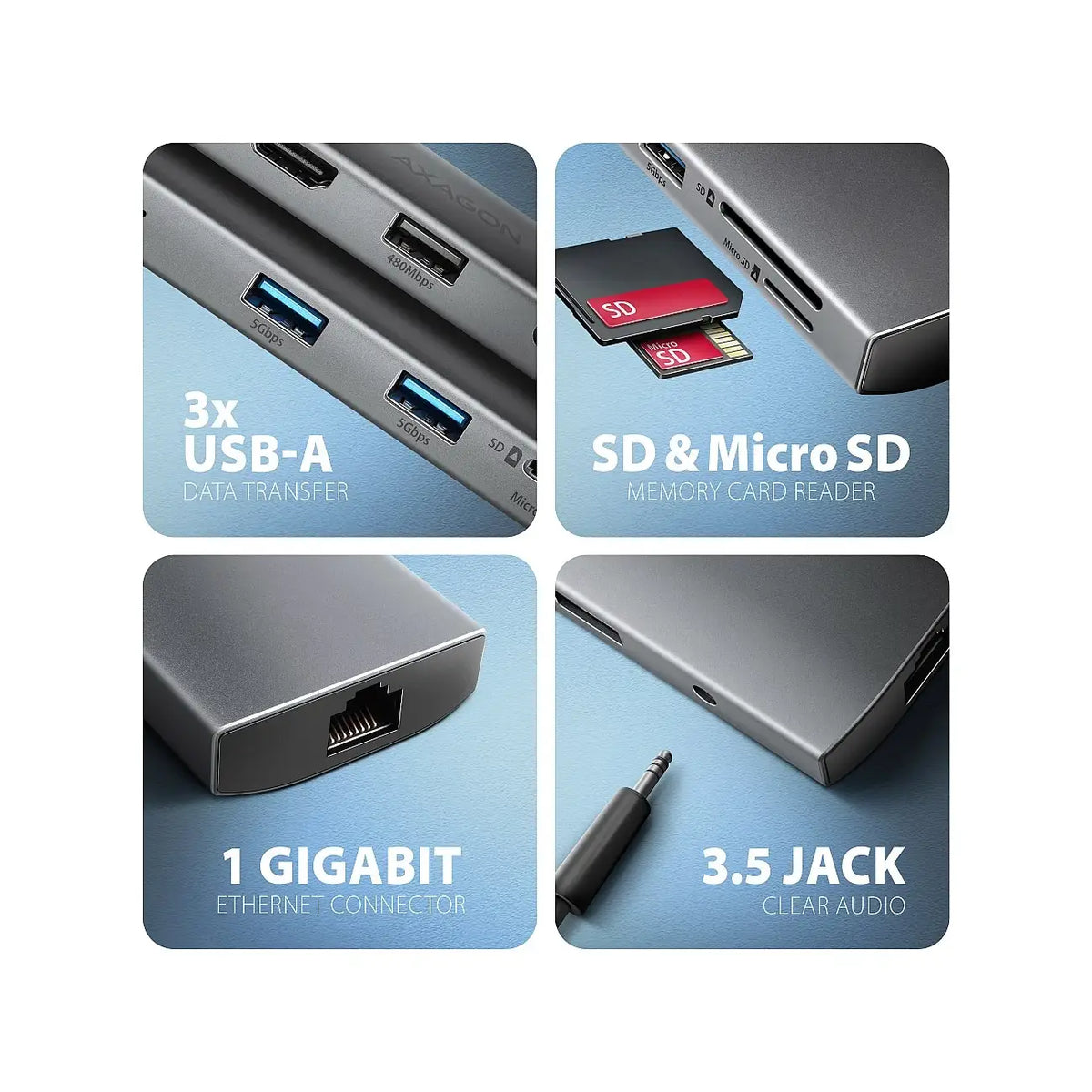

Output Connector - 1x HDMI female, 2x USB-A female (5Gbps), 1x USB-A female (480Mbps), 1x USB-C female (PD charging), 1x RJ45 Gigabit LAN, 1x 3.5 mm TRRS combo audio jack, 1x SD slot, 1x microSD slot (Input connector: 1x USB Type-C male)
Fast Charging Protocol - USB Power Delivery 3.0 (PD 3.0)
Supported features - HDMI video output up to 4K@60Hz, 2K@144Hz, FHD@240Hz, HDR10 & HDCP 1.4/2.3, Gigabit Ethernet 10/100/1000 Mbps with auto-negotiation and WoL, dual LUN SD/microSD card reader (UHS-I up to 104 MB/s) with card-to-card copy, 3.5mm stereo combo audio port, USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3 & 4 host compatibility, Plug & Play

Design & Compatibility
Colour - Grey
Housing Material - Heavy-duty matte structural aluminum casing for optimal passive heat dissipation
Function LED - Status / Power constant blue LED indicator
Power Cable - Non-detachable high-quality shielded USB-C interface link cable (0.2 m length)
Device Dimensions - 118 x 46 x 15 mm
OS Support - Microsoft Windows 10 / 11 and later, Apple macOS, Linux, Google Chrome OS, Android (DP Alt Mode video support required on the host motherboard)

Dimensions & Weight
Net weight - 0.088 kg
Gross weight - 0.145 kg

Warranty – 24 month(s)
