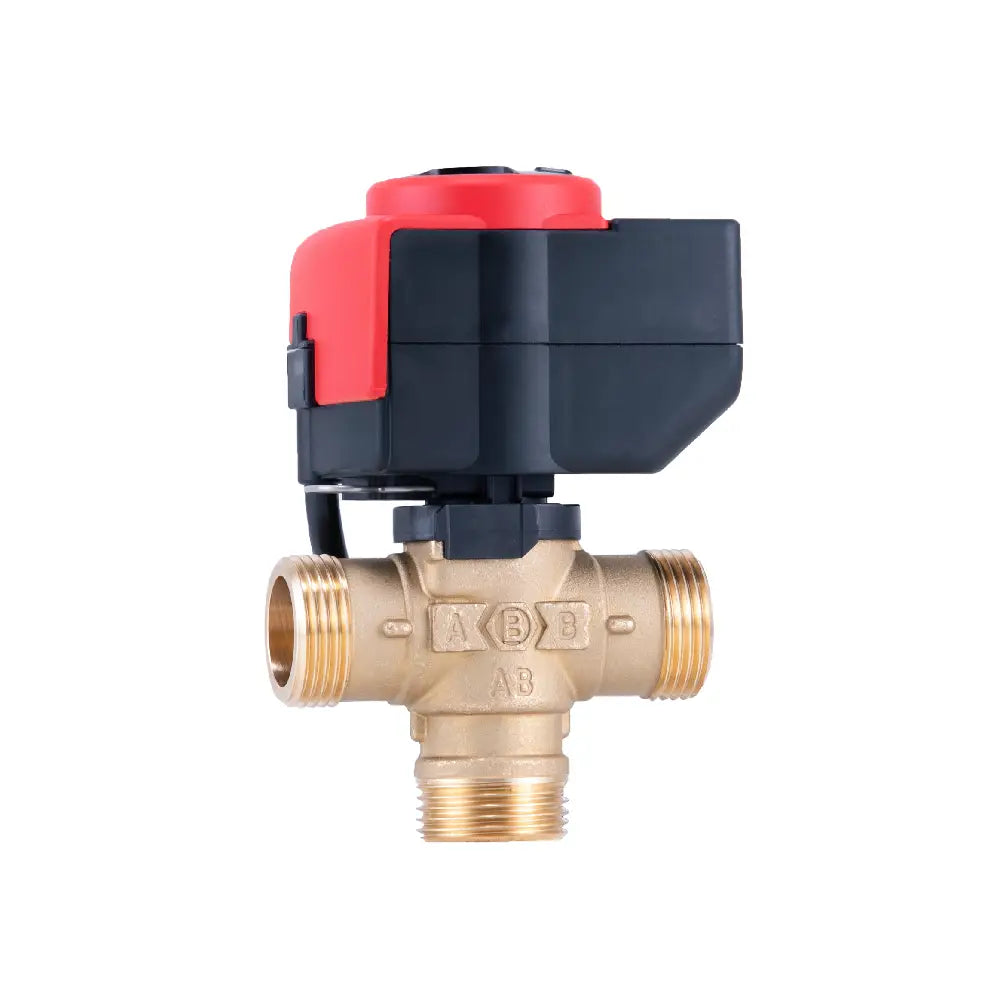

Barberi | Three-way flow distribution valve DN 25 with e-drive (G 1" M)

Technical details
Producer - Barberi
Producer product name - Three-way flow distribution valve DN 25 with e-drive
EAN - 2000001354872
MPN - V83AM3WAD C
Product line - BS5 Zone and diverting valves
Model - V83AM3WADC (V83.W.2PM)
Product type - Three-way motorized zone and diverting valve
Connections - G 1" M (Male thread, ISO 228-1)
Nominal size - DN 25
Flow coefficient (Kv) - 8.0
Running time - 8 s
Rotation angle - 90°
Working temperature range - 0–90 °C (no frost)
Maximum working pressure - 10 bar
Maximum differential pressure - 1 bar
Leakage - <0.1% of Kv
Suitable fluids - Water for thermal systems, glycol solutions (max 30%)
Features - Soft-Torque technology (low friction), fast clip coupling, manual override knob, auxiliary microswitch
Electric supply - 230 V (±10%) AC / 50–60 Hz
Power consumption - 6 VA
Protection class - IP 44
Electrical protection - Class II (double insulated)
Auxiliary microswitch rating - 1 SPST, 6(1) A - 230 V
Cable length - 0.9 m (integrated, 5 poles)
Battery - No

Dimensions & Weight
Net weight - 2.5 kg
