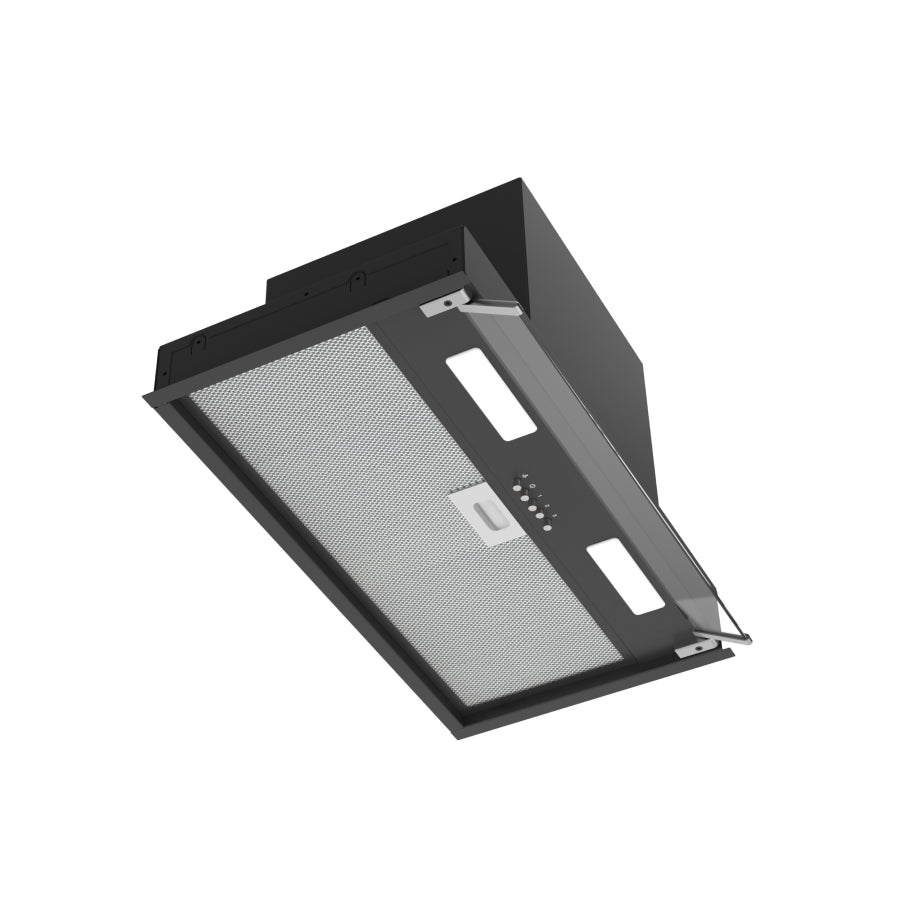

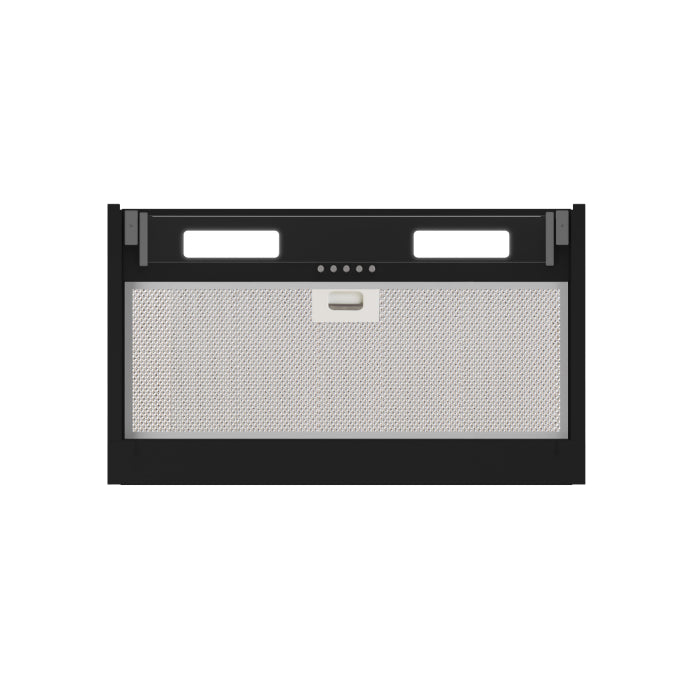

CATA | ARMONIA 60 BK | Integrated Hood | 645 m³/h | 3 Speeds | LED | Black

Technical details
Producer – CATA
Product type – Canopy Hood
Product line – ARMONIA
Model – ARMONIA 60 BK

Design
Colour – Black
Hood type – Integrated / Canopy

Performance
Maximum extraction rate – 645 m³/h
Minimum extraction rate – 385 m³/h
Number of speed settings – 3
Motor quantity – 1
Motor model – TA
Maximum pressure – 430 Pa
Airflow at best efficiency point – 375.3 m³/h
Power consumption at best efficiency point – 188.8 W

Operation
Extraction – Yes
Recirculation – No

Filtration
Filter technology – Aluminium mesh

Controls
Control type – Mechanical push button
Timer – No
Display – No
Remote control – No
Connectivity – No

Lighting
Light technology – LED
Light model – CSLED
Lighting efficiency class – B
Lighting efficiency – 21.4 lux/W
Lighting system power – 6 W
Average illuminance – 269 lux

Energy Efficiency
Energy efficiency class – C
Fluid dynamic efficiency class – D
Fluid dynamic efficiency – 16.3
Grease filtering efficiency class – D
Grease filtering efficiency – 64.8%
Annual energy consumption – 100.9 kWh/year
Power consumption off-mode – 0 W
Power consumption standby mode – 0 W

Noise
Minimum noise level – 56 dB(A)
Maximum noise level – 70 dB(A)

Power
Nominal voltage – 230–240 V
Nominal frequency – 50 Hz
Nominal input power – 276 W
Electric shock protection – Class II
Plug type – No plug

Installation
Minimum distance to electric hob – 45 cm
Minimum distance to gas hob – 65 cm
Outlet diameter – 150 / 125 mm

Dimensions & Weight
Width – 79.8 cm
Depth – 31 cm
Height – 28 cm
Net weight – 8 kg

Accessories
Upper decorative duct extension – 02861307
Activated charcoal filter – 02859392
Noiseless flexible duct – 02893002

Warranty – 24 month(s)
