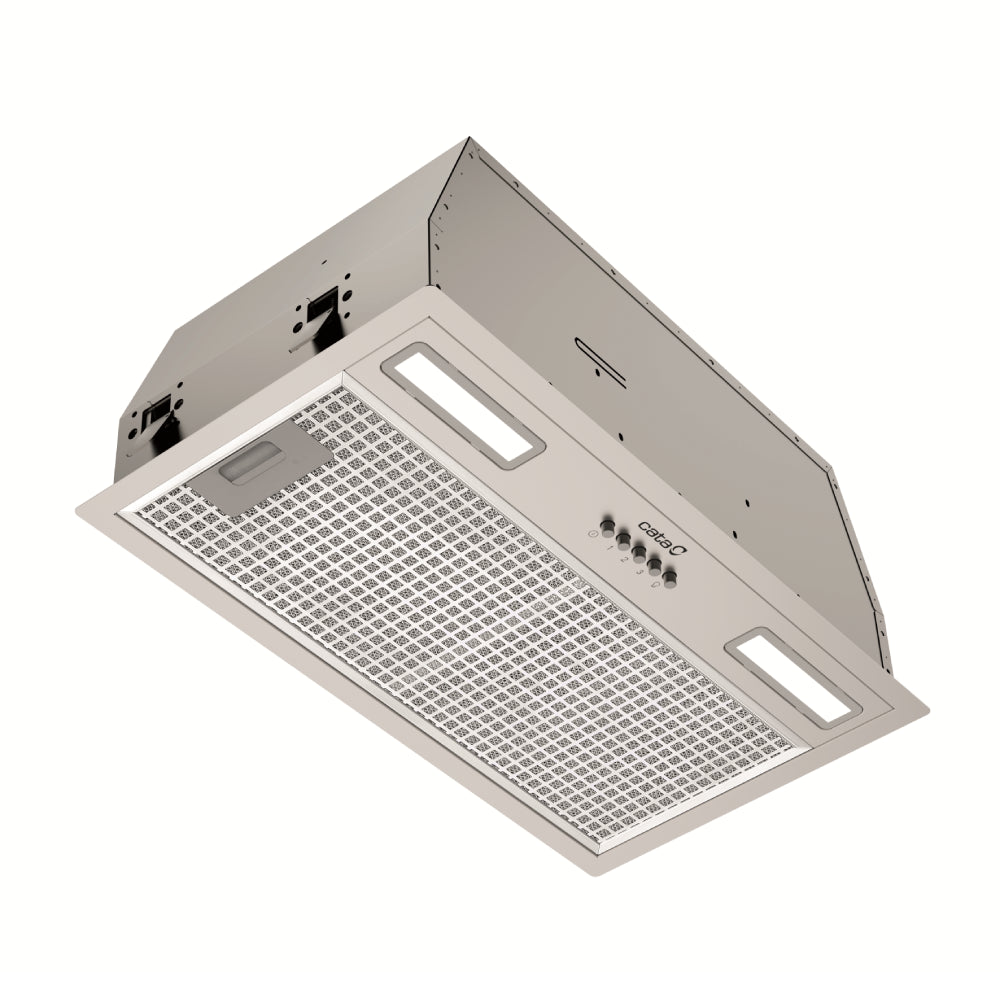

CATA | GA 52 LUX | Canopy Hood | 403 m³/h | 3 Speeds | LED | Stainless Steel

Technical details
Producer – CATA
Product type – Canopy Hood
Product line – CATA GA
Model – GA 52 LUX

Design
Colour – Stainless Steel
Hood type – Canopy

Performance
Maximum extraction rate – 403 m³/h
Minimum extraction rate – 217 m³/h
Number of speed settings – 3
Motor type – Brushless
Motor power – 50 W

Operation
Extraction – Yes
Recirculation – Yes
Recirculation kit – Additional kit required

Filtration
Filter type – Metallic
Active charcoal filter – Optional
Active charcoal filter code – 02800063
Metallic filter code – 02800061

Controls
Control type – Mechanical
Number of speed settings – 3

Lighting
Light type – LED strip
Lighting efficiency class – A
Lighting efficiency – 60 lux/W

Energy Efficiency
Energy efficiency class – A
Fluid dynamic efficiency class – C
Fluid dynamic efficiency – 19
Grease filtering efficiency class – C
Grease filtering efficiency – 75.3%
Annual energy consumption – 19.8 kWh/year
Power consumption off-mode – 0.48 W

Noise
Minimum noise level – 56 dB(A)
Maximum noise level – 67 dB(A)

Power
Voltage – 220–240 V
Frequency – 50 Hz
Maximum motor power consumption – 50 W

Installation
Outlet diameter – 150 mm

Dimensions & Weight
Width – 52 cm
Depth – 29 cm
Height – 19.5 cm
Net weight – 8.5 kg

Warranty – 24 month(s)
