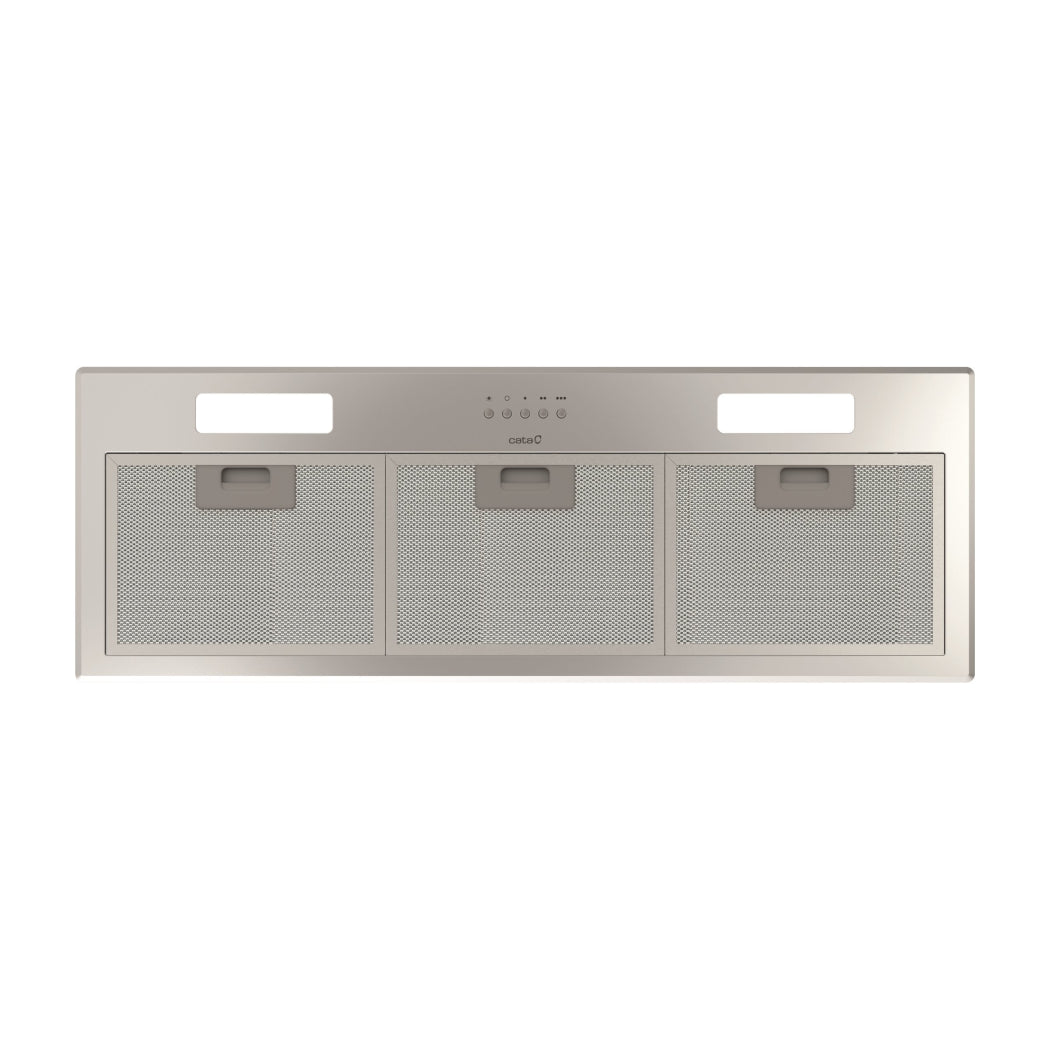

CATA | GT-PLUS 75 X /M | Canopy Hood | 645 m³/h | 3 Speeds | EcoLED | Stainless Steel

Technical details
Producer – CATA
Product type – Canopy Hood
Product line – GT-PLUS
Model – GT-PLUS 75 X /M

Design
Colour – Stainless Steel
Hood type – Canopy
Material – Stainless steel

Performance
Maximum extraction rate – 645 m³/h
Minimum extraction rate – 300 m³/h
Number of speed settings – 3
Motor type – BT2
Maximum motor power – 200 W
Maximum pressure – 400 Pa
Airflow at best efficiency point – 358.1 m³/h
Pressure at best efficiency point – 270 Pa
Power input at best efficiency point – 164.9 W

Operation
Extraction – Yes
Recirculation – Yes
Recirculation kit – Additional kit required
Easy installation system – Yes

Filtration
Filter type – Metallic
Number of grease filters – 2
Dishwasher-washable filters – Yes
Active charcoal filter – Optional
Active charcoal filter code – 02859398
Check valve – Optional
Check valve code – 02832004

Controls
Control type – Mechanical
Automatic shut-down timer – No
Filter saturation indicator – No
Touch control – No

Lighting
Light type – EcoLED
Number of lamps – 2
Lighting power – 6 W
Lighting efficiency class – A
Lighting efficiency – 28.3 lux/W
Average illuminance – 170 lux

Energy Efficiency
Energy efficiency class – C
Fluid dynamic efficiency class – D
Fluid dynamic efficiency – 16.3
Grease filtering efficiency class – B
Grease filtering efficiency – 91.2%
Annual energy consumption – 88.6 kWh/year
Power consumption off-mode – 0 W
Power consumption standby – 0 W

Noise
Minimum noise level – 50 dB(A)
Maximum noise level – 65 dB(A)

Power
Voltage – 220–240 V
Frequency – 50 Hz
Total connected power – 206 W
Electrical insulation class – Class II
Plug – EU 2-pin

Installation
Outlet diameter – 150 / 125 mm
Minimum distance to electric hob – 55 cm
Minimum distance to gas hob – 65 cm

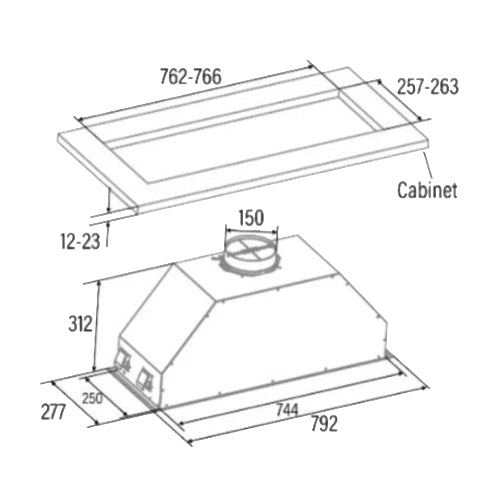

Dimensions & Weight
Width – 79.2 cm
Depth – 27.7 cm
Height – 31.2 cm
Net weight – 7.42 kg

Warranty – 36 month(s)
