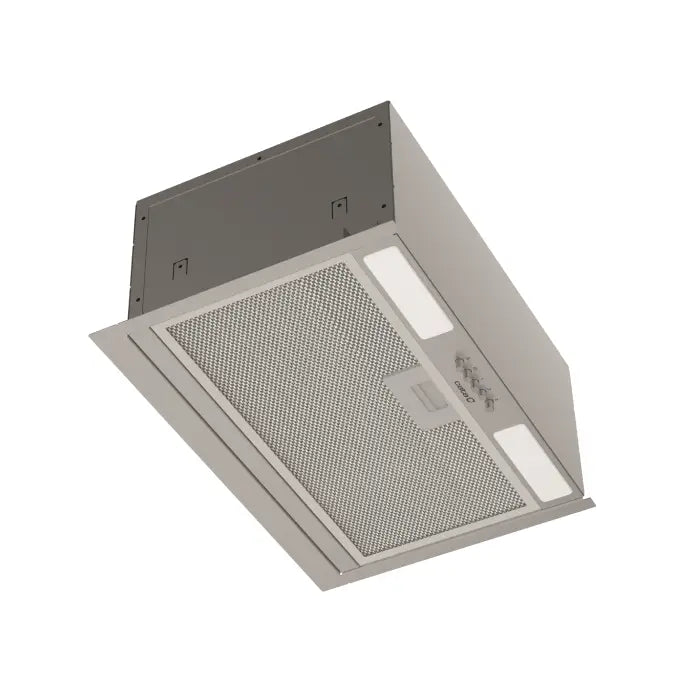

CATA | RITMA | 45 X | Integrated Hood | 480.5 m³/h | 3 Speeds | Stainless Steel

Technical details
Producer – CATA
Product type – Integrated Hood
Product line – RITMA
Model – 45 X

Design
Colour – Stainless Steel
Hood type – Integrated

Performance
Maximum extraction rate – 480.5 m³/h
Minimum extraction rate – 21.6 m³/h
Number of speed settings – 3
Maximum pressure – 294.3 Pa
Motor quantity – 1
Motor model – K10 450 B

Operation
Extraction – Yes
Recirculation – Yes
Activated charcoal filter – Optional
Activated charcoal filter code – 02859489

Filtration
Filter technology – Aluminium mesh

Controls
Control type – Mechanical slider
Timer – No
Display – No
Remote control – No

Lighting
Light technology – LED
Light model – CSLED
Lighting efficiency class – B
Lighting efficiency – 21.4 lux/W
Rated lighting power – 6 W

Energy Efficiency
Energy efficiency class – A
Fluid dynamic efficiency class – B
Fluid dynamic efficiency – 26.4
Grease filtering efficiency class – D
Grease filtering efficiency – 64.8%
Annual energy consumption – 24 kWh/year

Noise
Minimum noise level – 53 dB(A)
Maximum noise level – 69.7 dB(A)

Power
Voltage – 220–240 V
Frequency – 50 Hz
Connected power – 116 W
Plug – No plug
Power cord length – 1 m

Installation
Outlet diameter – 150 mm
Minimum distance to electric hob – 45 cm
Minimum distance to gas hob – 65 cm

Dimensions & Weight
Width – 44.5 cm
Depth – 27 cm
Height – 17 cm

Warranty – 24 month(s)
