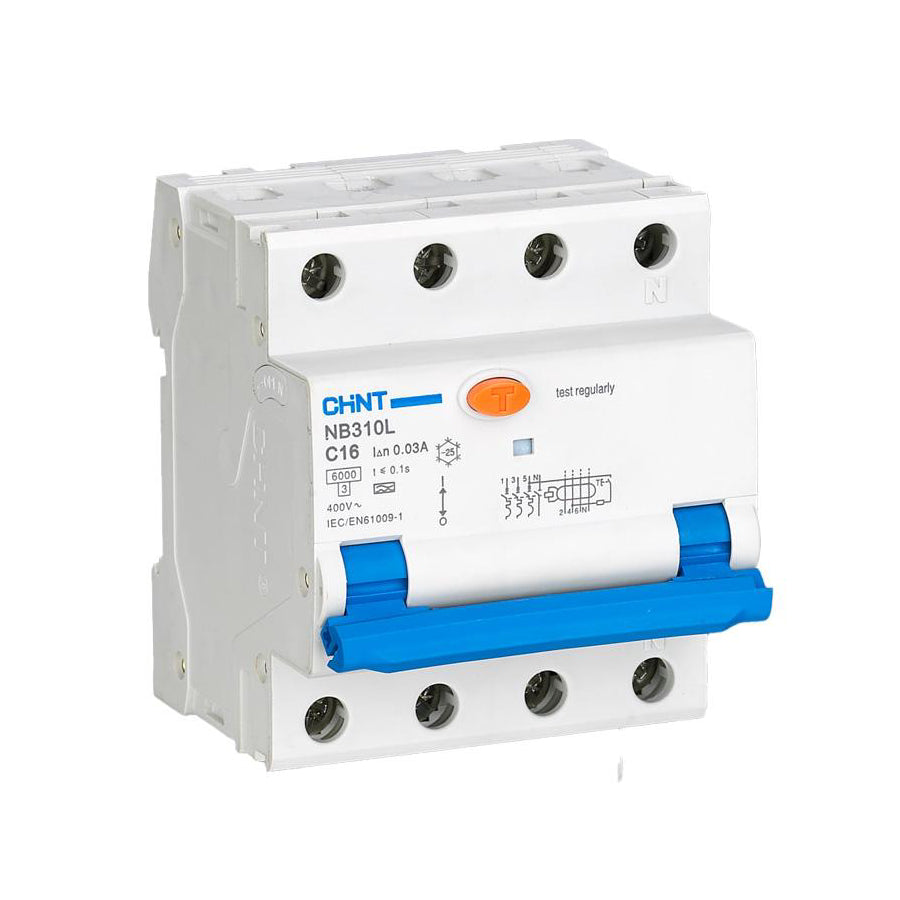

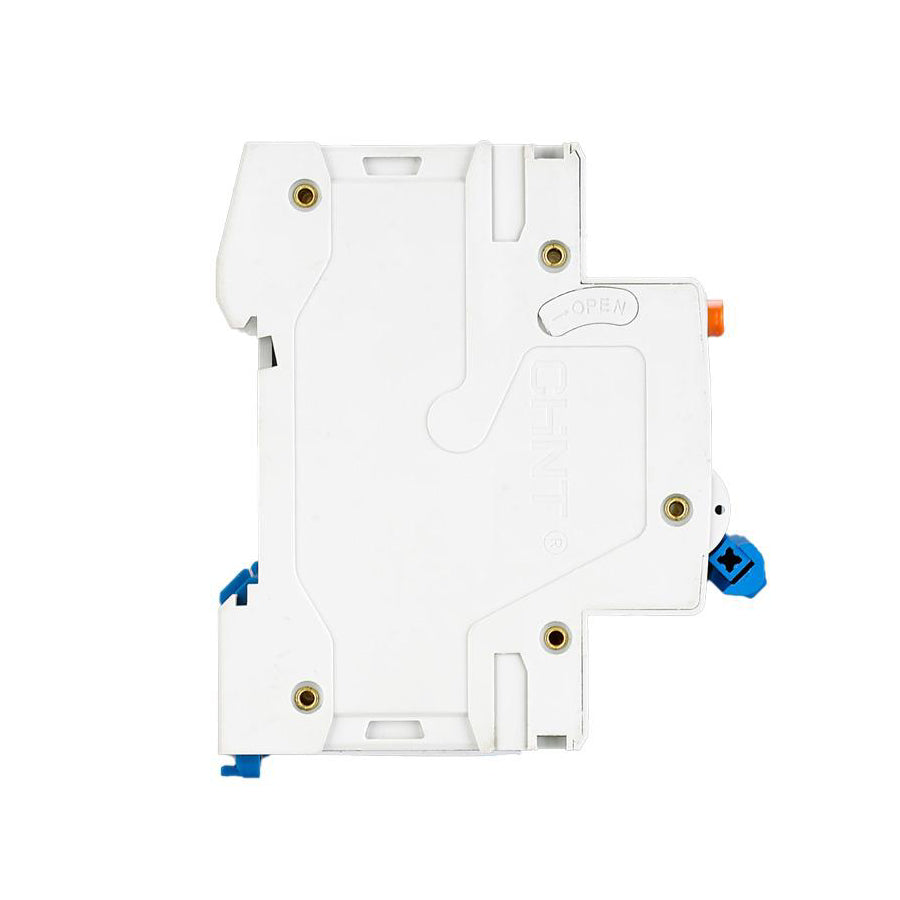

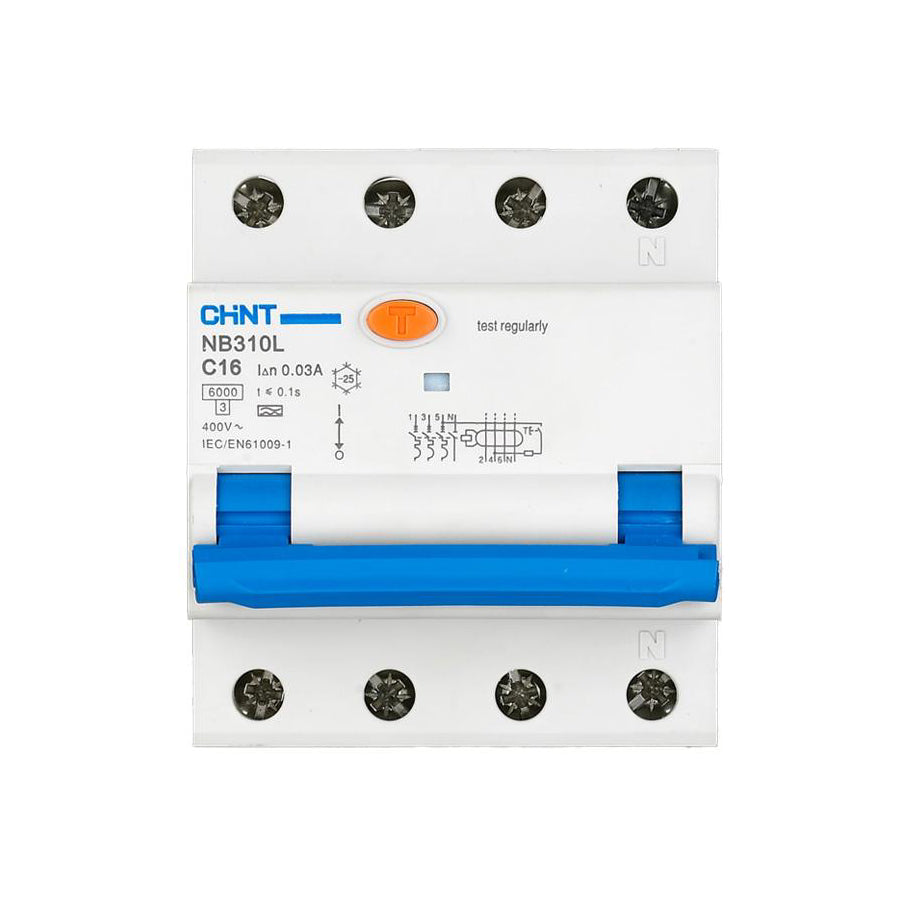

Chint | NB310L3PN30MAA20C | Residual Current Circuit Breaker (RCBO) | 3P+N | C20 | 30 mA | Type A | 6 kA

Product code: 379855

Chint | NB310L3PN30MAA20C | Residual Current Circuit Breaker (RCBO) | 3P+N | C20 | 30 mA | Type A | 6 kA

78,07 €
78,07 €
Import duties and taxes may apply outside the EU. Mains-powered products are supplied with an EU plug. Final Shipping calculated at checkout.
Order before 15:00 (EET/EEST) Dispatch within 1–2 business days
View full details

Main specifications

Technical Details
Producer – Chint
Product Type – Residual Current Circuit Breaker (RCBO)
MPN – NB310L3PN30MAA20C
Product Family – NB310L/3N
Poles – 3P+N
Rated Current – 20 A
Tripping Characteristic – C
Residual Current Rating – 30 mA
RCD Type – A
Breaking Capacity – 6 kA

Protection
Overload Protection – Yes
Short-Circuit Protection – Yes
Residual Current Protection – Yes
Residual Current Sensitivity – 30 mA
Type A Residual Current Detection

Installation
Mounting Type – DIN Rail
Suitable for – Three-Phase Electrical Installations with Neutral

Features
Combines circuit breaker and residual current protection in one device
Protects against overload and short circuit
Protects against residual current and electric shock
Compact DIN rail installation

Dimensions & Weight
Net Weight – 0.27 kg
