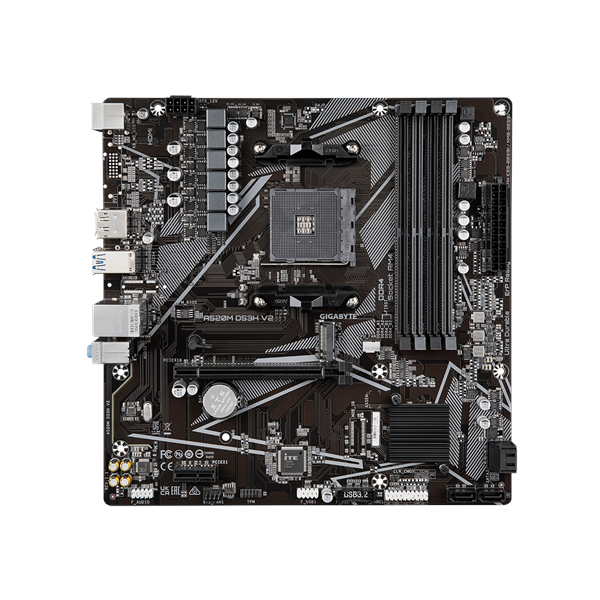

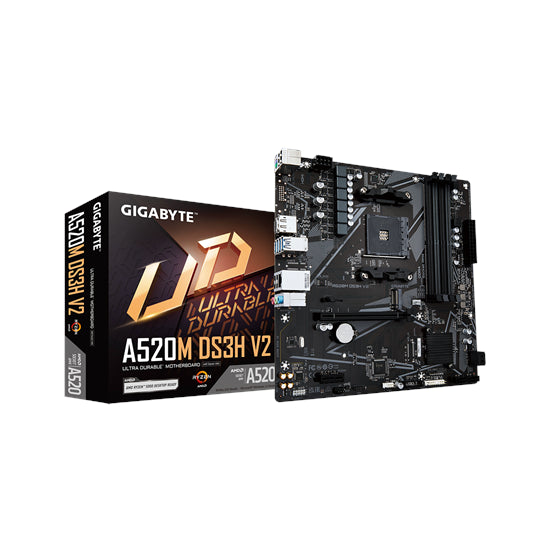

Gigabyte | A520M DS3H V2 | AMD A520 | Socket AM4 | DDR4 | Micro ATX

Technical Details
Producer - Gigabyte
Brand - GIGABYTE
Product Line - Gigabyte
Model - A520M DS3H V2
MPN - A520M DS3H V2
Type - Motherboard
Manufacturer - GIGABYTE
Chipset Type - AMD A520
Processor Socket - Socket AM4
Form Factor - Micro ATX

Memory
Supported RAM Technology - DDR4
Memory Slots - 4 x DDR4 DIMM
Maximum Memory - 128 GB
Memory Architecture - Dual Channel
Supported Memory Speed - Up to DDR4 4733 MHz (O.C.)
ECC Memory - Yes
Non-ECC Memory - Yes
Registered / Buffered - Unbuffered
XMP Support - Yes

Expansion Slots
PCI Express x16 - 1
PCI Express x1 - 1
PCI Express x16 Version - PCIe 3.0
PCI Express x1 Version - PCIe 3.0

Storage
M.2 Socket - 1
M.2 Interface - PCIe 3.0 x4/x2 and SATA
M.2 Form Factor - 2280
SATA Ports - 4 x SATA 6Gb/s
RAID Support - RAID 0, RAID 1, RAID 10

Video Output
DisplayPort - 1
HDMI - 1
Maximum DisplayPort Resolution - 5120 x 2880 @ 60 Hz
Maximum HDMI Resolution - 4096 x 2160 @ 60 Hz
DisplayPort Version - 1.4
HDMI Version - 2.1
HDCP - Yes
HDR Support - Yes

Networking
LAN - Realtek GbE LAN
Data Link Protocol - Ethernet
Data Link Speed - 10/100/1000 Mbps

Audio
Audio Codec - Realtek Audio CODEC
Audio Channels - 2/4/5.1/7.1-channel
Audio Features - High Definition Audio, Audio Noise Guard, High-End Audio Capacitors

Interfaces
PS/2 - 1
USB 3.2 Gen 1 - 4 x rear, 2 x internal header
USB 2.0/1.1 - 4 x rear, 2 x internal header
RJ-45 - 1
Audio Jacks - 3
M.2 - 1
SATA 6Gb/s - 4

Features
Smart Fan 5 with FAN STOP
Digital VRM Solution
GbE LAN with Bandwidth Management
Q-Flash
XMP Support
Anti-Sulfur Resistors Design
Supports Windows 11 64-bit
Supports Windows 10 64-bit

Dimensions
Width - 24.4 cm
Depth - 24.4 cm
Height - Not specified

Warranty - 24 month(s)
