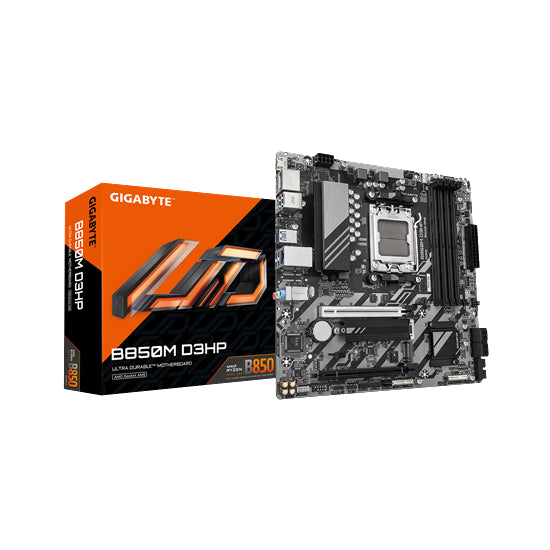

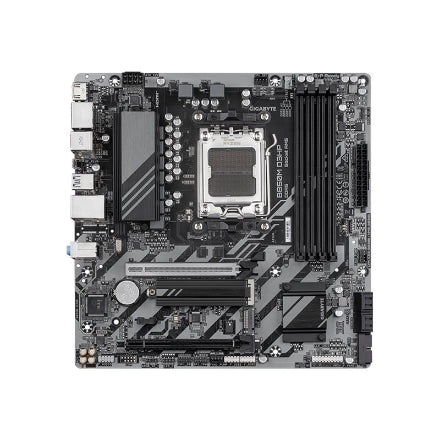

GIGABYTE | B850M D3HP | AMD B850 | Socket AM5 | DDR5 | Micro ATX

Product code: 461069

GIGABYTE | B850M D3HP | AMD B850 | Socket AM5 | DDR5 | Micro ATX

142,79 €
142,79 €
Import duties and taxes may apply outside the EU. Mains-powered products are supplied with an EU plug. Final Shipping calculated at checkout.
Order before 15:00 (EET/EEST) Dispatch within 1–2 business days
View full details

Main specifications

Technical Details
Producer - Gigabyte
Brand - GIGABYTE
Product Line - Gigabyte
Model - B850M D3HP
MPN - B850M D3HP
Type - Motherboard
Manufacturer - GIGABYTE

Mainboard
Chipset - AMD B850
Processor Socket - Socket AM5
Compatible Processors - AMD Ryzen 7000 / 8000 / 9000 Series
Form Factor - Micro ATX
Memory Technology - DDR5 SDRAM
Memory Slots - 4 x DDR5 DIMM
Maximum Supported Memory - 256 GB
Memory Architecture - Dual Channel
Memory Type - Non-ECC Unbuffered
Memory Speed - Up to DDR5-8200 (OC)

Video Output
Graphics Adapter - Integrated graphics via compatible CPU
HDMI - 1
DisplayPort - 2
Maximum Resolution - Up to 4096 x 2160 @ 60 Hz via HDMI
Maximum Displays - Up to 3

Audio Output
Audio - Realtek High Definition Audio
Channels - Up to 7.1-channel

Networking
Ethernet - Gigabit Ethernet
LAN Controller - Realtek GbE

Interfaces
PCIe - 1 x PCIe 5.0 x16
PCIe - 1 x PCIe 3.0 x4
M.2 - 2 slots
SATA - 4 x SATA 6 Gb/s
USB - USB 3.2 Gen 1 Type-C
USB - USB 3.2 Gen 1
USB - USB 2.0
RAID - RAID 0, RAID 1, RAID 5, RAID 10

Dimensions & Weight
Dimensions - 24.4 x 24.4 cm
Net Weight - 1.00 kg

Warranty - 36 month(s)
