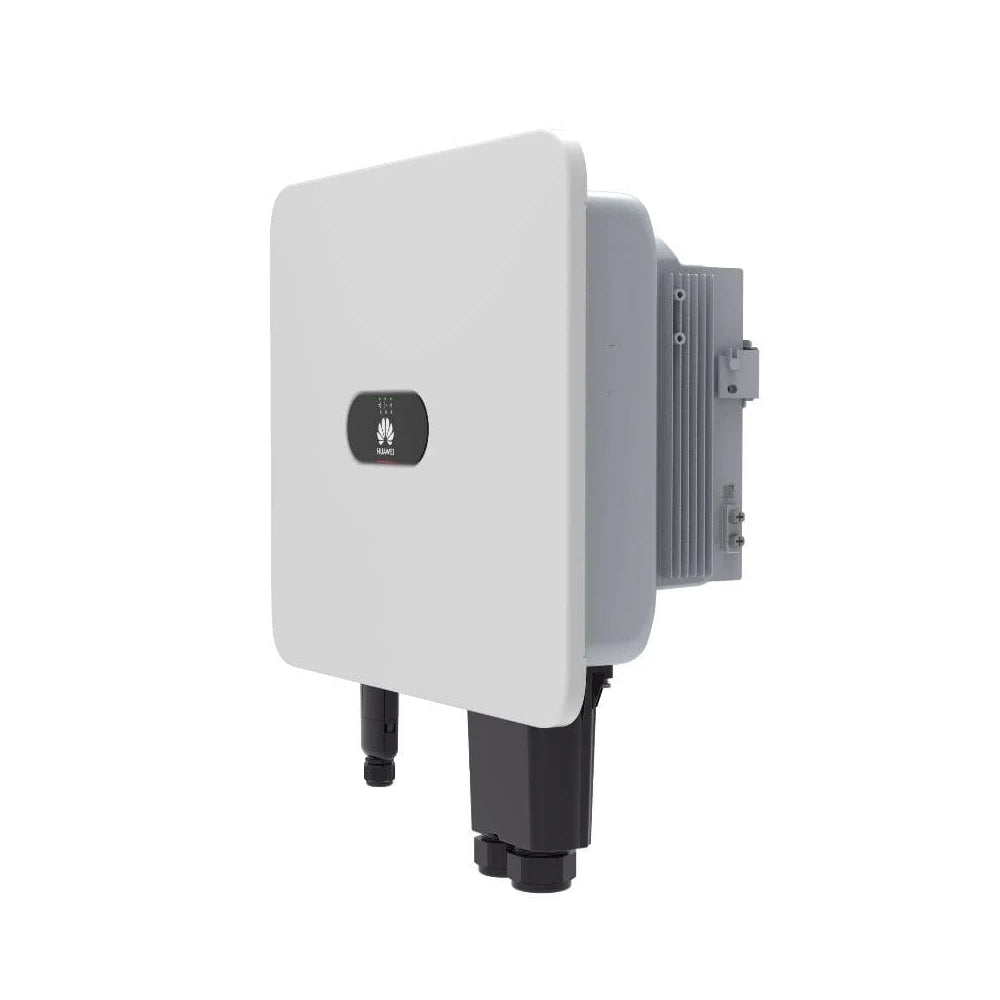

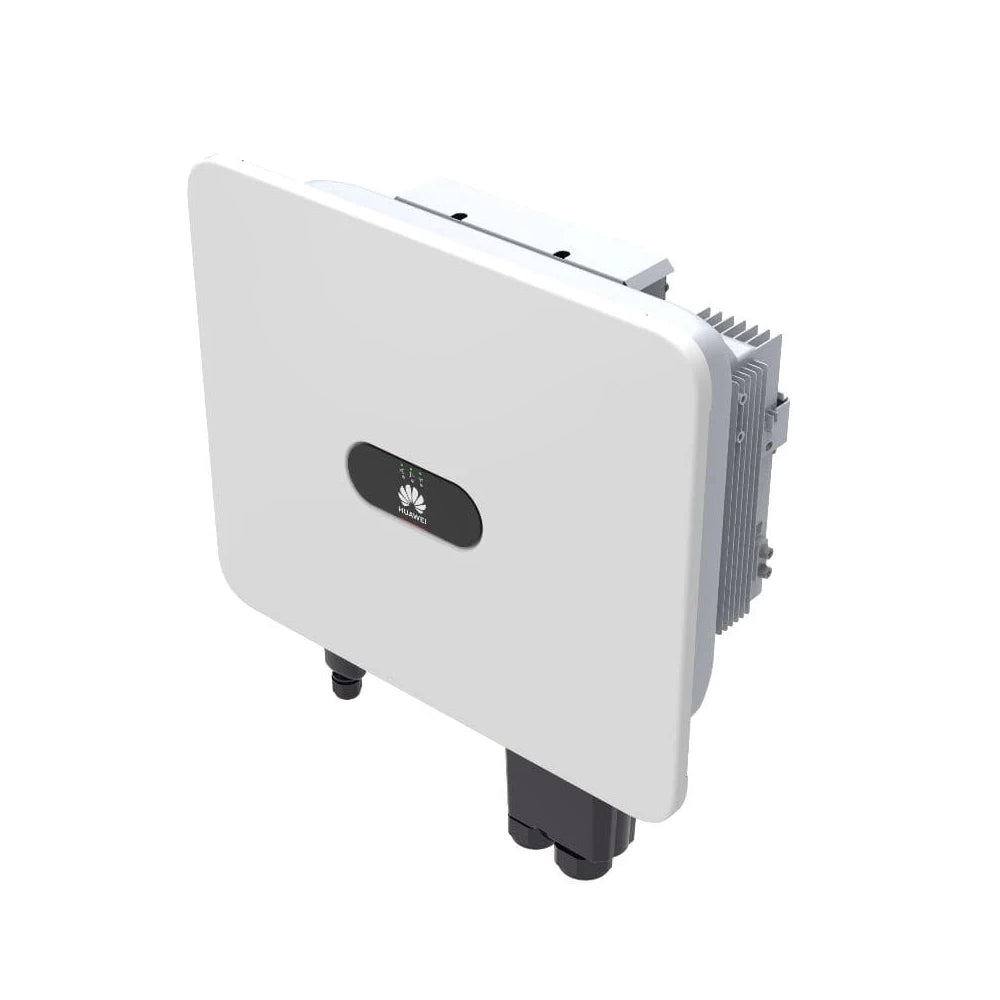

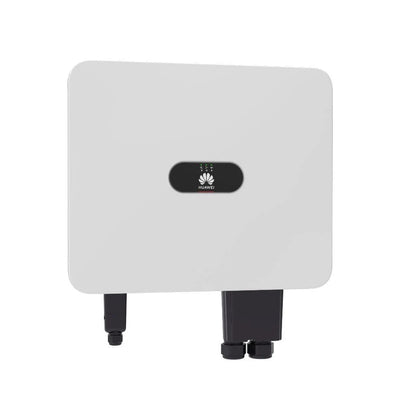

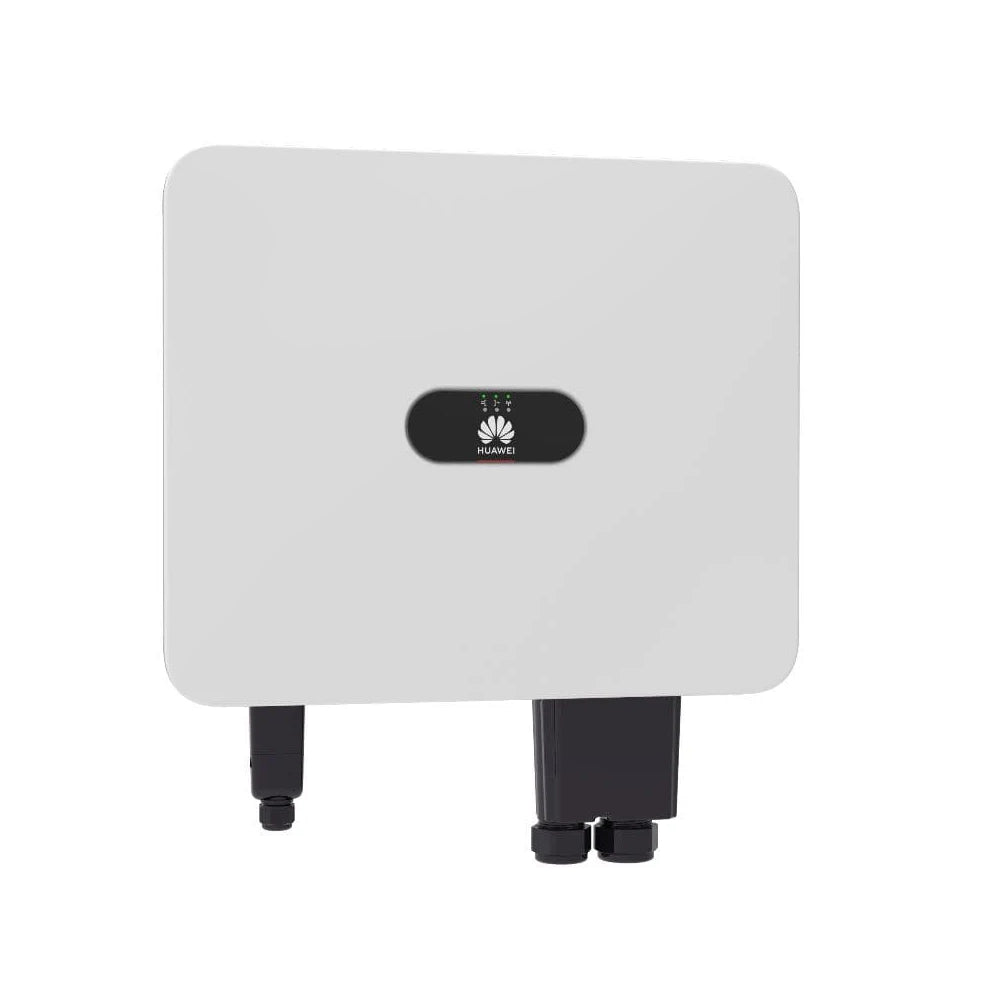

Huawei | High Current Inverter | SUN2000-12KTL-M5

Technical details
Gross weight – 35.00 kg
Net weight – 30.00 kg
Producer – Huawei
Product name – SUN2000-12KTL-M5
Type – High Current Inverter
Grid connection – Three-phase
Max. PV input power (DC) – 18 000 Wp
Nominal output power (AC) – 12 000 W (12 kW)
Max. efficiency – 98.4%
Euro efficiency – 97.9%
Number of MPPT – 2

Description
Huawei SUN2000-12KTL-M5 is a high-efficiency three-phase solar inverter designed for modern high-current photovoltaic systems. It provides up to 12 kW AC output power, supports PV arrays up to 18 kWp, and ensures maximum energy production with its 98.4% maximum efficiency.
Reliable, durable and compatible with the Huawei FusionSolar monitoring app, this inverter is ideal for both residential and commercial solar installations.

Key features
High-efficiency three-phase inverter for residential and commercial solar systems.
Supports modern high-current PV panels up to 18 kWp.
Very high efficiency ensures maximum energy production.
2 MPPT trackers for flexible and optimized panel configuration.
Smart cooling system ensures quiet and stable operation.
Compatible with Huawei FusionSolar monitoring app.
Durable and reliable construction for long-term performance.

Other features
High current input – Yes
Monitoring via app – Yes
Smart cooling – Yes
Embedded battery – No
Digital protection & safety features – Yes

Design
Modern compact housing
Wall-mounted installation
Durable construction for indoor and outdoor environments

Power
Max. PV input – 18 kWp
AC output – 12 kW
Three-phase connection – Yes

Packaging data
Packing quantity – 1 pc
Gross size (L × W × H) – 52.5 × 47 × 26.2 cm

Package features
WEEE tax – Yes
Volume – 0.06 m³

Warranty - 96 month(s)
