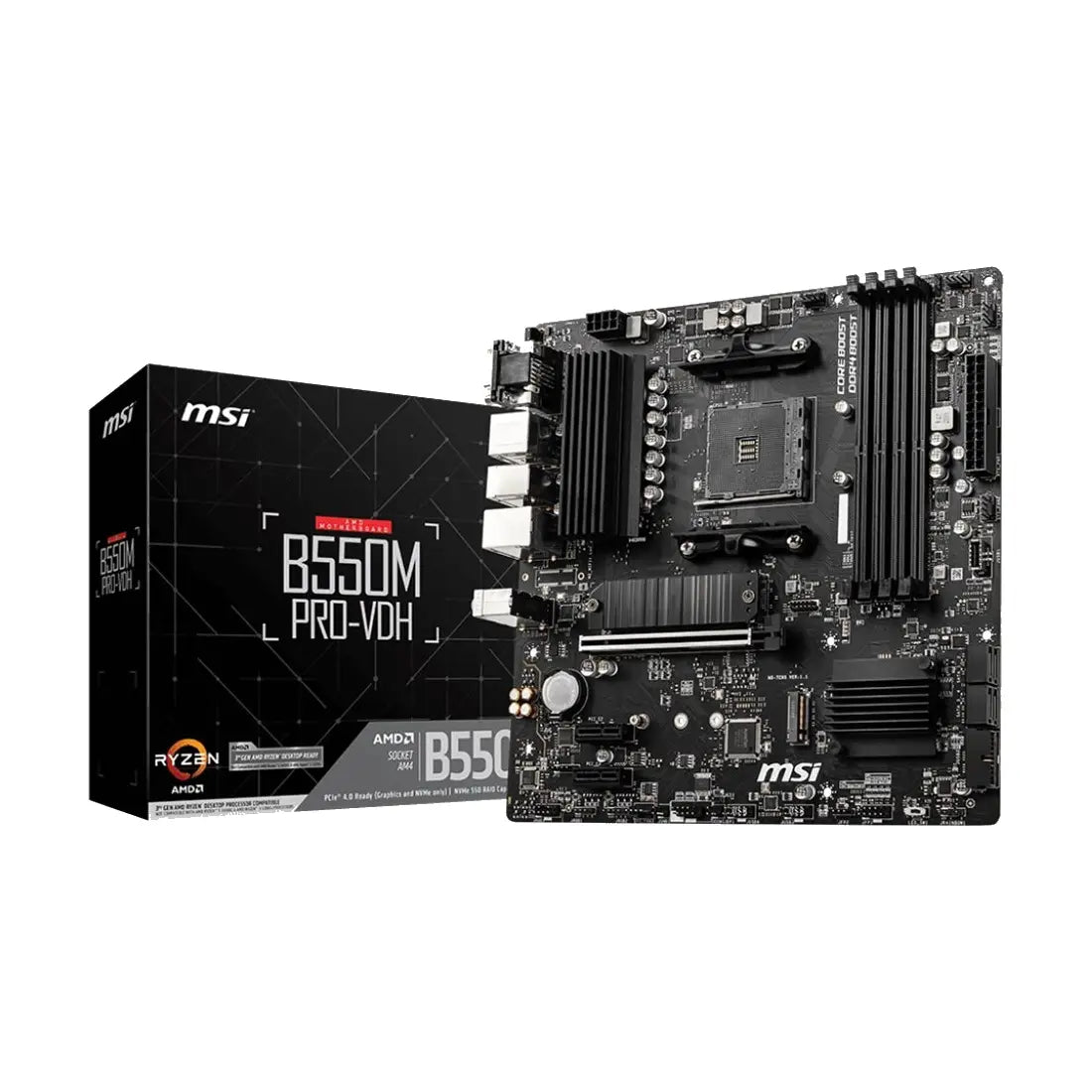

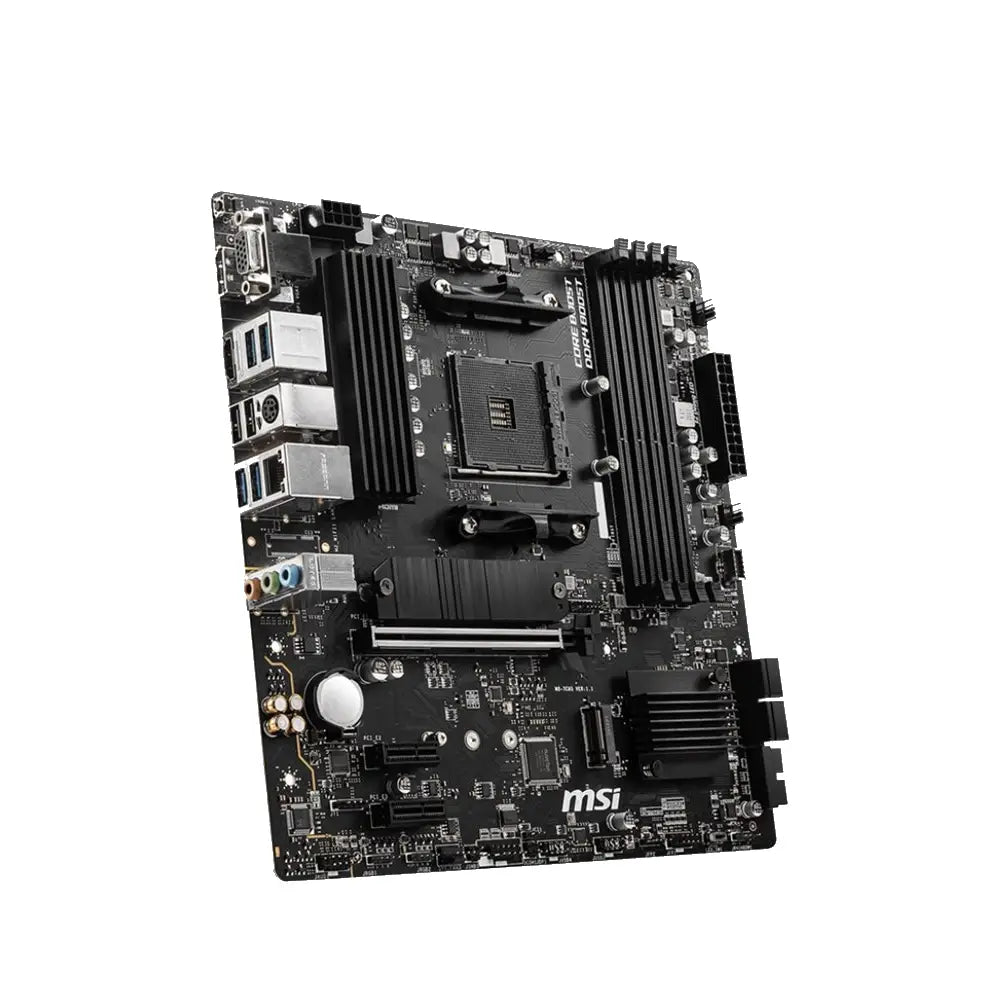

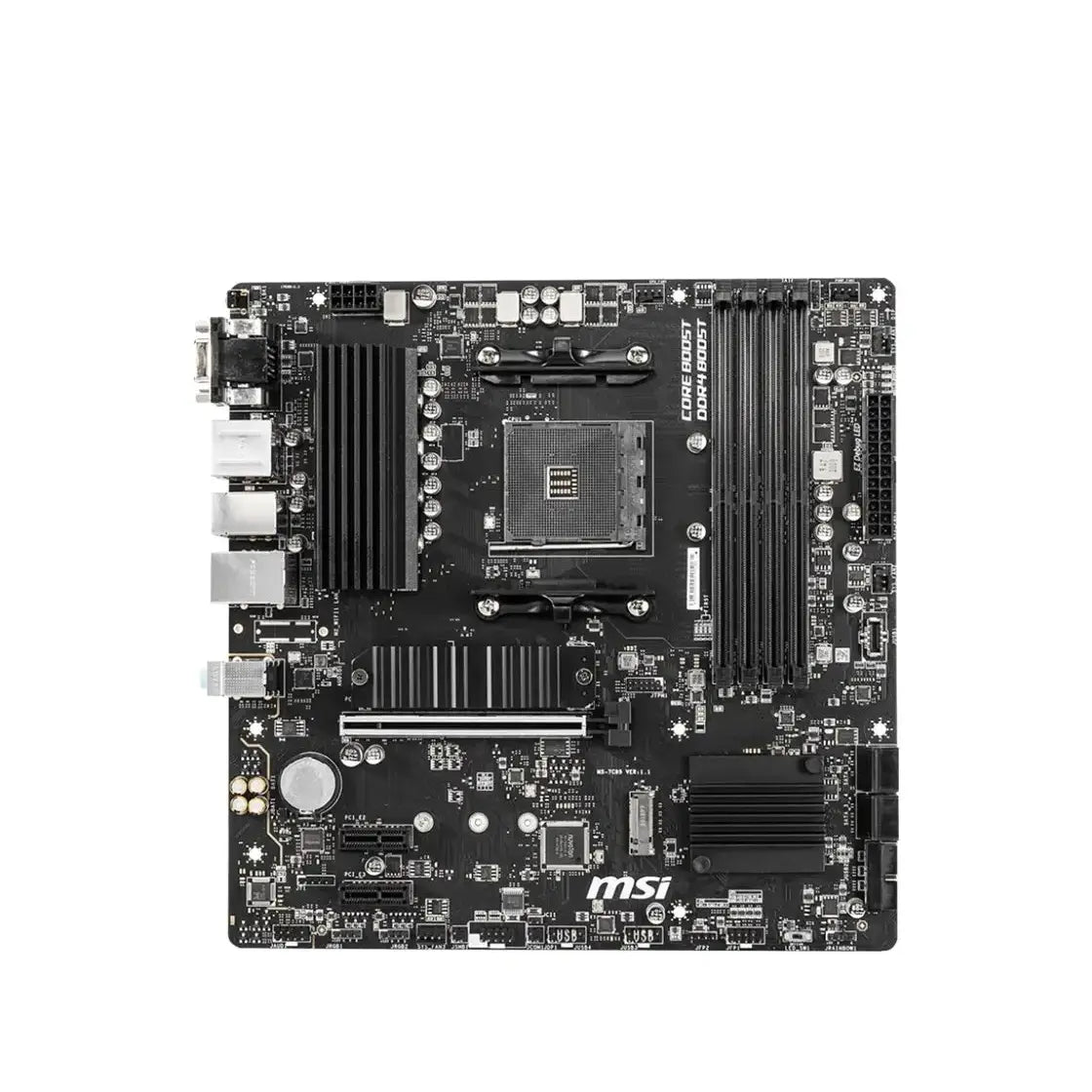

MSI | B550M PRO-VDH | Processor Socket Socket AM4 | Chipset Type AMD B550

Technical details
Producer - MSI
Manufacturer - MSI
Brand - MSI
Product Line - MSI
Model - B550M PRO-VDH

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - AMD B550
Supported RAM Technology - DDR4 SDRAM
Processor Socket - Socket AM4
Form Factor - Micro ATX
Compatible Processors - Ryzen
Supported RAM Integrity Check - Non-ECC, ECC
Supported RAM Speed - 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card

Networking
Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet

Dimensions
Width - 24.4 cm
Depth - 24.4 cm

Miscellaneous
Product Type - Motherboard

Interfaces
Storage - Serial ATA-600 (RAID), M.2 socket
USB / FireWire - USB-C Gen1, USB 3.2 Gen 1

RAM
Max Supported Size - 128 GB

Package features
Type of battery - Accumulator
Embeeded battery – Yes

Warranty - 36 month(s)
