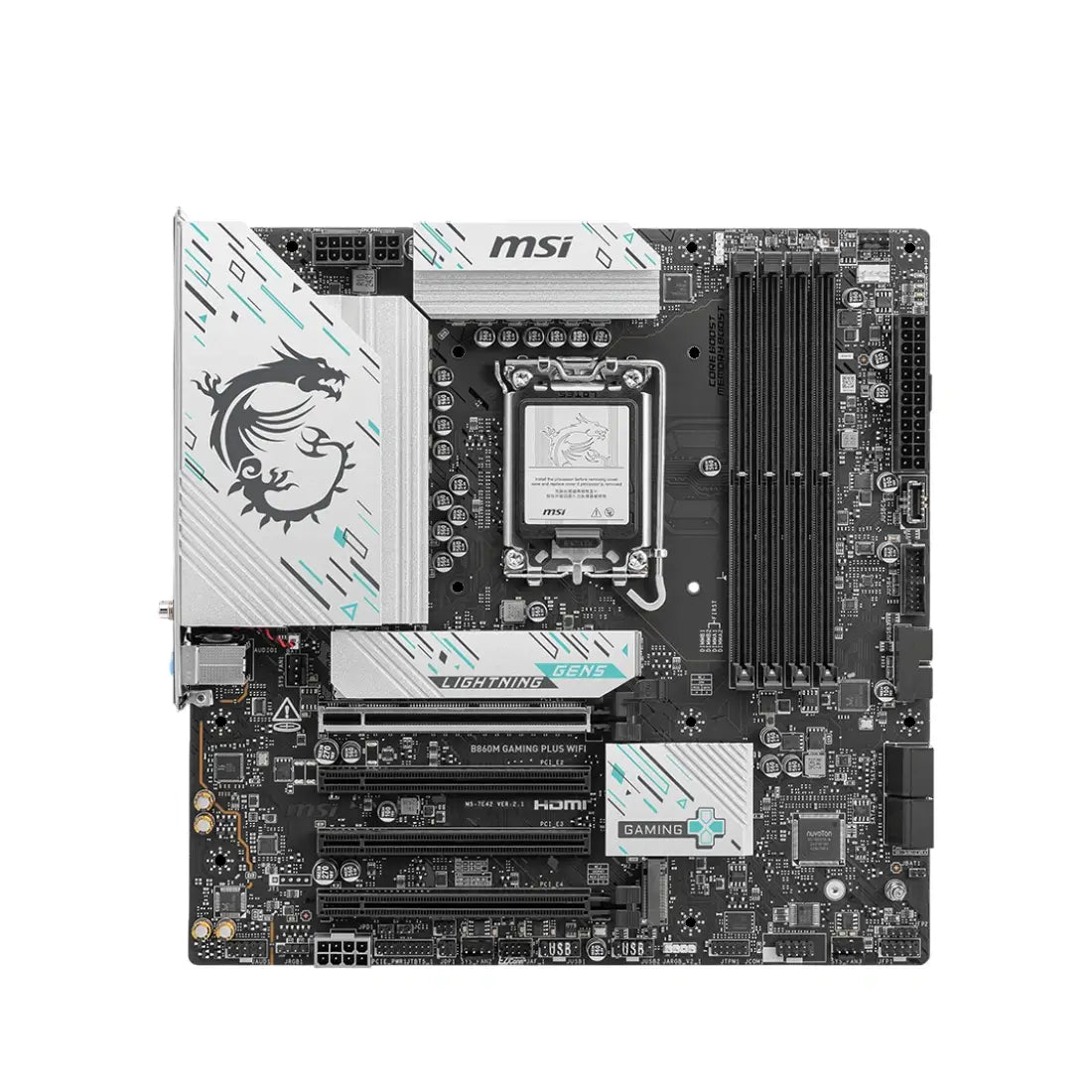

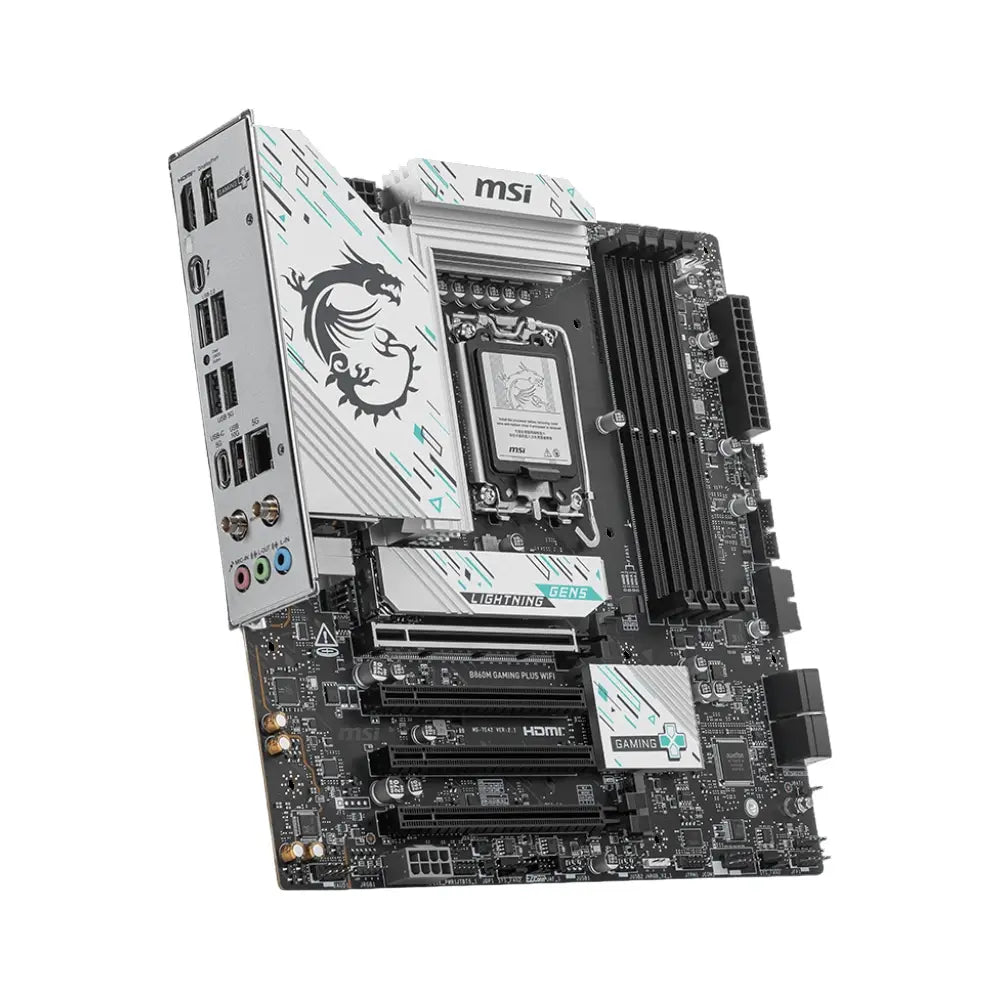

MSI | B860M GAMING PLUS WIFI | Processor Socket LGA1851 Socket | Chipset Type Intel B860

Technical details
Producer - MSI
Brand - MSI
Product Line - MSI
Model - B860M GAMING PLUS WIFI
Product Type - Motherboard
Manufacturer - MSI

Processor
Installed Qty - 0
Max Supported Qty - 1

Mainboard
Chipset Type - Intel B860
Supported RAM Technology - DDR5 SDRAM
Processor Socket - LGA1851 Socket
Form Factor - Micro-ATX
Supported RAM Integrity Check - Non-ECC
Supported RAM Speed - 8800+(O.C.), 8600(O.C.), 8400(O.C.), 8200(O.C.), 8000(O.C.), 7800(O.C.), 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(JEDEC), 5600(JEDEC), 4800(JEDEC)
Supported RAM (Registered or Buffered) - Unbuffered

Video Output
Type - Graphics adapter (CPU required)

Audio Output
Type - Sound card (Realtek Audio Codec)

Networking
Data Link Protocol - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth 5.4

Dimensions
Width - 24.38 cm
Depth - 24.38 cm

Interfaces
Storage - 4 x Serial ATA-600, 3 x M.2 slot (Key M)

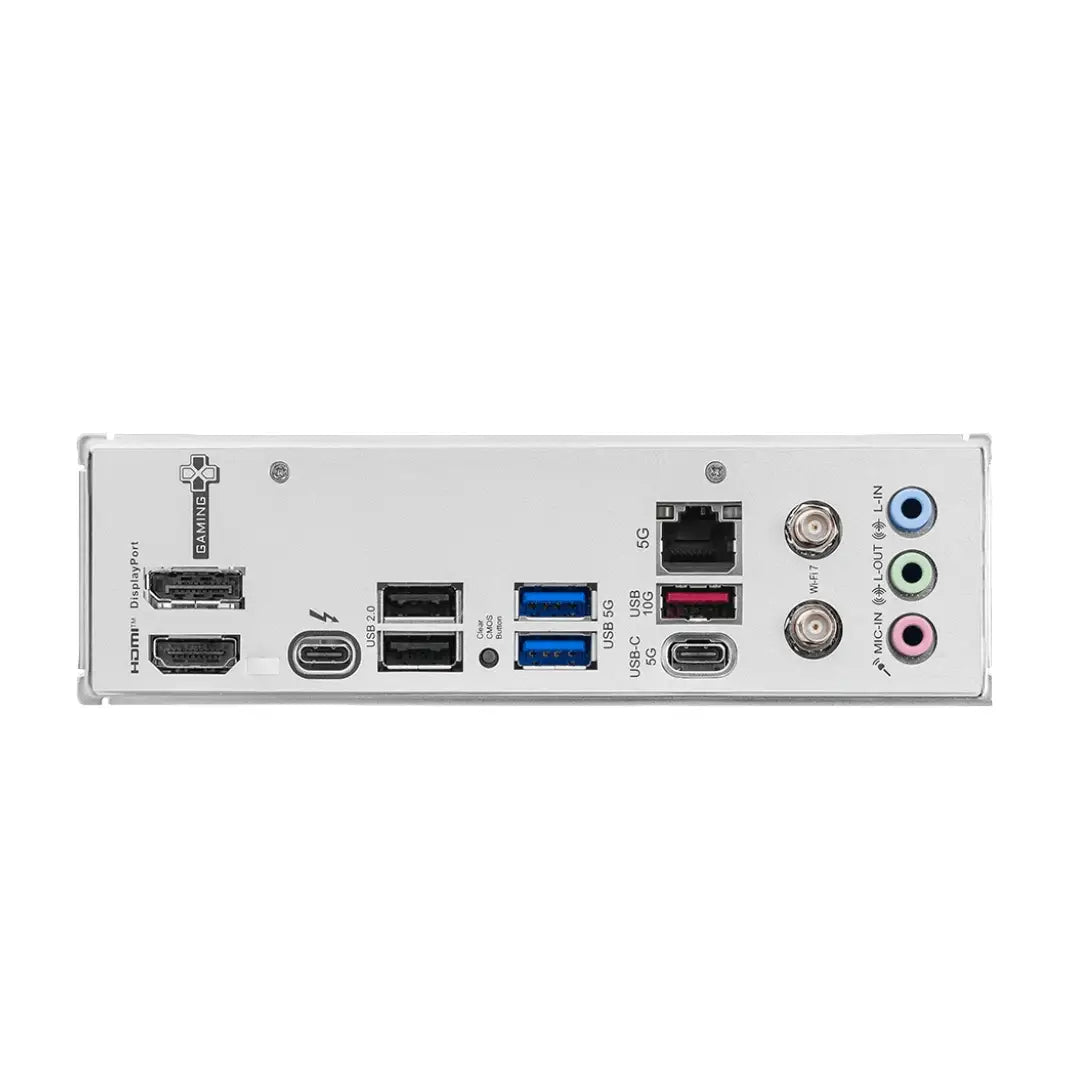

USB / FireWire - Thunderbolt 4 (Type-C), USB 10Gbps, USB 5Gbps, USB 2.0
RAM
Max Supported Size - 256 GB

Package features
Type of battery - Accumulator
Embedded battery – Yes

Warranty - 36 month(s)
