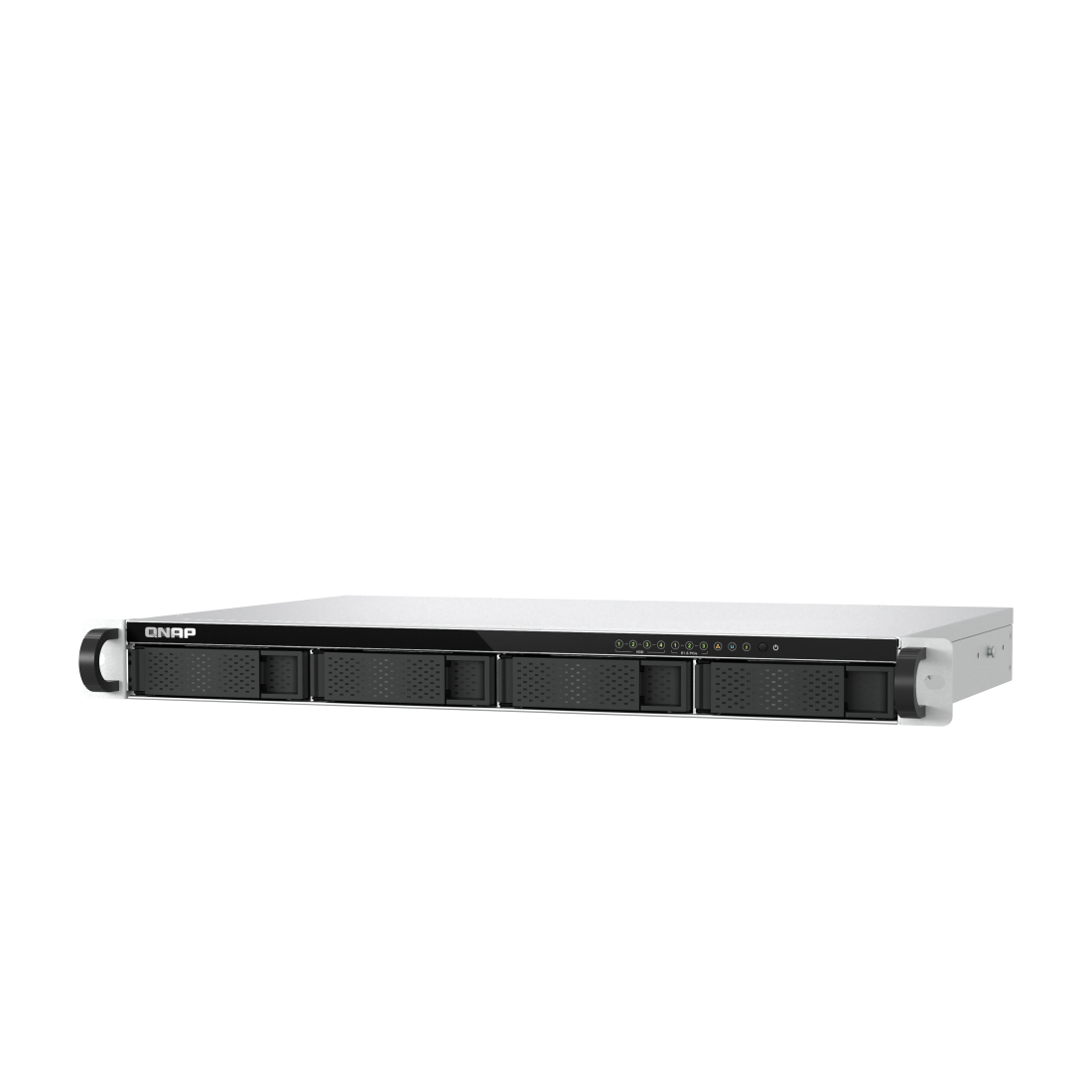

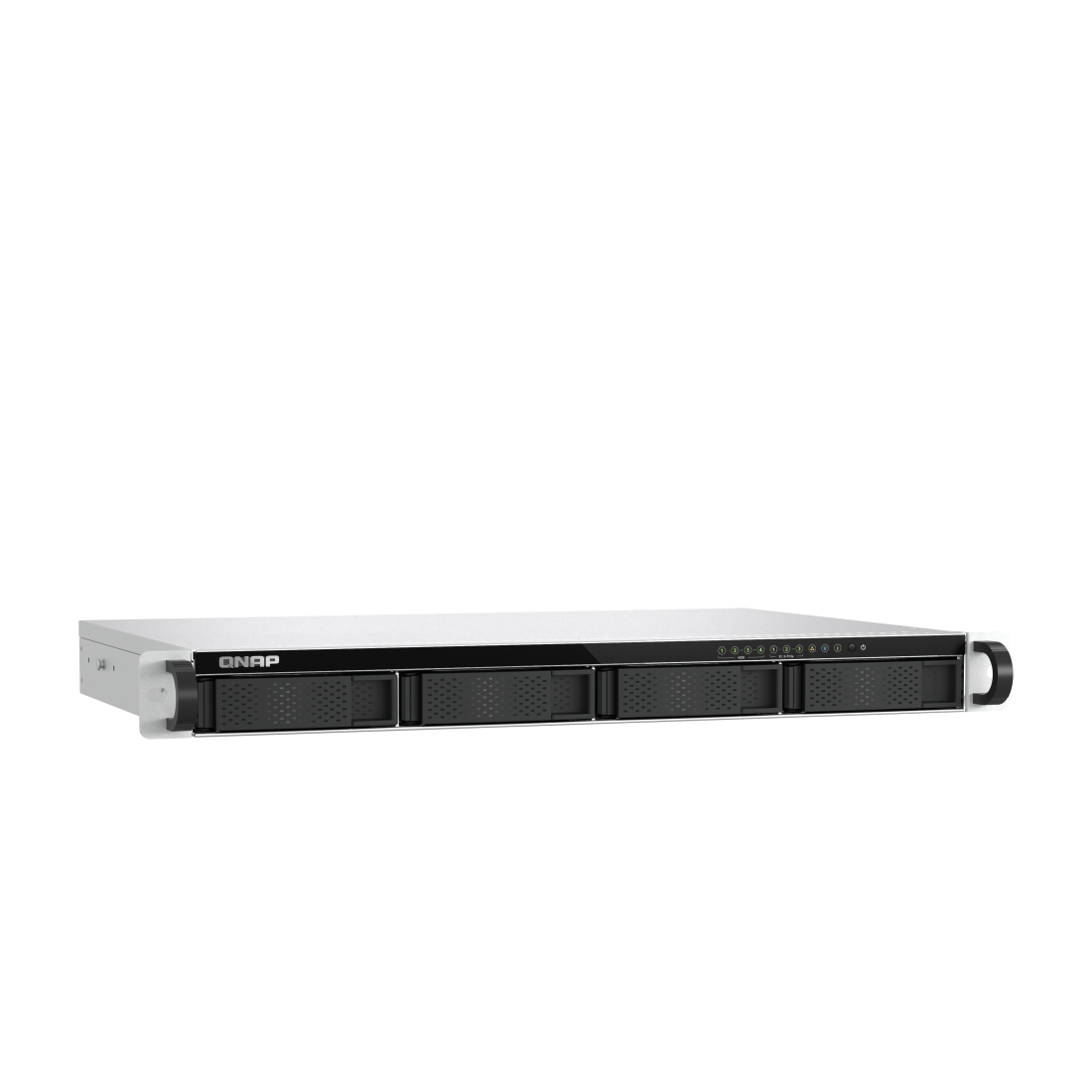

QNAP | TS-h765eU-8G | 1U Short-Depth Rackmount NAS | Intel Atom x7405C | 8 GB DDR5 | 4-Bay SATA + 3 E1.S | 2.5GbE

Technical Details
Producer - QNAP
Product Type - Network Attached Storage (NAS)
MPN - TS-h765eU-8G
Form Factor - 1U Short-Depth Rackmount
Processor - Intel Atom x7405C
Processor Cores - 4
Processor Frequency - Up to 3.4 GHz
Memory - 8 GB DDR5 SODIMM
Memory Type - In-Band ECC
Maximum Memory - 16 GB
Memory Slots - 1
Flash Memory - 8 GB
Operating System - QuTS hero

Storage
SATA Drive Bays - 4 × 3.5" SATA
Additional SSD Slots - 3 × E1.S, up to 15 mm
M.2 Compatibility - M.2 2280 NVMe SSDs via included adapters
Drive Compatibility - 3.5" SATA HDD, 2.5" SATA SSD, E1.S NVMe SSD, M.2 2280 NVMe SSD
Hot-Swappable Drives - Supported
SSD Cache Acceleration - Supported
Drives Included - No

Connectivity / Interfaces
LAN - 2 × 2.5 Gigabit Ethernet RJ-45
USB - 1 × USB 3.2 Gen 2 Type-A (10 Gbps)
USB - 1 × USB 2.0
10GbE - Optional, via compatible expansion card
Wake on LAN - Supported

Features
Network Storage and File Sharing
Centralised Data Backup and Synchronisation
ZFS-Based QuTS hero Operating System
SSD Cache Acceleration
Hardware Encryption - AES-NI
Hot-Swappable SATA Drive Bays
Rackmount Installation
Data Protection and Snapshot Support

Cooling
System Fans - 3 × 40 mm

Power
Power Supply - 150 W
Input Voltage - 100-240 V AC
Input Frequency - 50-60 Hz

Dimensions & Weight
Dimensions - 43 × 430 × 292.1 mm (H × W × D)
Net Weight - 4.51 kg

Warranty - 36 months
