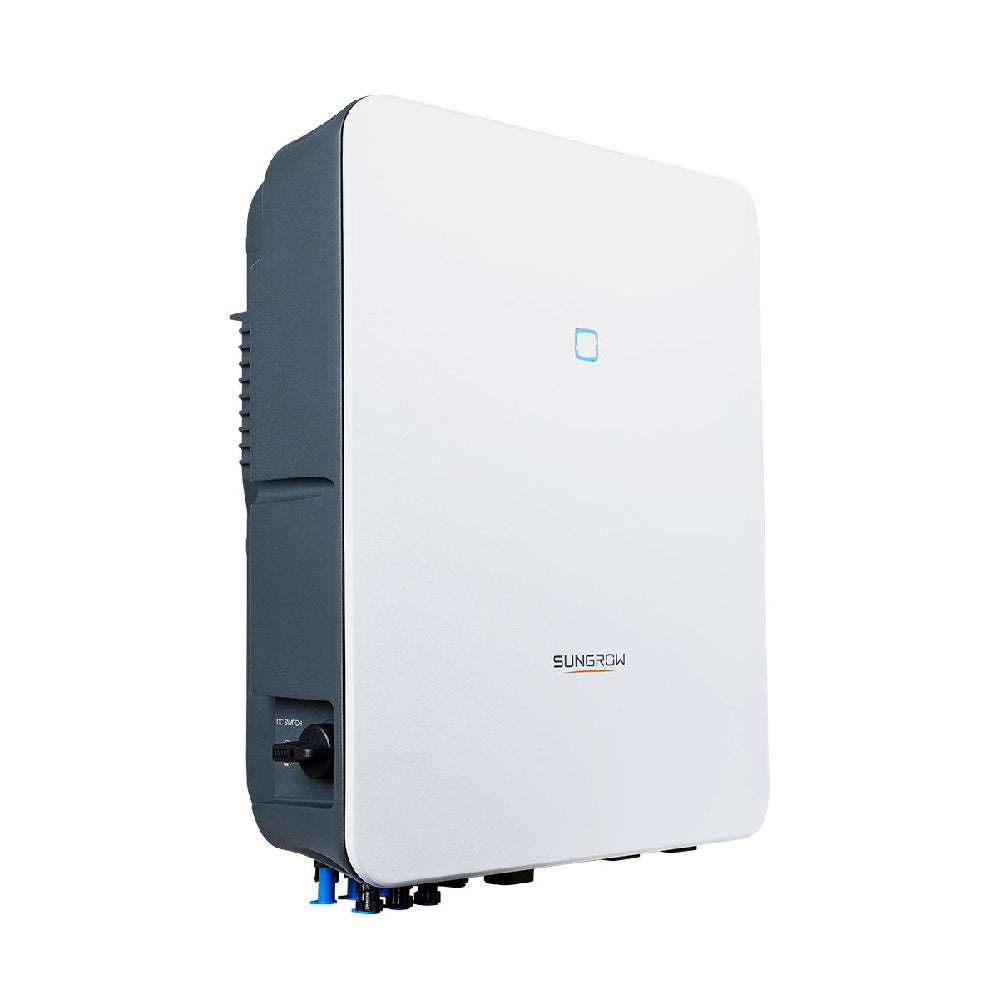

SUNGROW Inverter Hybrid SH10RT-20-V11_S 10kW 2MPPT + DTSU666-20 Smart Meter with 3x100A CT clamps | ASH00132

Technical details
Producer - SUNGROW
Model - SH10RT-20 (V11_S)
MPN - ASH00132
EAN - 2000001321294
Product Line - Residential Hybrid
Product Type - Three-Phase Hybrid Inverter

Performance
Nominal output Power (AC) - 10000 W (10 kW)
Max. PV input Power (DC) - 15000 Wp
Max. PV input voltage - 1000 V
Number of MPPTs - 2
Max. Efficiency - 98.4%
Euro Efficiency - 97.9%
Grid connection - Three-phase

Features

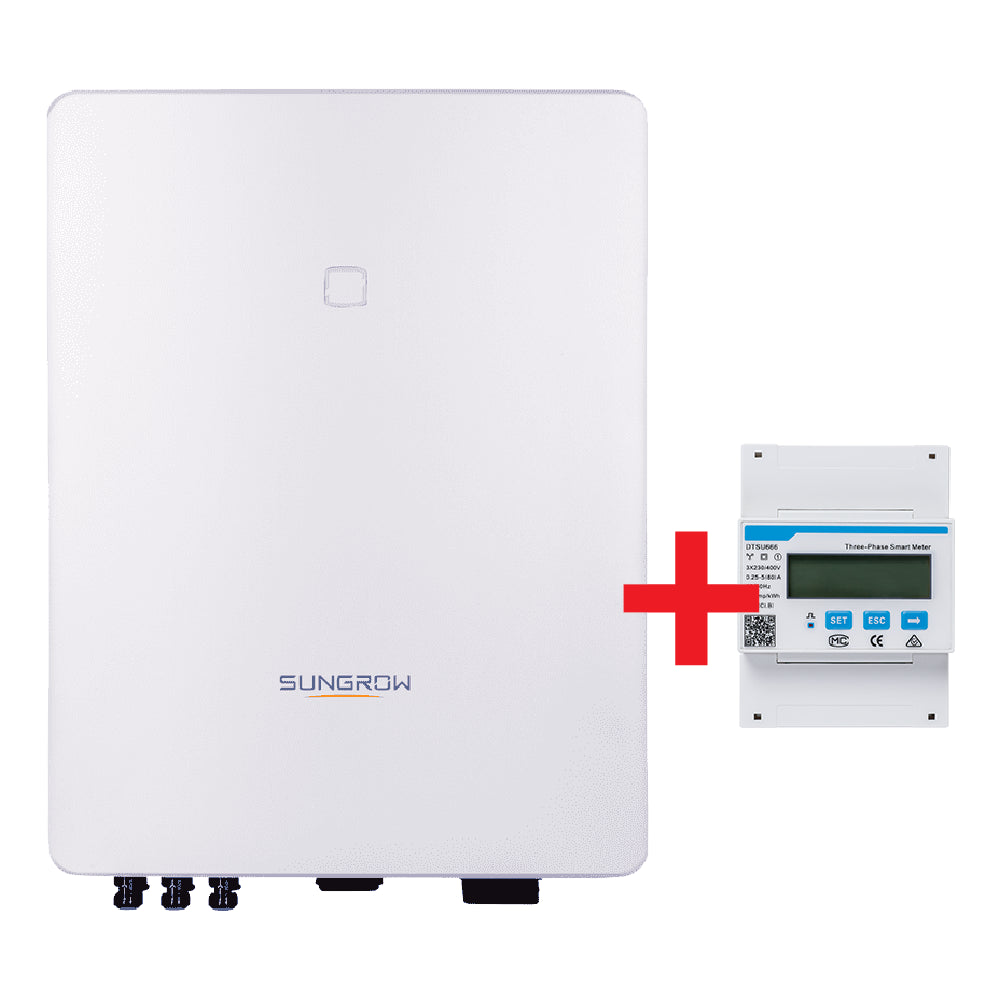

Included - Smart Meter DTSU666-20 with 3x100A CT clamps
Battery Support - Compatible with SUNGROW SBR and other HV batteries
Backup Power - Integrated EPS (Emergency Power Supply) functionality
Protection - IP65, DC/AC Type II SPD, AFCI 2.0
Ease of Install - Plug-and-play connectors, WiNet-S module included

Dimensions & Weight
Product dimensions - 54.0 x 46.0 x 17.0 cm
Weight (device) - 27.0 kg

Shipping Box
Dimensions - 80 x 60 x 27 cm
Weight (kit) - 28.5 kg
