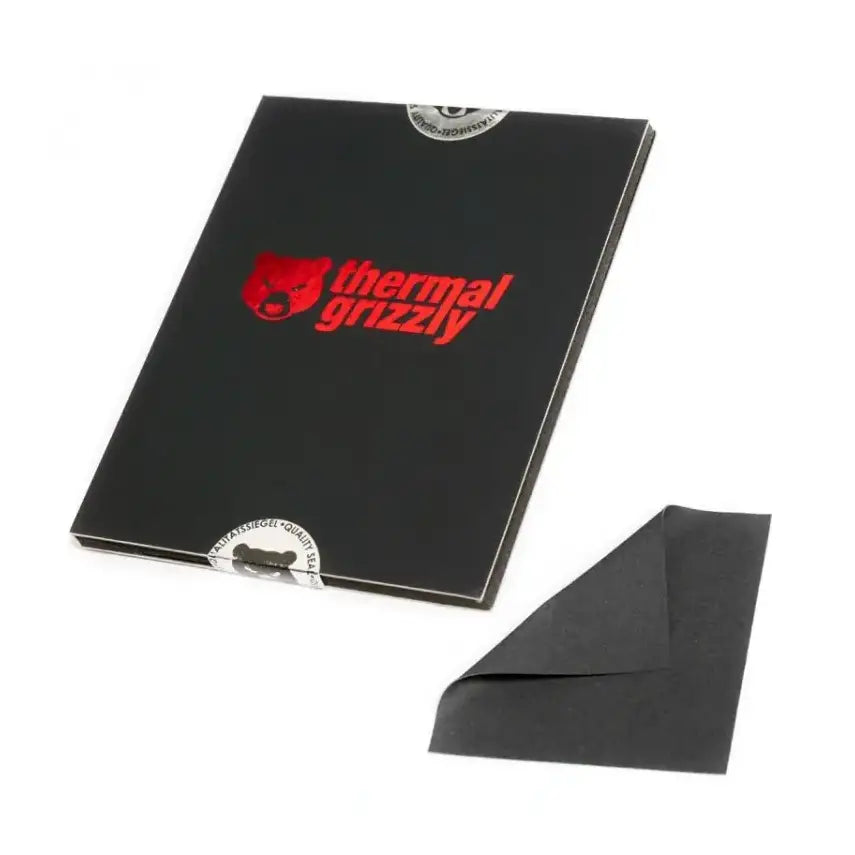

Thermal Grizzly | Carbonaut 32 x 32 x 0,2 mm | TG-CA-32-32-02-R

Technical details
Producer - Thermal Grizzly
Brand - Thermal Grizzly
Product Line - Carbonaut
Model - TG-CA-32-32-02-R
Product Type - Carbon thermal pad

Performance features
Thermal Conductivity - 62.5 W/mK
Electrical Conductivity - Yes (Electrically conductive)
Operating Temperature - -250 °C / +150 °C
Long-term Stability - Yes (Reusable, never dries out, elastic polymer-carbon structure)

Features
High thermal conductivity via carbon fiber technology
Flexible and elastic structure ensures excellent contact even under low pressure
Reusable solution that does not age, degrade, or dry out over time
Eliminates the pump-out effect completely
Electrically conductive material requiring careful installation away from open contacts

Design
Colour - Anthracite (Dark Grey)
Material - Carbon / Polymer matrix

Dimensions & Weight
Width - 3.2 cm
Depth - 0.02 cm
Height - 3.2 cm
Net weight - 0.001 kg
Gross weight - 0.020 kg

Warranty - 24 month(s)
