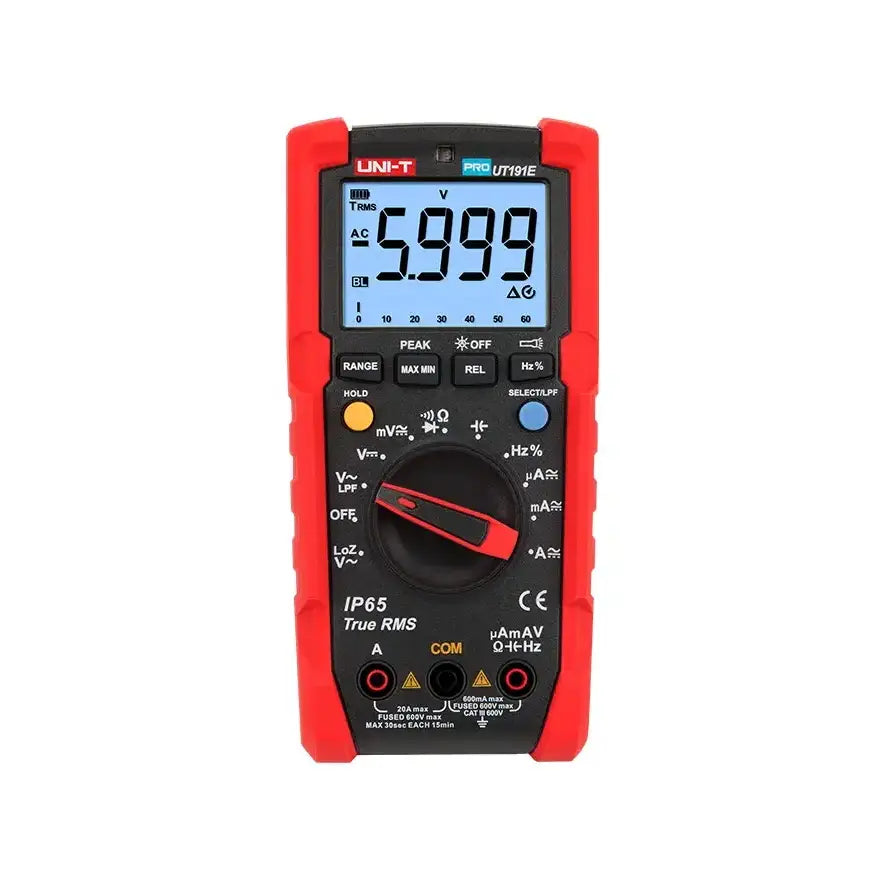

UNI-T | Professional Digital Multimeter | UT191E | 2 m | Red / Grey

Technical Details
Producer – UNI-TREND
Brand – UNI-T
Product Line – UNI-T Professional Digital Multimeters
Model – UT191E
EAN - 6935750519103
Product type – Digital Multimeter
Manufacturer – UNI-TREND

Input Device & Performance
Measurement Type – AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, Continuity, LoZ ACV, Peak Hold
DC Voltage Range – 600mV, 6000mV, 60V, 600V
AC Voltage Range – 600mV, 6000mV, 60V, 600V (True RMS)
DC Current Range – 600µA, 6000µA, 60mA, 600mA, 6A, 20A
AC Current Range – 600µA, 6000µA, 60mA, 600mA, 6A, 20A (True RMS)
Resistance Range – 600 Ohm, 6000 Ohm, 60 kOhm, 600 kOhm, 6 MOhm, 60 MOhm
Capacitance Range – 60nF ~ 60mF
Frequency Range – 10Hz ~ 1MHz

System Requirements & Protection
IP Rating – IP65 (Water and Dust Proof)
Safety Rating – CAT III 600V
Drop Test – 2 meters

Design
Display Type – Large LCD Display with Auto Backlight (6000 count, 31-segment analog bar graph)
Colour – Red / Grey
Special Features – Flashlight, GS Certification, Data Hold, Max/Min, Auto/Manual Range

Dimensions
Width – 5.3 cm
Depth – 8.2 cm
Height – 18.0 cm
Net weight – 0.44 kg
Gross weight – 0.72 kg

Warranty – 24 month(s)
