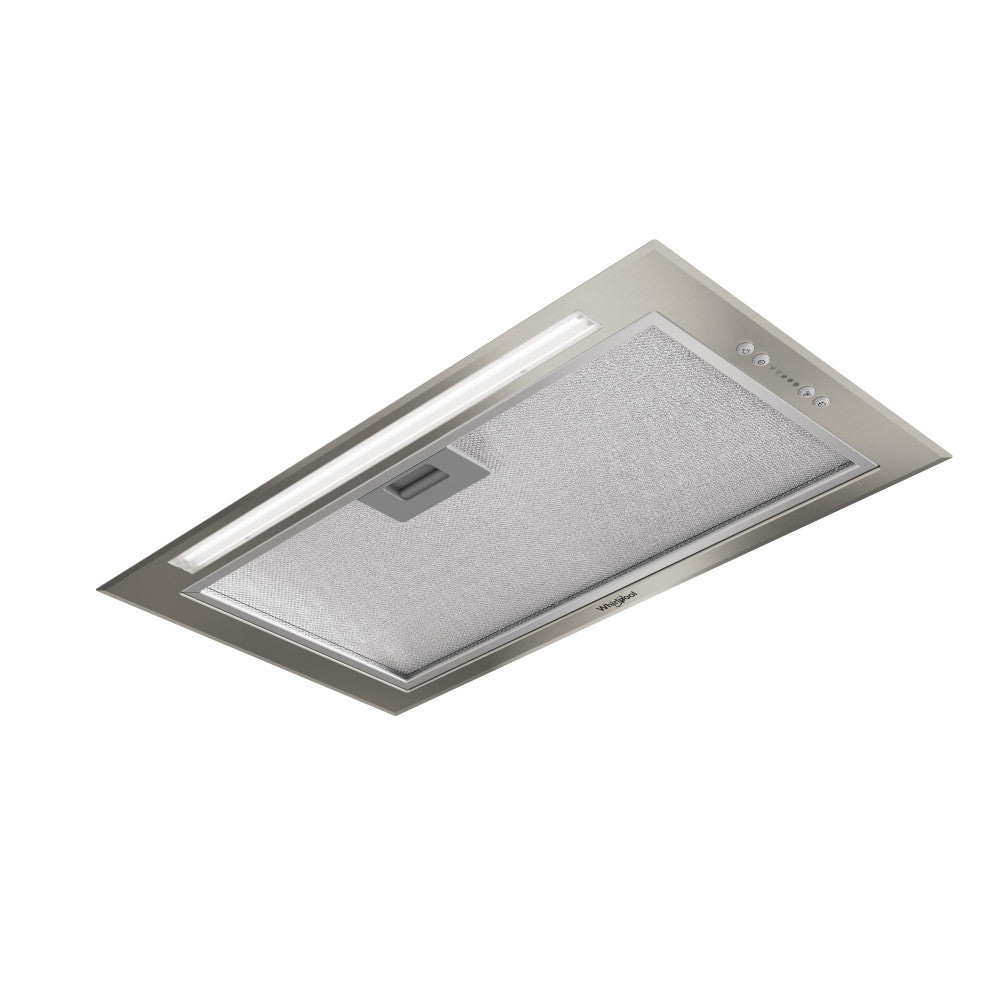

Whirlpool | WCTH 63F LEB X | Built-in Hood | 730 m³/h | 4 Speeds + Boost | Electronic Control | Stainless Steel

Technical details
Producer – Whirlpool
Product type – Built-in Hood
Product line – Whirlpool
Model – WCTH 63F LEB X

Design
Colour – Stainless Steel
Body material – Stainless steel
Installation type – Built-in
Hood type – Built-in / Under-cabinet

Performance
Maximum extraction rate – 600 m³/h
Boost extraction rate – 730 m³/h
Maximum recirculation rate – 420 m³/h
Boost recirculation rate – 435 m³/h
Number of motors – 1
Motor power – 250 W
Number of speed settings – 4
Boost function – Yes

Operation
Extraction – Yes
Recirculation – Yes
Convertible operation – Yes

Filtration
Grease filter – Washable aluminium
Odour filter – Yes
Grease filter included – Yes
Carbon filter – Included

Controls
Control type – Electronic
Control elements – Backlit soft-touch buttons
Timer – No

Lighting
Light type – Strip LED
Number of lights – 1
Lighting power – 7 W
Lighting efficiency class – A

Energy Efficiency
Energy efficiency class – B
Fluid dynamic efficiency class – A
Fluid dynamic efficiency – 28.5
Grease filtering efficiency class – C
Grease filtering efficiency – 75.1%
Annual energy consumption – 66.4 kWh/year
Off-mode power consumption – 0 W
Standby power consumption – 0.49 W

Noise
Minimum noise level – 52 dB(A)
Maximum noise level – 65 dB(A)
Boost noise level – 69 dB(A)

Power
Connected load – 257 W
Voltage – 220–240 V
Frequency – 50/60 Hz
Current – 1.12 A
Power cord length – 1.5 m
Plug type – Schuko

Installation
Outlet diameter – 150 mm

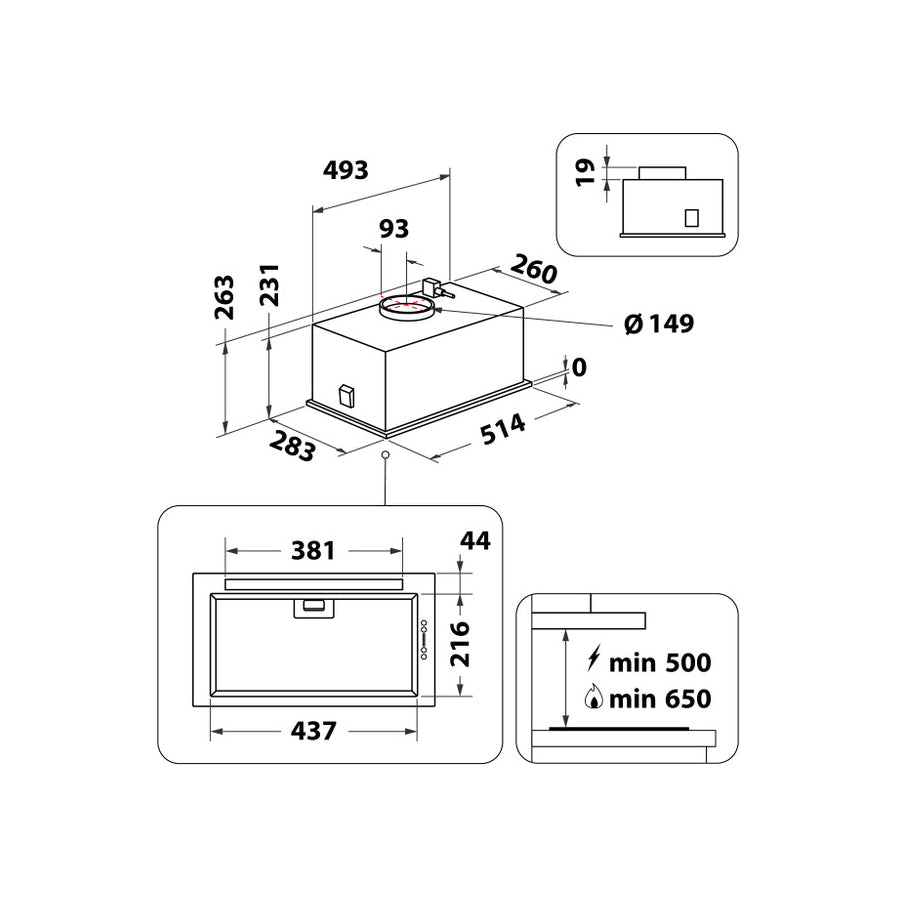

Dimensions & Weight
Width – 51.4 cm
Depth – 28.3 cm
Height – 25.1 cm
Height without chimney – 23.1 cm
Net weight – 7.3 kg

Warranty – 24 month(s)
