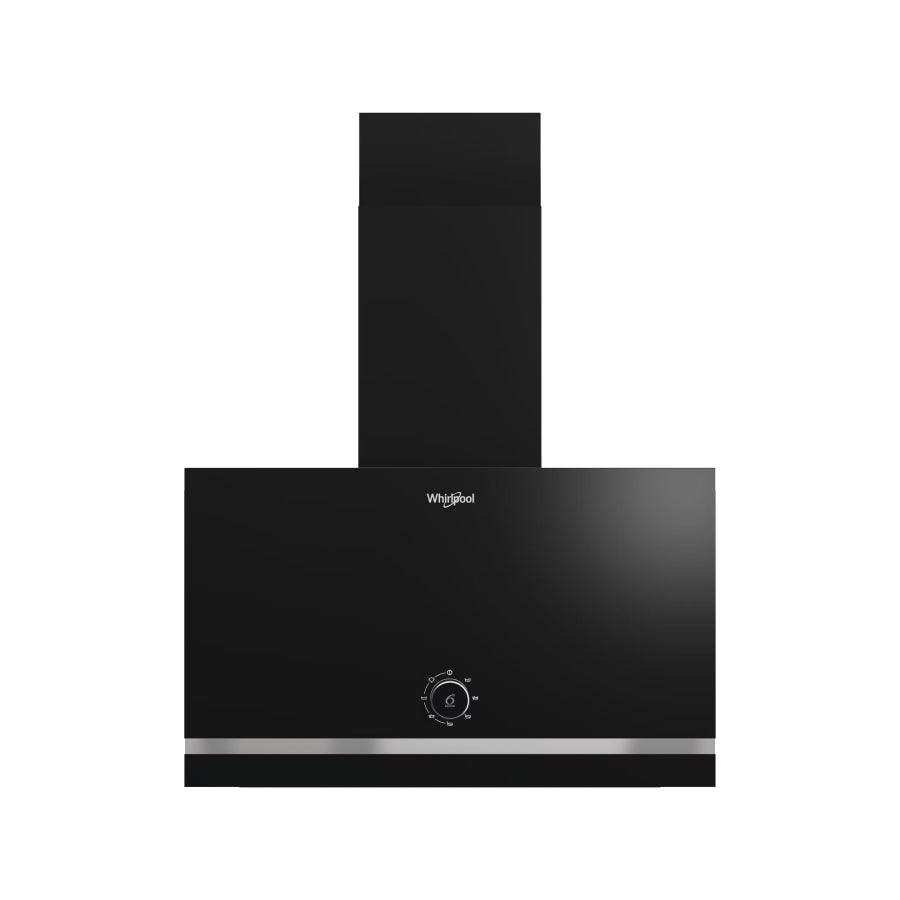

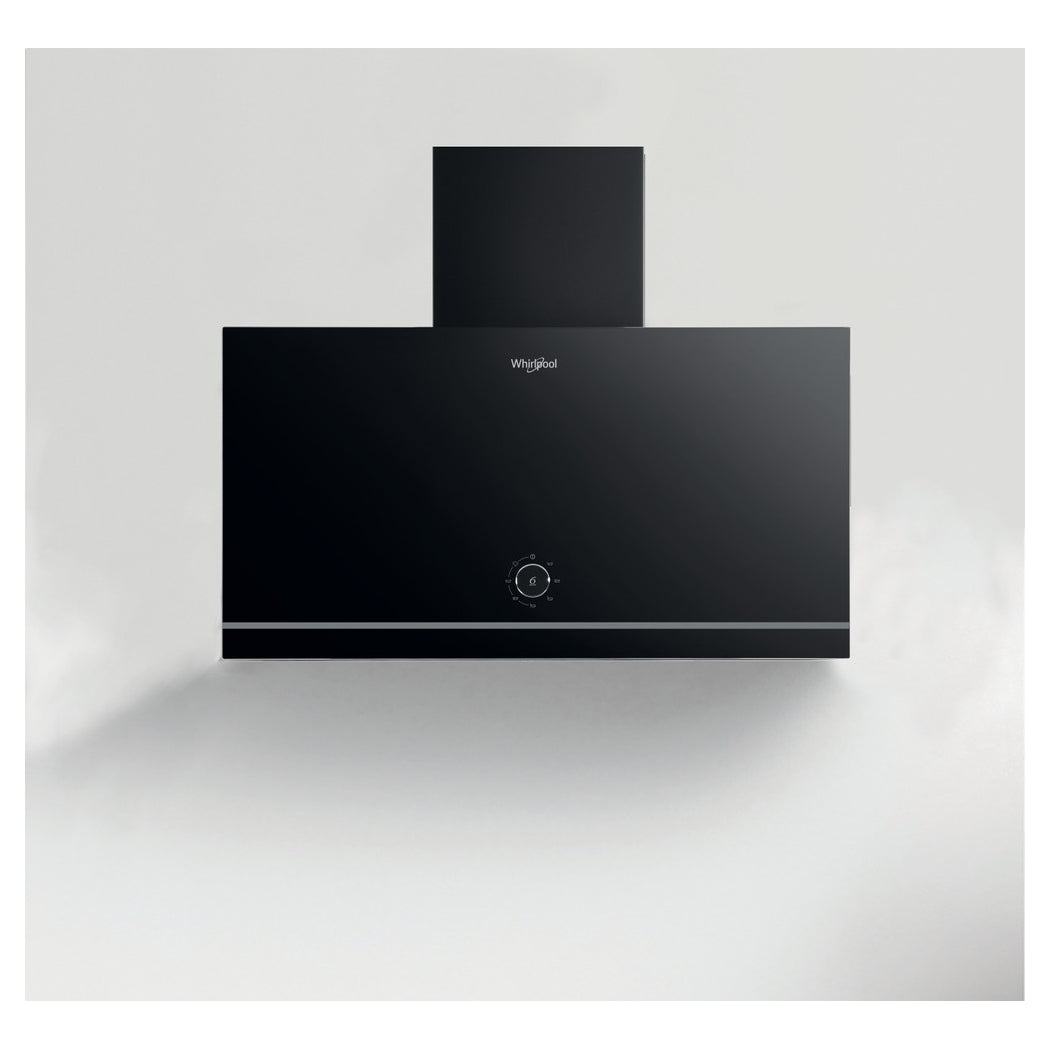

Whirlpool | WHVA 62F LM K | Angled Chimney Hood | 485 m³/h | 3 Speeds | LED | Black

Technical details
Producer – Whirlpool
Product type – Angled Chimney Hood
Product line – Whirlpool
Model – WHVA 62F LM K
EAN – 8003437627590
12NC – 859991639320

Design
Colour – Black
Body material – Metal / Glass
Chimney material – Metal
Hood type – Angled Chimney
Installation type – Wall-mounted

Performance
Maximum extraction rate – 485 m³/h
Maximum recirculation rate – 490 m³/h
Number of motors – 1
Motor power – 230 W
Number of speed settings – 3
Boost function – No

Operation
Extraction – Yes
Recirculation – Yes
Operating mode – Convertible

Filtration
Grease filter material – Washable stainless steel
Odour filter – Yes
Grease filter – Included

Controls
Control type – Mechanical
Control device – Monoknob

Lighting
Light type – LED strip
Number of lights – 1
Lighting power – 3 W
Lighting control – On/Off

Energy Efficiency
Energy efficiency class – A
Fluid dynamic efficiency class – B
Fluid dynamic efficiency – 27.8
Lighting efficiency class – B
Lighting efficiency – 20.1 lux/W
Grease filtering efficiency class – E
Grease filtering efficiency – 55%
Annual energy consumption – 41 kWh/year
Power consumption off-mode – 0 W
Power consumption standby mode – 0.49 W

Noise
Minimum noise level – 51 dB(A)
Maximum noise level – 65 dB(A)

Power
Connected load – 233 W
Voltage – 220–240 V
Frequency – 50 Hz
Current – 1 A
Power cord length – 1.5 m
Plug type – Schuko

Installation
Air outlet diameter – 150 mm
Non-return flap – Yes

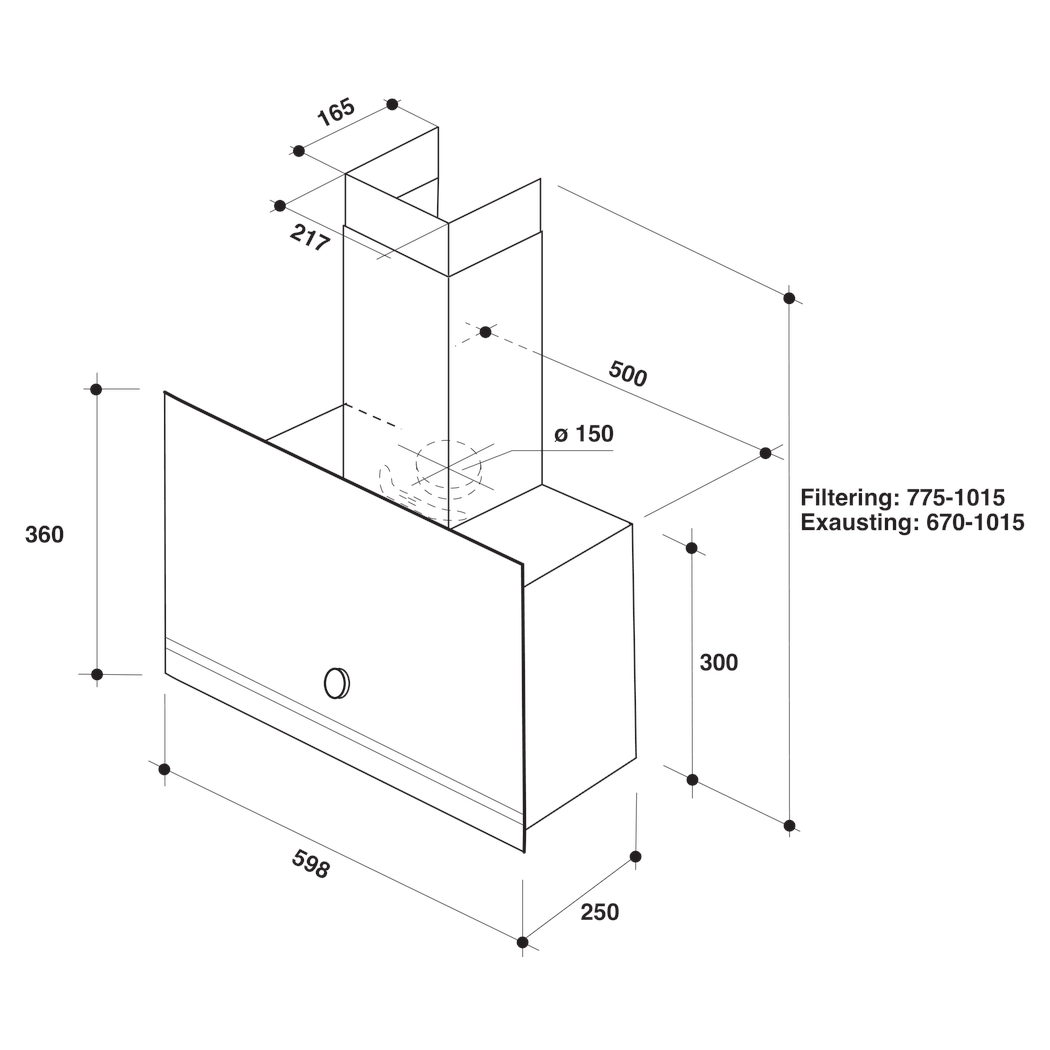

Dimensions & Weight
Width – 59.8 cm
Depth – 25 cm
Height – 77.5 cm
Height without chimney – 36 cm
Net weight – 13.1 kg

Warranty – 36 month(s)
